UPS , Power Back up and accessories

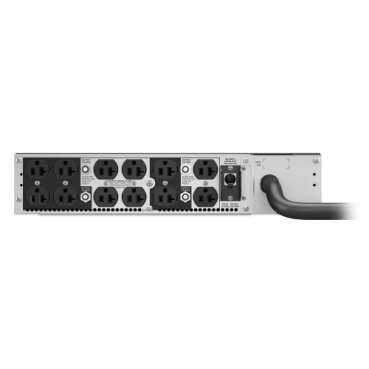

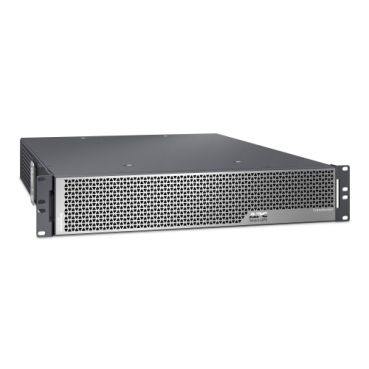

APC Smart-UPS Ultra Step-Down Transformer, 5kVA, rackmount, 2U, 12x NEMA 5-20R outlets
- 2U height stepdown transformer
- Provides 120V output for 208V UPS
- (4) 5-20RĀ outlets
AED8,299.00
The Smart-UPS Ultra SRTL 5kW, 2U rack/tower convertible, Step-Down Transformer lets you connect 120V equipment to your existing SRTL5K power protection. Rackmount or tower installation, install the step-down transformer above the compatible STLR 5kW UPS. 120V connections: 2x (4) 5-20R sockets with a 15A thermal circuit breaker + 2x groups (2) numbers of 5-20R sockets with a 15A thermal circuit breaker
š§¾ Overview
| Attribute | Details |
|---|---|
| Lead Time | Usually in Stock |
| Product Type | Transformer |
| Range of Product | Smart-UPS Ultra |
ā” Power Specifications
| Attribute | Details |
|---|---|
| kW Rating | 5000 W |
| Rated Power (VA) | 5 kVA (5000 VA) |
| Load Capacity | 5000 VA |
| Max Line Current | 24 A |
| Input Current Limit | 30 A |
| Max Total Current Draw | 24 A (per phase) |
š Input Specifications
| Attribute | Details |
|---|---|
| Main Input Voltage | 208 V |
| Input Connection Type | NEMA L6-30P |
| Input Frequency | 50/60 Hz |
| Number of Cables | 1 |
š Output Specifications
| Attribute | Details |
|---|---|
| Main Output Voltage | 120 V |
| Number of Socket Outlets | 12 |
| Outlet Configuration | 12 x NEMA 5-20R |
š§° Included Equipment
| Item |
|---|
| Mounting Hardware |
š¦ Physical Specifications
| Attribute | Details |
|---|---|
| Color | Black |
| Height | 8.35 in (21.2 cm) |
| Width | 23.31 in (59.2 cm) |
| Depth | 30.71 in (78 cm) |
| Net Weight | 101.4 lb (46 kg) |
| Rack Units (U) | 2U |
| Mounting Location | Front |
| Mounting Mode | Rack-mounted |
| Mounting Preference | No preference |
| Mounting Position | Horizontal |
š± Environmental Specifications
| Attribute | Details |
|---|---|
| Operating Temperature | 32ā104 Ā°F (0ā40 Ā°C) |
| Storage Temperature | 5ā113 Ā°F (-15ā45 Ā°C) |
| Operating Humidity | 0ā95% non-condensing |
| Storage Humidity | 0ā95% non-condensing |
| Operating Altitude | 0ā10,000 ft |
| Storage Altitude | 0ā50,000 ft (0ā15,240 m) |
ā Certifications & Standards
| Attribute | Details |
|---|---|
| Certifications | CSA |
| Standards | UL 1778 |
