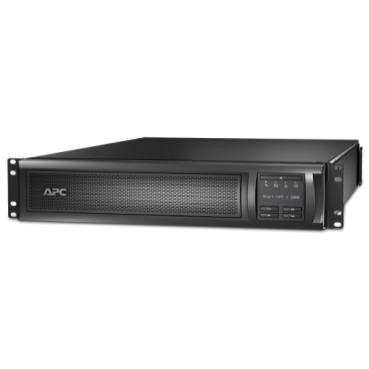

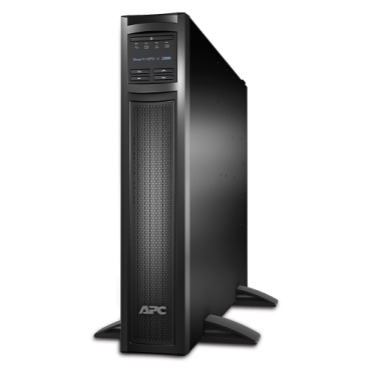

APC Smart-UPS X, Line Interactive, 2000VA, Rack/tower convertible 2U, 100V-127V, 3x 5-15R+3x 5-20R+1x L5-20R NEMA, NMC, Extended runtime [TAA]
- 1920VA/1800W line interactive pure sine wave 2U rack/tower UPS (rail kit included)
- User-selectable low voltage setting of 100V-127V
- Add up to 10 external battery packs (SMX120RMBP2U)
- Preinstalled NMC for network-based UPS monitoring & management
- Graceful shutdown of physical servers, virtual machines and HCI clusters
AED19,299.00

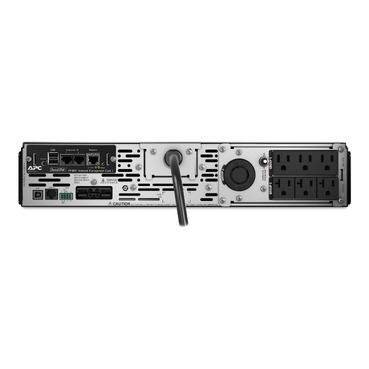

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1920VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x L5-20R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms.
| Category | Attribute | Value |
|---|---|---|
| Overview | Lead Time | Usually in Stock |
| Main | Run Time for Load | 1800 W |
| Load Range | 180ā1800 W | |
| Runtime at Full Load | 10 min 56 sec | |
| Max Capacity Used | 100% | |
| Product Type | Uninterruptible Power Supply (UPS) | |
| Batteries & Runtime | Battery Type | Lead-Acid battery |
| Extendable Runtime | Yes | |
| Included Battery Modules | 1 | |
| Empty Battery Slots | 0 | |
| Typical Recharge Time | 3 h | |
| RBC Quantity | 1 | |
| Battery Life | 3ā5 years | |
| Replacement Battery | APCRBC117US | |
| Battery Charge Power | 229 W rated | |
| Runtime Graph | [View Runtime Graph] | |
| Efficiency Graph | [View Efficiency Graph] | |
| General | Provided Equipment | CD with software, Documentation CD, Installation guide, Network Management Card, Rack mounting hardware, Rack Mounting brackets, Rack Mounting support rails, Smart UPS RS-232 cable, USB cable |
| Power Module (Filled/Free) | 0 / 0 | |
| Product Web Sub-family | TAA compliance | |
| Redundant | No | |
| Physical | Rack Units | 2U |
| Cable Length | 8 ft (2.4 m) | |
| Number of Cables | 1 | |
| Color | Black | |
| Dimensions (HxWxD) | 3.35 in x 17.01 in x 26.26 in (8.5 x 43.2 x 66.7 cm) | |
| Product Weight | 84.77 lb (38.45 kg) | |
| Mounting | Front, Lower, Rack-mounted | |
| Two Post Mountable | No | |
| USB Compatible | No | |
| Input | Main Input Voltage | 120 V |
| Other Input Voltage | 100 V, 110 V, 127 V | |
| Input Connection Type | NEMA 5-20P | |
| Input Voltage Range | 75ā154 V adjustable; 70ā153 V | |
| Input Frequency | 50/60 Hz Ā± 3 Hz (auto-sensing) | |
| Output | Main Output Voltage | 120 V |
| Other Output Voltage | 100 V, 110 V, 127 V | |
| kW Rating | 1800 W | |
| Rated Power | 1920 VA | |
| Max Configurable Power | 1920 VA / 1800 W | |
| Output Connections | 3 Ć NEMA 5-15R, 3 Ć NEMA 5-20R, 1 Ć NEMA L5-20R | |
| Harmonic Distortion | < 5% | |
| Transfer Time | 4 ms typical / 8 ms max | |
| Topology | Line Interactive | |
| Waveform Type | Sine wave | |
| Output Frequency | 50/60 Hz Ā± 3 Hz sync to mains | |
| Conformance | Product Certifications | BSMI, CSA, NOM, TAA, TĆV, VCCI Class A |
| Equipment Protection Policy | Lifetime, up to $150,000 | |
| Environmental | Acoustic Level | 55 dBA |
| Online Thermal Dissipation | 203 Btu/h | |
| Operating Altitude | 0ā10000 ft | |
| Storage Altitude | 0ā50000 ft (0ā15240 m) | |
| Operating Temperature | 32ā104 Ā°F (0ā40 Ā°C) | |
| Storage Temperature | 5ā113 Ā°F (ā15ā45 Ā°C) | |
| Relative Humidity (Operating & Storage) | 0ā95% |
