04 3550600 052 7036860

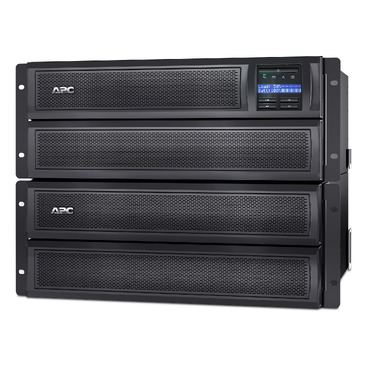

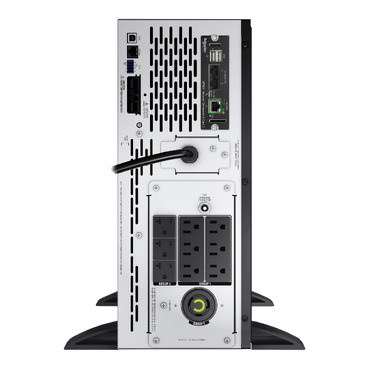

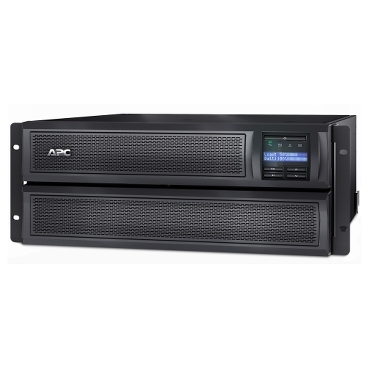

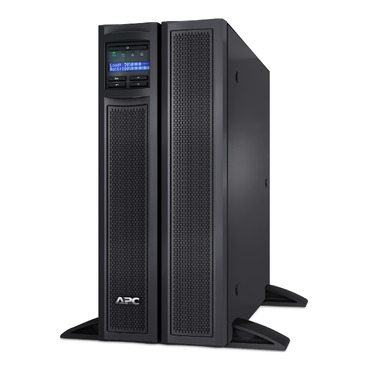

APC Smart-UPS X, Line Interactive, 2000VA, Rack/tower convertible 4U, 100V-127V, 6x 5-15R+3x 5-20R+1x L5-20R NEMA,NMC,Extended runtime,Short depth,TAA

Add to Wishlist
  • 1920VA/1800W line interactive pure sine wave 4U rack/tower UPS (rail kit AP9625 sold separately)
  • User-selectable low voltage setting of 100V-127V
  • Add up to 10 external battery packs (SMX120BP)
  • Short depth UPS provides extra space for cable management

AED17,899.00

Add to Wishlist

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 1920VA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA 5-20P input, 6x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-20R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms.

SKU: SMX2000LVNCUS Category: Tag:

šŸ”‹ UPS Specifications Table

Category Attribute Value
Overview Lead Time Usually in Stock
Main Run Time for Load 1800 W
Load Range 180ā€“1800 W
Runtime at Full Load 10 min 56 sec
Max Capacity Used 100%
Product Type Uninterruptible Power Supply (UPS)
Complementary Communication Port Type SmartConnect Ethernet port
Batteries & Runtime Run Time Graph View Runtime Graph
Efficiency Graph View Efficiency Graph
Battery Type Lead-Acid battery
Extendable Run Time Yes (1)
Included Battery Modules 1
Battery Slots Empty 0
Typical Recharge Time 3 h
RBC Quantity 1
Battery Life 3ā€“5 years
Replacement Battery APCRBC143US
Battery Charge Power 229 W rated
General Provided Equipment CD with software, Documentation CD, Installation guide, Network Management Card, Rack mounting hardware, Rack mounting brackets, Rack mounting support rails, RS-232 cable, USB cable
Number of Power Modules 0
Power Module Filled Slots 0
Power Module Free Slots 0
Product Web Sub-Family TAA compliance
Redundant No
Physical Rack Units 4U
Cable Length 8 ft (2.4 m)
Number of Cables 1
Color Black
Height 17.01 in (43.2 cm)
Width 7.01 in (17.8 cm)
Depth 19.02 in (48.3 cm)
Product Weight 85.19 lb (38.64 kg)
Mounting Location Front
Mounting Preference Lower
Mounting Mode Rack-mounted
Two Post Mountable Yes (1)
USB Compatible No
Input Main Input Voltage 120 V
Other Input Voltages 100 V, 110 V, 127 V
Input Connection Type NEMA 5-20P
Input Voltage Range 70ā€“153 V, 75ā€“154 V adjustable
Input Frequency 50/60 Hz Ā± 3 Hz auto-sensing
Output Main Output Voltage 120 V
Other Output Voltages 100 V, 110 V, 127 V
kW Rating 1800 W
Rated Power 1920 VA
Max Configurable Power 1800 W / 1920 VA
Output Connections 6 Ɨ NEMA 5-15R, 3 Ɨ NEMA 5-20R, 1 Ɨ NEMA L5-20R
Harmonic Distortion Less than 5%
Transfer Time 4 ms typical, 8 ms max
Topology Line Interactive
Waveform Type Sine wave
Output Frequency 50/60 Hz Ā± 3 Hz sync to mains
Conformance Certifications BSMI, CSA, NOM, TAA compliance, TƜV, VCCI Class A
Equipment Protection Policy Lifetime : $150,000
Environmental Acoustic Level 55 dBA
Thermal Dissipation 203 Btu/h
Operating Altitude 0ā€“10,000 ft
Operating Temperature 32ā€“104 Ā°F (0ā€“40 Ā°C)
Storage Temperature 5ā€“113 Ā°F (āˆ’15ā€“45 Ā°C)
Storage Altitude 0ā€“50,000 ft (0ā€“15,240 m)
Relative Humidity 0ā€“95%
Storage Relative Humidity 0ā€“95%
