UPS , Power Back up and accessories

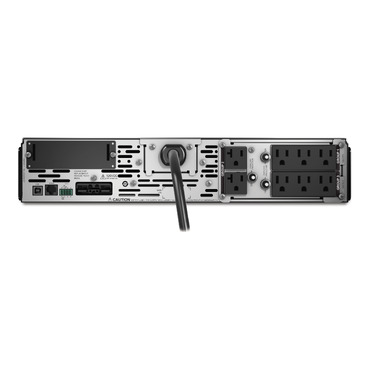

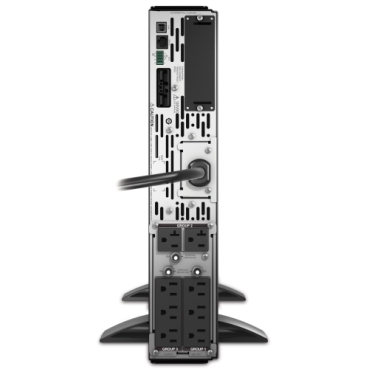

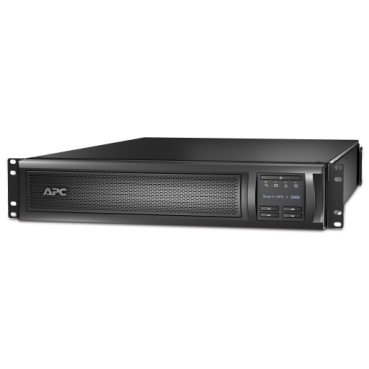

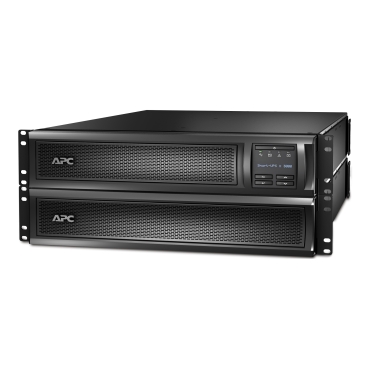

APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 2U, 100V-127V, 6x 5-15R+2x 5-20R NEMA, SmartSlot, Extended runtime
- 2200VA/1980W line interactive pure sine wave 2U rack/tower UPS (rail kit included)
- User-selectable low voltage setting of 100V-127V
- Add up to 10 external battery packs (SMX120RMBP2U)
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
AED12,199.00
This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2200VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 6x NEMA 5-15R and 2x NEMA 5-20R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms.
Overview
| Item | Details |
|---|---|
| Presentation | Intelligent and efficient network power protection from entry level to scalable runtime |
| Ideal for | Servers, point-of-sale, routers, switches, hubs, and other network devices |
| Lead Time | Usually Ships within 2 Weeks |
Main
| Item | Details |
|---|---|
| Product Type | Uninterruptible Power Supply (UPS) |
Complementary
| Item | Details |
|---|---|
| Communication Port Type | SmartSlot |
Batteries & Runtime
| Item | Details |
|---|---|
| Battery Type | Lead-Acid battery |
| Extendable Runtime | Yes (1) |
| Included Battery Modules | 0 |
| Battery Slots Empty | 0 |
| Typical Recharge Time | 3 hours |
| RBC Quantity | 1 |
| Battery Life | 3–5 years |
| Replacement Battery | APCRBC117 |
| Battery Charge Power | 233 W rated |
General
| Item | Details |
|---|---|
| Provided Equipment | CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack Mounting brackets, Rack Mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, USB cable |
| Number of Power Modules | 0 |
| Number of Power Module Slots | Filled: 0, Free: 0 |
| Product Web Sub-Family | Extended run |
| Redundant | No |
Physical
| Item | Details |
|---|---|
| Rack Unit Height | 2U |
| Cable Length | 8 ft (2.4 m) |
| Number of Cables | 1 |
| Color | Black |
| Dimensions (H x W x D) | 3.35 in x 17.00 in x 26.26 in (8.5 cm x 43.18 cm x 66.7 cm) |
| Net Weight | 84.77 lb (38.45 kg) |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Mounting Mode | Rack-mounted |
| Two Post Mountable | No |
| USB Compatible | Yes |
Input
| Item | Details |
|---|---|
| Main Input Voltage | 120 V |
| Other Input Voltages | 100 V, 110 V, 127 V |
| Input Connection Type | NEMA L5-30P |
| Efficiency at Full Load | 70–153 V |
| Input Frequency | 50/60 Hz ± 3 Hz (auto-sensing) |
Output
| Item | Details |
|---|---|
| Main Output Voltage | 120 V |
| Other Output Voltages | 100 V, 110 V, 127 V |
| kW Rating | 1980 W |
| Rated Power in VA | 2200 VA |
| Output Connection Type | 6 × NEMA 5-15R, 2 × NEMA 5-20R |
| Harmonic Distortion | Less than 5% |
| Max Configurable Power | 1980 W / 2200 VA |
| Transfer Time | 4 ms typical; 8 ms maximum |
| Topology | Line Interactive |
| Wave Type | Sine wave |
| Output Frequency (sync to mains) | 50/60 Hz ± 3 Hz |
Conformance
| Certifications |
|---|
| BSMI |
| CSA |
| NOM |
| TÜV |
| VCCI Class A |
| Equipment Protection |
Environmental
| Item | Details |
|---|---|
| Acoustic Level | 55 dBA |
| Online Thermal Dissipation | 268 Btu/h |
| Operating Altitude | 0–10,000 ft |
| Operating Temperature | 32–104 °F (0–40 °C) |
| Storage Temperature | 5–113 °F (-15–45 °C) |
| Storage Altitude | 0–50,000 ft |
| Operating & Storage Humidity | 0–95% |
