04 3550600 052 7036860

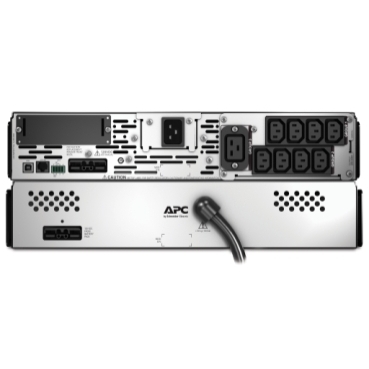

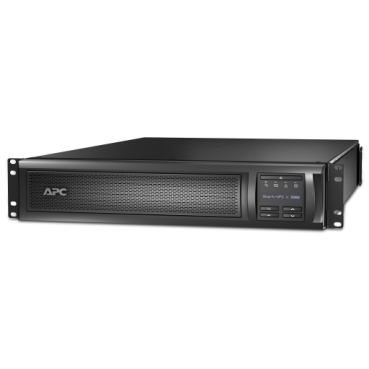

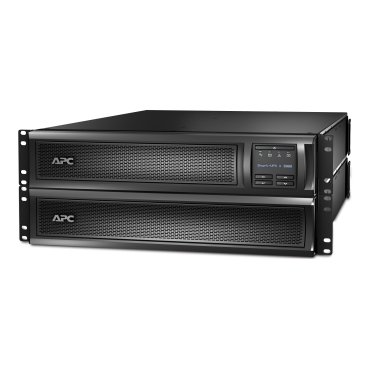

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 2U, 100V-127V, 3x 5-15R+3x 5-20R+1x L5-30R NEMA, NMC, Extended runtime, W/rail kit

Add to Wishlist
  • 2880VA/2700W line interactive pure sine wave 2U rack/tower UPS (rail kit included)
  • User-selectable low voltage setting of 100V-127V

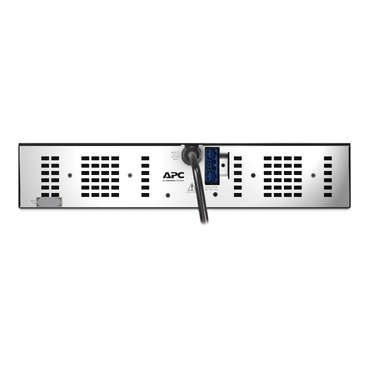

  • Add up to 10 external battery packs (SMX120RMBP2U)
  • Preinstalled NMC for network-based UPS monitoring & management

AED18,999.00

Add to Wishlist

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2880VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms.

SKU: SMX3000RMLV2UNC Category: Tag:

Overview

Feature Description
Presentation Intelligent and efficient network power protection from entry level to scalable runtime. Ideal for servers, POS, routers, switches, hubs, and other network devices.
Lead time Usually Ships within 2 Weeks

Main

Feature Description
Product Type Uninterruptible power supply (UPS)

Batteries & Runtime

Feature Description
Battery Type Lead-Acid battery
Extendable Run Time Yes (1)
Included Battery Modules 0
Battery Slots Empty 0
Typical Recharge Time 3 hours
RBC Quantity 1
Battery Life 3–5 years
Replacement Battery APCRBC117
Battery Charge Power 245 W rated
Run Time Graph Available (external link)
Efficiency Graph Available (external link)

General

Feature Description
Provided Equipment CD with software, Documentation CD, Installation guide, Rack mounting hardware & brackets, Support rails, Removable feet, RS-232 cable, USB cable, Web/SNMP Card
Number of Power Modules 0
Power Module Slots Filled 0
Power Module Slots Free 0
Product Web Sub-Family Extended run
Redundant No

Physical

Feature Description
Rack Units 2U
Cable Length 8 ft (2.4 m)
Number of Cables 1
Color Black
Height 3.35 in (8.5 cm)
Width 17.01 in (43.2 cm)
Depth 26.26 in (66.7 cm)
Net Weight 84.77 lb (38.45 kg)
Mounting Location Front
Mounting Preference Lower
Mounting Mode Rack-mounted
Two Post Mountable No (0)
USB Compatible Yes

Input

Feature Description
Main Input Voltage 120 V
Other Input Voltages 100 V, 110 V, 127 V
Input Connection Type NEMA L5-30P
Input Voltage Range 70–153 V
Input Frequency 50/60 Hz ± 3 Hz (auto)

Output

Feature Description
Main Output Voltage 120 V
Other Output Voltages 100 V, 110 V, 127 V
Power Rating (Watts) 2700 W
Power Rating (VA) 2880 VA
Output Connections 3 NEMA 5-15R, 3 NEMA 5-20R, 1 NEMA L5-30R
Harmonic Distortion < 5%
Max Configurable Power (VA) 2880 VA
Max Configurable Power (Watts) 2700 W
Max Output Current 15 A
Transfer Time 2–4 ms (typical 4 ms, max 8 ms)
Topology Line Interactive
Wave Type Sine wave
Output Frequency (sync to mains) 50/60 Hz ± 3 Hz

Conformance

Feature Certification
Product Certifications BSMI, CSA, NOM, TÜV, VCCI Class A
Equipment Protection Policy Lifetime: $150,000

Environmental

Feature Description
Acoustic Level 55 dBA
Online Thermal Dissipation 276 Btu/h
Operating Altitude 0–10,000 ft
Operating Temperature 32–104 °F (0–40 °C)
Storage Temperature 5–113 °F (-15–45 °C)
Storage Altitude 0–50,000 ft
Operating Humidity 0–95 % RH
Storage Humidity 0–95 % RH
