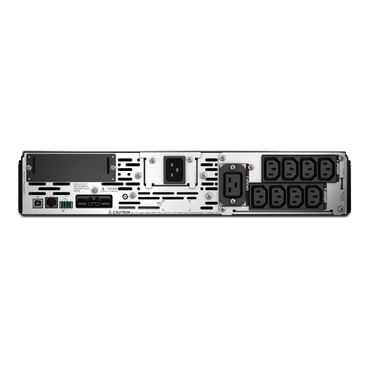

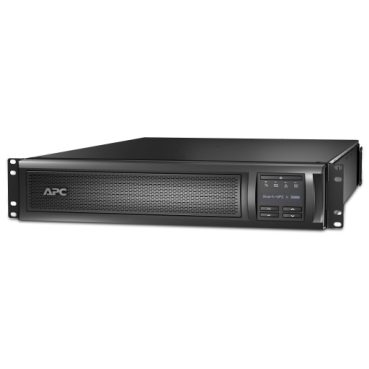

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms.
UPS , Power Back up and accessories
APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 2U, 200V-240V, 8x C13+1x C19 IEC, SmartSlot, Extended runtime [TAA]
- 3kVA/2700W line interactive pure sine wave 2U rack/tower UPS (rail kit included)
- User-selectable high voltage setting of 200V-240V
- Add up to 10 external battery packs (SMX120RMBP2U)
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
AED21,199.00
Category | Specification |
---|
Overview |
Lead time | Usually in Stock |
Main |
Run time for load | 6 min 15 s at 2700 W |
Min-max load range | 270ā2700 W |
Max. Capacity Used | 100% |
Product Type | Uninterruptible Power Supply (UPS) |
Batteries & Runtime |
Battery Type | Lead-Acid battery |
Extendable Run Time | Yes (1) |
Included Battery Modules | 0 |
Battery Slots Empty | 0 |
Typical Recharge Time | 3 h |
RBC Quantity | 1 |
Battery Life | 3ā5 years |
Replacement Battery | APCRBC117 |
Battery Charge Power | 245 W rated |
Run Time Graph | Available |
Efficiency Graph | Available |
General |
Provided Equipment | CD with software |
Power Modules Installed | 0 |
Power Module Free Slots | 0 |
Product Web Sub-family | Extended run |
Redundant | No |
Physical |
Rack Units | 2U |
Cable Length | 6 ft (1.8 m) |
Number of Cables | 1 |
Color | Black |
Height | 3.35 in (8.5 cm) |
Width | 17.01 in (43.2 cm) |
Depth | 26.26 in (66.7 cm) |
Product Weight | 82.28 lb (37.32 kg) |
Mounting Location | Front |
Mounting Preference | Lower |
Mounting Mode | Rack-mounted |
Two-post Mountable | No |
USB Compatible | Yes |
Input |
Main Input Voltage | 230 V |
Other Input Voltage | 220 V |
Input Connection Type | IEC 320 C20 |
Input Voltage Range | 140ā280 V |
Input Frequency | 50/60 Hz ± 3 Hz auto-sensing |
Output |
Main Output Voltage | 230 V |
Other Output Voltage | 208 V |
kW Rating | 2700 W |
Rated Power (VA) | 3000 VA |
Output Connection Type | 8 IEC 320 C13 |
Crest Factor | 3:1 |
Harmonic Distortion | < 5% |
Max Configurable Power | 3000 VA / 2700 W |
Transfer Time | 2ā4 ms |
Topology | Line Interactive |
Waveform Type | Sine wave |
Output Frequency | 50/60 Hz ± 3 Hz (sync to mains) |
Conformance |
Certifications | CE, TAA compliance |
Standards | EN/IEC 62040-1:2019/A11:2021 |
Environmental |
Acoustic Level | 55 dBA |
Thermal Dissipation | 184 Btu/h (online) |
Operating Altitude | 0ā10,000 ft |
Operating Temp | 32ā104 °F (0ā40 °C) |
Storage Temp | 5ā113 °F (-15ā45 °C) |
Storage Altitude | 0ā50,000 ft (0ā15,240 m) |
Operating Humidity | 0ā95% RH |
Storage Humidity | 0ā95% RH |
