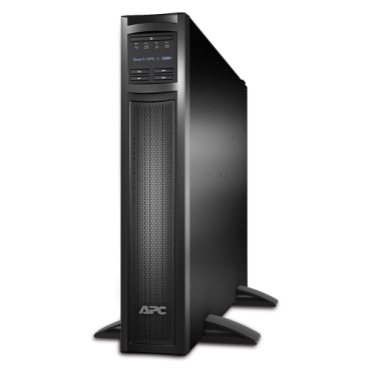

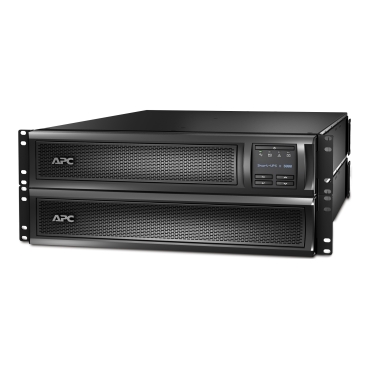

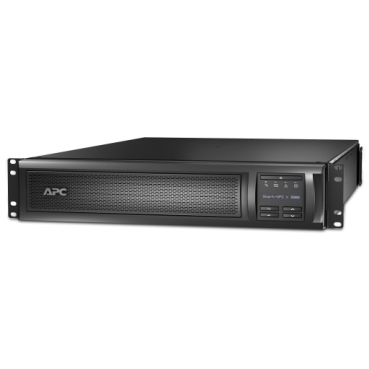

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 2U, 208V-230V, 8x C13+1x C19 IEC, Network card, Extended runtime
- 3kVA/2700W line interactive pure sine wave 2U rack/tower UPS (rail kit included)
- User-selectable high voltage setting of 200V-240V
- Add up to 10 external battery packs (SMX120RMBP2U)
- Preinstalled NMC for network-based UPS monitoring & management
- Graceful shutdown of physical servers, virtual machines and HCI clusters
AED22,399.00

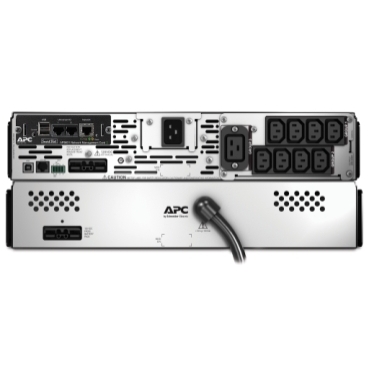

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 1x IEC 320 C19 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms.
Overview
| Attribute | Value |
|---|---|
| Presentation | Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. |
| Lead Time | Usually in Stock |
Main
| Attribute | Value |
|---|---|
| Product or Component Type | Uninterruptible Power Supply (UPS) |
Batteries & Runtime
| Attribute | Value |
|---|---|
| Run Time | View Runtime Graph |
| Efficiency | View Efficiency Graph |
| Battery Type | Lead-Acid Battery |
| Extendable Run Time | Yes (1) |
| Included Battery Modules | 0 |
| Battery Slots Empty | 0 |
| Typical Recharge Time | 3 h |
| RBC Quantity | 1 |
| Battery Life | 3–5 years |
| Replacement Battery | APCRBC117 |
| Battery Charge Power | 245 W rated |
General
| Attribute | Value |
|---|---|
| Provided Equipment | – CD with software – Rack Mounting support rails – Smart UPS signaling RS-232 cable – Temperature Probe – User Manual – Web/SNMP Management Card |
| Number of Power Modules | 0 |
| Power Module Filled Slots | 0 |
| Power Module Free Slots | 0 |
| Product Web Sub-family | Network card pre-installed |
| Redundant | No |
Physical
| Attribute | Value |
|---|---|
| Number of Rack Units | 2U |
| Cable Length | 8 ft (2.4 m) |
| Number of Cables | 1 |
| Color | Black |
| Height | 3.35 in (8.5 cm) |
| Width | 17.01 in (43.2 cm) |
| Depth | 26.26 in (66.7 cm) |
| Net Weight | 82.28 lb (37.32 kg) |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Mounting Mode | Rack-mounted |
| Two Post Mountable | No (0) |
| USB Compatible | Yes |
Input
| Attribute | Value |
|---|---|
| Main Input Voltage | 208 V, 230 V |
| Other Input Voltage | 220 V, 240 V |
| Input Connection Type | BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P |
| Input Voltage Range (Full Load) | 140–280 V |
| Input Frequency | 50/60 Hz ± 3 Hz (auto-sensing) |
Output
| Attribute | Value |
|---|---|
| Main Output Voltage | 230 V |
| Other Output Voltage | 208 V, 220 V, 240 V |
| Power Rating (kW) | 2700 W |
| Rated Power (VA) | 3000 VA |
| Output Connection Type | 8 x IEC 320 C13, 2 x IEC Jumpers, 1 x IEC 320 C19 |
| Harmonic Distortion | < 5% |
| Max Configurable Power (VA) | 3000 VA |
| Max Configurable Power (W) | 2700 W |
| Transfer Time | 2–4 ms (typical: 6 ms, max: 10 ms) |
| Topology | Line Interactive |
| Wave Type | Sine Wave |
| Output Frequency (Sync to Mains) | 50/60 Hz ± 3 Hz |
Conformance
| Attribute | Value |
|---|---|
| Product Certifications | C-tick, CE, EAC, GOST, IRAM, VDE, UK PSTI |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |
Environmental
| Attribute | Value |
|---|---|
| Acoustic Level | 55 dBA |
| Online Thermal Dissipation | 184 Btu/h |
| Operating Altitude | 0–10,000 ft |
| Operating Temp. Range | 32–104 °F (0–40 °C) |
| Storage Temp. Range | 5–113 °F (-15–45 °C) |
| Storage Altitude | 0–50,000 ft (0–15,240 m) |
| Relative Humidity (Operating & Storage) | 0–95% |
