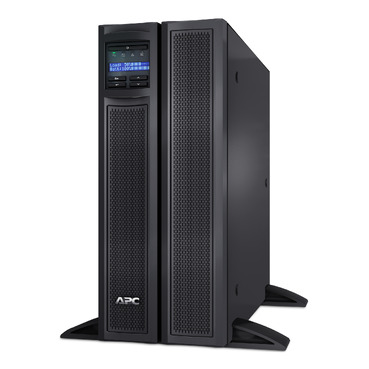

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 4U, 100V-127V, 6x 5-15R+3x 5-20R+1x L5-30R NEMA, NMC, Extended runtime, Short depth

Add to Wishlist
  • 2880VA/2700W line interactive pure sine wave 4U rack/tower UPS (rail kit AP9625 sold separately)
  • User-selectable low voltage setting of 100V-127V

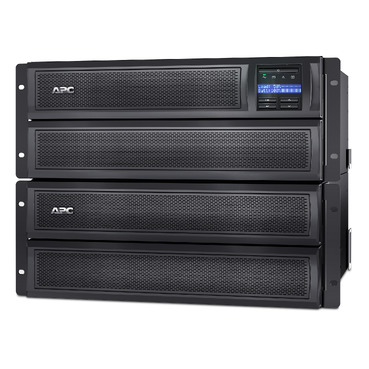

  • Add up to 10 external battery packs (SMX120BP)
  • Short depth UPS provides extra space for cable management
  • Preinstalled NMC for network-based UPS monitoring & management

AED19,399.00

Add to Wishlist

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2880VA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 6x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms

SKU: SMX3000LVNC Category: Tag:

Overview

Attribute Details
Presentation Intelligent and efficient network power protection from entry level to scalable runtime
Ideal For Servers, point-of-sale, routers, switches, hubs, and other network devices
Lead Time Usually Ships within 2 Weeks

Main

Attribute Details
Product or Component Type Uninterruptible Power Supply (UPS)

Batteries & Runtime

Attribute Details
Run Time View Runtime Graph
Efficiency View Efficiency Graph
Battery Type Lead-Acid battery
Extendable Run Time Yes (1)
Included Battery Modules 0
Battery Slots Empty 0
Typical Recharge Time 3 hours
RBC Quantity 1
Battery Life 3–5 years
Replacement Battery APCRBC143
Battery Charge Power 245 W rated

General

Attribute Details
Provided Equipment CD with software, Documentation CD, Installation guide, Rack mounting hardware, Rack mounting brackets, Rack mounting support rails, Removable support feet, Smart UPS signalling RS-232 cable, USB cable, Web/SNMP Management Card
Number of Power Modules 0
Power Module Filled Slots 0
Power Module Free Slots 0
Product Web Sub-Family Network card pre-installed
Redundant No

Physical

Attribute Details
Rack Units (U) 4U
Cable Length 8 ft (2.4 m)
Number of Cables 1
Color Black
Height 17.01 in (43.2 cm)
Width 7.01 in (17.8 cm)
Depth 19.02 in (48.3 cm)
Net Weight 85.19 lb (38.64 kg)
Mounting Location Front
Mounting Preference Lower
Mounting Mode Rack-mounted
Two-Post Mountable Yes (1)
USB Compatible Yes

Input

Attribute Details
Main Input Voltage 120 V
Other Input Voltages 100 V, 110 V, 127 V
Input Connection Type NEMA L5-30P
Efficiency at Full Load 70–153 V
Input Frequency 50/60 Hz ± 3 Hz (auto-sensing)

Output

Attribute Details
Main Output Voltage 120 V
Other Output Voltages 100 V, 110 V, 127 V
Power Rating 2700 W / 2880 VA
Maximum Configurable Power 2700 W / 2880 VA
Maximum Output Current 15 A

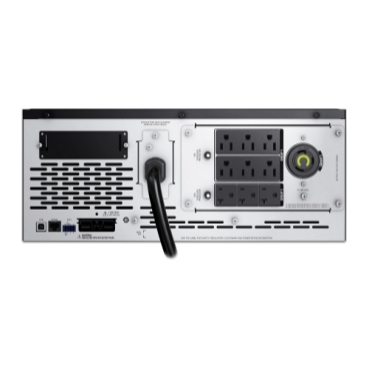

Output Connection Types 6 × NEMA 5-15R, 3 × NEMA 5-20R, 1 × NEMA L5-30R
Harmonic Distortion Less than 5%
Transfer Time 4 ms typical; 8 ms maximum
Topology Line Interactive
Wave Type Sine wave
Output Frequency (Sync to Mains) 50/60 Hz ± 3 Hz

Conformance

Attribute Details
Certifications BSMI, CSA, NOM, TÜV, VCCI Class A
Equipment Protection Policy Lifetime: $150,000

Environmental

Attribute Details
Acoustic Level 55 dBA
Online Thermal Dissipation 276 Btu/h
Operating Altitude 0–10,000 ft
Operating Temperature 32–104 °F (0–40 °C)
Storage Temperature 5–113 °F (-15–45 °C)
Storage Altitude 0–50,000 ft (0–15,240 m)
Relative Humidity (Operating/Storage) 0–95%
