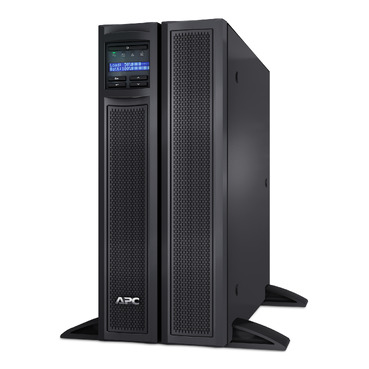

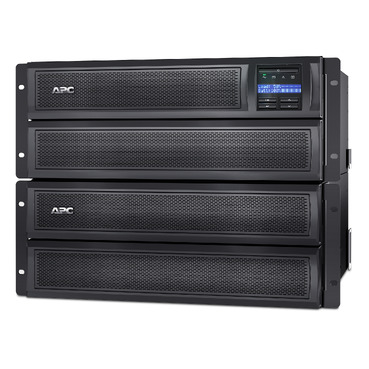

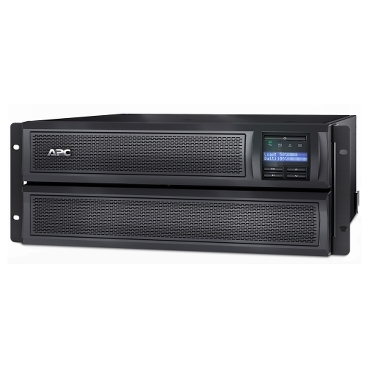

APC Smart-UPS X, Line Interactive, 3kVA, Rack/tower convertible 4U, 208V-230V, 8x C13+2x C19 IEC, Network card, Extended runtime

Add to Wishlist
  • 3kVA/2700W line interactive pure sine wave 4U rack/tower UPS (rail kit AP9625 sold separately)
  • User-selectable high voltage setting of 200V-240V
  • Add up to 10 external battery packs (SMX120BP)
  • Short depth UPS provides extra space for cable management
  • Preinstalled NMC for network-based UPS monitoring & management

AED22,999.00

Add to Wishlist

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 3kVA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with IEC 320 C20 input (includes BS1363A, IEC 320 C20 and Schuko CEE 7/EU1-16P power cords), 8x IEC 320 C13 and 2x IEC 320 C19 outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The Smart-UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms.

SKU: SMX3000HVNC Category: Tag:

Overview

Feature Description
Presentation Intelligent and efficient network power protection for servers and network devices
Ideal for Servers, point-of-sale, routers, switches, hubs, and network devices
Lead Time Usually in Stock

Main

| Product Type | Uninterruptible power supply (UPS) |

Batteries & Runtime

| Battery Type | Lead-Acid battery |
| Extendable Run Time | Yes (1) |
| Included Battery Modules | 0 |
| Empty Battery Slots | 0 |
| Typical Recharge Time | 3 hours |
| RBC Quantity | 1 |
| Battery Life | 3–5 years |
| Replacement Battery | APCRBC143 |
| Battery Charge Power | 245 W rated |

General

| Provided Equipment | CD with software, Rack Mounting support rails, RS-232 cable, Temperature Probe, User Manual, Web/SNMP Management Card |
| Number of Power Modules | 0 |
| Power Module (Filled Slots) | 0 |
| Power Module (Free Slots) | 0 |
| Web Sub-Family | Network card pre-installed |
| Redundant | No |

Physical

| Rack Units | 4U |
| Cable Length | 8 ft (2.4 m) |
| Number of Cables | 1 |
| Color | Black |
| Height | 17.01 in (43.2 cm) |
| Width | 7.01 in (17.8 cm) |
| Depth | 19.02 in (48.3 cm) |
| Net Weight | 85.19 lb (38.64 kg) |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Mounting Mode | Rack-mounted |
| Two-Post Mountable | Yes |
| USB Compatible | Yes |

Input

| Main Input Voltage | 208 V / 230 V |
| Other Input Voltage | 220 V / 240 V |
| Input Connection Types | BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P |
| Efficiency Voltage Range | 140–280 V |
| Input Frequency | 50/60 Hz ± 3 Hz auto-sensing |

Output

| Main Output Voltage | 230 V |
| Other Output Voltages | 208 V / 220 V / 240 V |
| kW Rating | 2700 W |
| Power (VA) | 3000 VA |

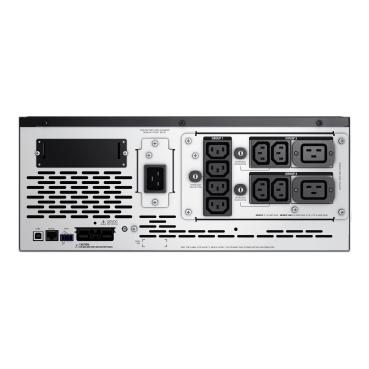

| Output Connections | 8 × IEC 320 C13, 2 × IEC Jumpers, 2 × IEC 320 C19 |
| Harmonic Distortion | < 5% |
| Max Configurable Power (VA) | 3000 VA |
| Max Configurable Power (Watts)| 2700 W |
| Transfer Time | 6 ms typical, 10 ms maximum |
| Topology | Line Interactive |
| Wave Type | Sine wave |
| Output Frequency (sync) | 50/60 Hz ± 3 Hz |

Conformance

| Certifications | C-tick, CE, CSA, EAC, GOST, IRAM, VDE, UK PSTI |
| Standards | EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018 |

Environmental

| Acoustic Level | 55 dBA |
| Thermal Dissipation | 184 Btu/h |
| Operating Altitude | 0–10,000 ft |
| Operating Temp Range | 32–104 °F (0–40 °C) |
| Storage Temp Range | 5–113 °F (-15–45 °C) |
| Storage Altitude | 0–50,000 ft |
| Relative Humidity | 0–95% (Operating and Storage) |
