UPS , Power Back up and accessories

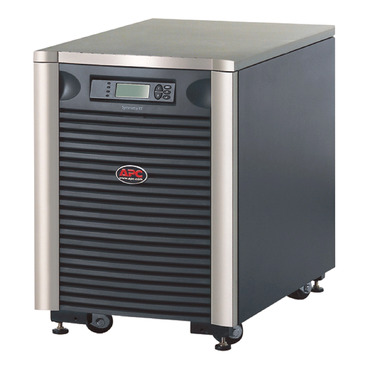

APC Symmetra LX 4kVA scalable to 8kVA N+1 Tower, 208/240V
AED76,899.00
| Category | Specification |
|---|
| Overview |
| Lead time | Usually in Stock |
| Main |
| Main Input Voltage | 208 V |
| Other Input Voltage | 240 V |
| Product or Component Type | Uninterruptible power supply (UPS) |
| Main Output Voltage | 120 V, 208 V |
| Other Output Voltage | 240 V |
| Kw Rating | 3200 W |
| Rated power in VA | 4000 VA |
| Output connector type | 1 Hard Wire 4-wire (2PH+N+G) |
| Battery Type | Lead-Acid battery |
| Provided equipment | CD with software, Documentation CD, Installation guide, User Manual, Web/SNMP Management Card |
| Range of Product | Symmetra LX |
| Batteries & Runtime |
| Included Battery Modules | 1 |
| Battery Slots Empty | 1 |
| Typical recharge time | 3 h |
| Additional information | Configurable for 208 or 240 nominal output voltage |
| Battery Charge Power (Watts) | 287 W rated |
| Battery life | 3…5 year(s) |
| Extendable Run Time | 1 |
| General |
| Product web sub-family | 4kVA power increments |
| Number of power module free slots | 2 |
| Number of power module filled slots | 1 |
| Redundant | Yes |
| Physical |
| Color | Black, Silver |
| Height | 26.42 in (67.1 cm) |
| Width | 19.02 in (48.3 cm) |
| Depth | 28.58 in (72.6 cm) |
| Net Weight | 347.74 lb (157.73 kg) |
| Mounting Location | Front |
| Mounting preference | No preference |
| Mounting Mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Input |
| Input Frequency | 45…65 Hz auto-sensing |
| Number of input connectors | 1 Hard Wire 4-wire (2PH+N+G) |
| Efficiency at full load | 96…138 V line to neutral |
| Input Total Harmonic Distortion | Less than 7% for full load |
| Input Power Factor at Full Load | 0.98 |
| Output |
| Max Configurable Power (Watts) | 6400 W |
| Harmonic distortion | Less than 5 % at full load |
| Output Frequency (sync to mains) | 47…63 Hz sync to mains; 60 Hz ±0.1% for 60 Hz nominal not synced; 50 Hz ±0.1% for 50 Hz nominal not synced |
| Crest factor | Up to 5 : 1 |
| Topology | Double Conversion Online |
| Wave type | Sine wave |
| Bypass type | Internal Bypass (Automatic and Manual), Optional External Bypass |
| Maximum output current | 18 A |
| Maximum configurable power in VA | 8000 VA |
| Conformance |
| Product Certifications | CSA |
| Standards | FCC Part 15 class A, UL 1778 |
| Environmental |
| Ambient air temperature for operation | 32…104 °F (0…40 °C) |
| Relative Humidity | 0…95 % |
| Operating altitude | 0…10000 ft |
| Ambient Air Temperature for Storage | 5…113 °F (-15…45 °C) |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…15000 ft (0…4572 m) |
| Acoustic level | 62 dBA |
| Online Thermal Dissipation | 3485 Btu/h |
