UPS , Power Back up and accessories

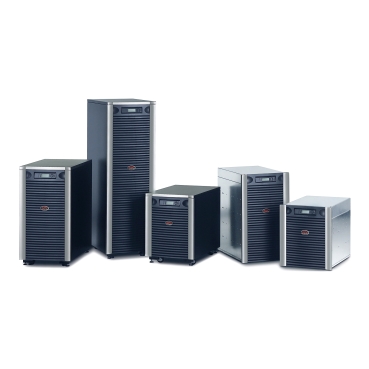

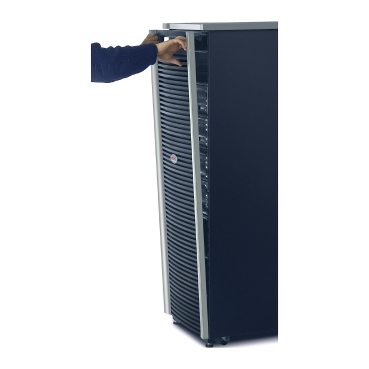

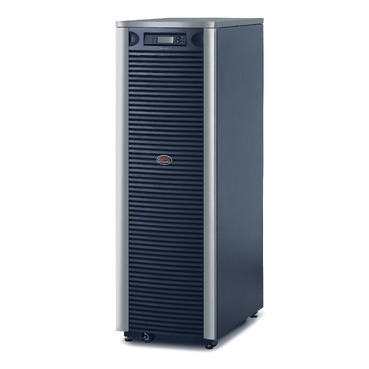

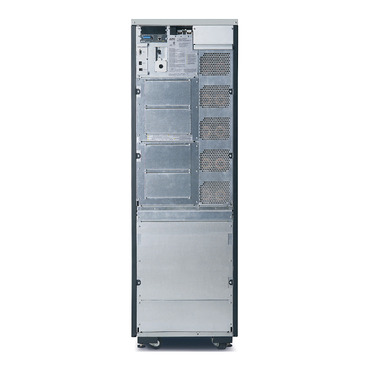

APC Symmetra LX 8kVA Scalable to 16kVA N+1 Ext. Run Tower, 208/240V
AED166,299.00
| Category | Specification |
|---|
| Overview |
| Lead Time | Usually in Stock |
| Product Type | Uninterruptible Power Supply (UPS) |
| Range of Product | Symmetra LX |
| Main Electrical |
| Main Input Voltage | 208 V |
| Other Input Voltage | 240 V |
| Main Output Voltage | 120 V, 208 V |
| Other Output Voltage | 240 V |
| Output Connector Type | Hard Wire 4-wire (2PH+N+G) x1 |
| kW Rating | 6400 W |
| Rated Power (VA) | 8000 VA |
| Provided Equipment | CD with software, Documentation CD, Installation guide, User Manual, Web/SNMP Management Card |
| Batteries & Runtime |
| Battery Type | Lead-Acid battery |
| Included Battery Modules | 9 |
| Battery Slots Empty | 4 |
| Typical Recharge Time | 7.5 h |
| Battery Charge Power | 1035 W rated |
| Extendable Run Time | Yes |
| Battery Life | 3–5 years |
| Additional Info | Configurable for 120/208 or 120/240 output voltage |
| General |
| Product Web Sub-Family | 4kVA power increments |
| Power Module Free Slots | 3 |
| Power Module Filled Slots | 2 |
| Redundant | Yes |
| Physical |
| Color | Black, Silver |
| Height | 59.69 in (151.6 cm) |
| Width | 19.02 in (48.3 cm) |
| Depth | 28.58 in (72.6 cm) |
| Net Weight | 1044.20 lb (473.64 kg) |
| Mounting Location | Front |
| Mounting Preference | No preference |
| Mounting Mode | Not rack-mountable |
| Two Post Mountable | No |
| USB Compatible | No |
| Input |
| Input Frequency | 45–65 Hz auto-sensing |
| Input Connector | 1 Hard Wire 4-wire (2PH+N+G) |
| Input Voltage Range | 96–138 V line to neutral |
| Input THD | < 7% at full load |
| Power Factor (Full Load) | 0.98 |
| Output |
| Max Configurable Power | 12800 W |
| Max Configurable VA | 16000 VA |
| Harmonic Distortion | < 5% at full load |
| Output Frequency | 47–63 Hz sync to mains 60 Hz ±0.1% (unsynced) 50 Hz ±0.1% (unsynced) |
| Crest Factor | Up to 5:1 |
| Topology | Double Conversion Online |
| Wave Type | Sine wave |
| Bypass Type | Internal (Auto & Manual), Optional External Bypass |
| Max Output Current | 37 A |
| Conformance |
| Certifications | CSA |
| Standards | FCC Part 15 Class A, UL 1778 |
| Environmental |
| Operating Temp | 32–104 °F (0–40 °C) |
| Storage Temp | 5–113 °F (–15–45 °C) |
| Relative Humidity | 0–95% |
| Storage Altitude | 0–15000 ft (0–4572 m) |
| Operating Altitude | 0–10000 ft |
| Acoustic Level | 62 dBA |
| Online Thermal Dissipation | 4995 Btu/h |
