UPS , Power Back up and accessories

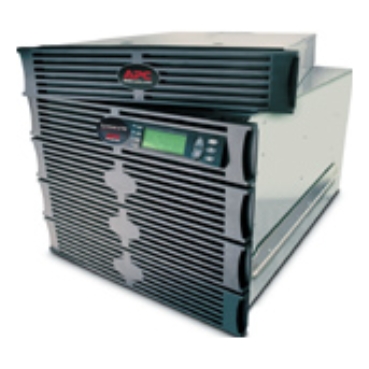

APC Symmetra RM 2kVA Scalable to 6kVA N+1 208/240V w/ 208 to 120V Step-Down Transformer (4) L5-20R
AED39,799.00
Overview
| Parameter | Value |
|---|---|
| Lead Time | Usually in Stock |
| Run Time for Load | 12 min 15 s at 1400 W (Min-max: 140–1400 W) |
| Max. Capacity Used | 100% |
| Main Input Voltage | 208 V |
| Product Type | Uninterruptible Power Supply (UPS) |
| Main Output Voltage | 120 V, 208 V |
| kW Rating | 1400 W |
| Rated Power (VA) | 2000 VA |
| Input Connection Type | NEMA L6-30P 30 A |
| Output Connection Type | 4 × NEMA L5-20R, 2 × NEMA L6-20R |
| Rack Units | 10U |
| Cable Length | 10 ft (3.05 m) |
| Number of Cables | 1 |
| Battery Type | Lead-Acid Battery |
| Provided Equipment | User Manual, Rack Mounting Brackets, Rack Mounting Support Rails, CD with Software |
| Product Range | Symmetra |
Batteries & Runtime
| Parameter | Value |
|---|---|
| Run Time | View Runtime Graph |
| Included Battery Modules | 1 |
| Battery Slots Empty | 4 |
| Typical Recharge Time | 4 h |
| Additional Info | UPS accepts 1–4 additional battery packs |
| Configurable Output Voltage | 220 / 230 / 240 V |
| Battery Charge Power | 153 W rated |
| Battery Life | 3–5 years |
| Extendable Run Time | Yes (1) |
General
| Parameter | Value |
|---|---|
| Product Web Sub-Family | 2kVA power increments |
| Total Power Modules | 4 |
| Preinstalled Power Modules | 1 |
| Free Power Module Slots | 0 |
| Filled Power Module Slots | 0 |
| Redundant | Yes |
Physical
| Parameter | Value |
|---|---|
| Color | Black |
| Height | 17.52 in (44.5 cm) |
| Width | 19.02 in (48.3 cm) |
| Depth | 28.74 in (73 cm) |
| Net Weight | 259.55 lb (117.73 kg) |
| Mounting Location | Front |
| Mounting Preference | Lower |
| Mounting Mode | Rack-mounted |
| Two Post Mountable | No (0) |
| USB Compatible | No |
Input
| Parameter | Value |
|---|---|
| Input Frequency | 50/60 Hz ± 5 Hz (auto-sensing) |
| Input Connectors | 1 Hard Wire (3-wire: 2PH + G) |
| Voltage Range (Efficiency) | 155–276 V |
| Input Power Factor (Full Load) | 0.98 |
Output
| Parameter | Value |
|---|---|
| Max Configurable Power | 4200 W |
| Harmonic Distortion | < 5% at full load |
| Output Frequency (Sync) | 57–63 Hz for 60 Hz nominal (sync to mains) |
| Output Frequency (Not Synced) | 60 Hz ± 0.1% |
| Crest Factor | Up to 5:1 |
| Topology | Double Conversion Online |
| Wave Type | Sine Wave |
| Bypass Type | Internal (Automatic and Manual) |
| Efficiency (Full Load) | 85% |
| Max Configurable Power (VA) | 6000 VA |
Conformance
| Parameter | Value |
|---|---|
| Certifications | CSA |
| Standards | FCC Part 15 Class A, UL 1778 |
Environmental
| Parameter | Value |
|---|---|
| Operating Temperature Range | 32–104 °F (0–40 °C) |
| Operating Relative Humidity | 0–95% |
| Operating Altitude | 0–10,000 ft |
| Storage Temperature Range | 5–113 °F (-15–45 °C) |
| Storage Relative Humidity | 0–95% |
| Storage Altitude | 0–50,000 ft (0–15,240 m) |
| Acoustic Level | 60 dBA |
| Online Thermal Dissipation | 843 Btu/h |
