| Model: | Huawei Next Generation AR1200 Series Router AR1220E |
| Detail: |
AR1220E,2GE COMBO,8GE LAN,2 USB,2 SIC
|
| Product Code | Huawei Router – AR1220E |
| Memory | 1 GB |
| Flash | 512 MB |
| ServiceĀ interfaces (standard configuration) | WAN interfaces: 2 GE combo interfaces
LAN interfaces: 8 10/100/1000M auto-sensing Ethernet electrical interfaces |
| Extended slots | 2 SIC slots |
| Interface number | LAN interfaces: GE0-GE7 |
| Power module type | Built-in AC power module |
| Weight | 12.45 kg |
| Dimensions (W x D x H) | 390.0 mm x 232.5 mm x 44.5 mm |
AED6,299.00
Huawei AR1220EĀ router isĀ next-generation, enterprise-class routers based on the Huawei proprietary Versatile Routing Platform (VRP).

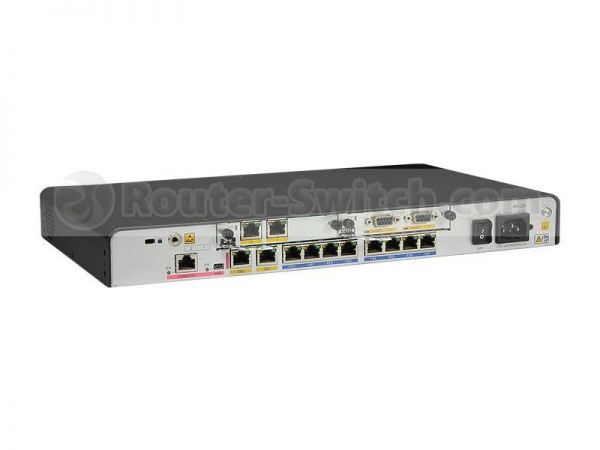

Figure 1 shows the appearance of Huawei Router – AR1220E.
Ā
Figure 2 shows the front panel of Huawei Router – AR1220E.
Ā
Note:
| ā | Two USB interfaces (host) |
| ā” | RST button |
FigureĀ 3Ā shows theĀ backĀ panel of Huawei Router – AR1220E.
Note:
| ā | Two GE combo interfaces |
| ā” | Console interface |
| ā¢ | Mini USB interface |
| ā£ | Eight GE electrical interfaces |
| ā¤ | AC power jack |
| ā„ | Two SIC slots |
Table 2 shows the recommended elements for theĀ Huawei Router – AR1220E.
| Model | Description |
| FE optical transceiver | |
| SFP-FE-LX-SM1310-BIDI | eSFP,FE,BIDI Single-mode module(TX1310/RX1550,15km,LC) |
| eSFP-FE-LX-SM1310 | eSFP,100M/155M,Single-mode Module(1310nm,15km,LC) |
| S-SFP-FE-LH40-SM1310 | eSFP,FE,Single-mode Module(1310nm,40km,LC) |
| GE optical transceiver | |
| SFP-1000BaseT | Electrical Transceiver,eSFP,GE,Electrical Interface Module(100m,RJ45) |
| eSFP-GE-SX-MM850 | Optical Transceiver,eSFP,GE,Multi-mode Module(850nm,0.55km,LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,40km,LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver,eSFP,GE,Single-mode Module(1550nm,40km,LC) |
| WAN interface card | |
| AR-1E3T3M-W | 1-Port Channelized/Unchannelized E3/T3 WAN Interface Card |
| xDSL interface card | |
| AR01SLV1XA | 1-Port VDSL2 over POTS WAN Interface Module |
TableĀ 3Ā shows the comparison between AR1220EĀ andĀ AR0M12VWBA00.
| Model | AR1220E | AR0M12VWBA00 |
| WAN Speed with Services | 400 Mbit/s | 200 Mbit/s |
| Fixed WAN Ports | 2 x GE Combo | 2 x GE |
| Fixed LAN Ports | 8 x GE (can be configured as WAN interfaces) | 8 x FE (can be configured as WAN interfaces) |
| Slots | SIC slots: 2
WSIC slots (default/max): 0/1 |
|
| Memory | 1 GB | 512 MB |
AR1200E Specification |
|
| WAN speed with services | 400 Mbit/s |
| Firewall Performance (large packet) | 1,800 Mbit/s |
| Device Switching Capacity | 8 Gbit/s |
| Slot Switching Bandwidth | SIC & WSIC slots: 2 Gbit/s |
| Number of Recommended Users | 100 |
| Fixed WAN Ports | 2 x GE Combo |
| Fixed LAN Ports | 8 x GE (can be configured as WAN interfaces) |
| SIC Slots | 2 |
| WSIC Slots (default/max) | 0/1 |
| DSP Slots | – |
| Wi-Fi | – |
| USB 2.0 Ports | 2 |
| Mini-USB Ports | 1 |
| Serial Auxiliary/Console Port | 1 |
| Memory | 1 GB |
| Flash | 512 MB |
| Max. Power | 60W |
| PoE Power | – |
| AC Power | 100V to 240V |
| Frequency | 50 Hz/60 Hz |
| DC power | – |
| Dimensions (H x W x D) | 44.5 mm x 390 mm x 220 mm |
| Weight | 12.45 kg |
| Ambient Temperature | 0Ā°C to 45Ā°C |
| Relative Humidity | 5% to 95% (non-condensing) |
