Huawei AR160 Series Router AR161


Model: Huawei AR160 Series Router AR161
Detail:
AR161,1GigabitEthernet WAN,4GigabitEthernet LAN
Product Code Huawei Router – AR161
Memory 512 MB
Flash 512 MB
ServiceĀ interfaces (standard configuration) WAN interfaces: 1 ADSL-B/J interface

LAN interfaces: 4 10/100M auto-sensing Ethernet electrical interfaces

Extended slots Not supported
Interface number LAN interfaces: GE0-GE3
Power module type External power adapter
Weight 2.8Ā kg
Dimensions (W x D x H) 300.0 mm x 216.4 mm x 44.0 mm

1,499.00 د.إ

Huawei AR G3 AR161Ā enterprise router bring good user experience and secure environment, fanless design provide quiet environment and integrated with wireless controller, firewall, dual-WAN support, up to 100Mbps system bandwidth is only a few benefit of this router. Huawei AR G3 AR161 router equips 1 Gigabit Ethernet 10/100/1000 WAN, 4 Gigabit Ethernet 10/100/1000 LAN ports(the interface LAN 0 of which can be used as one WAN interface).Wireless controller functionality build-in can manage wireless AP with rich features of wireless security and centralize management of wired and wireless networks, meet the customers’ requirements of building different scale enterprises networks.

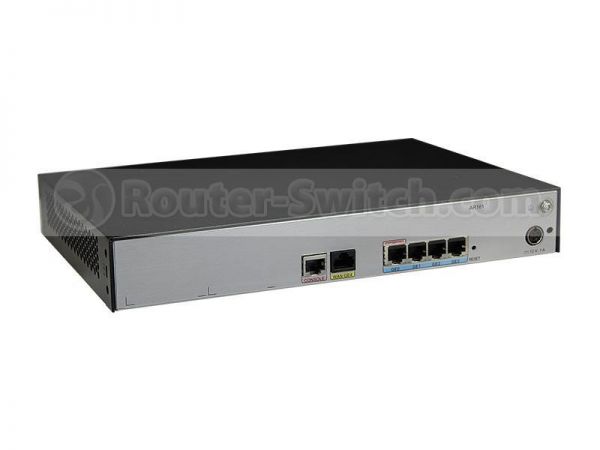

Figure 1 shows the appearance of Huawei Router –Ā AR161.

Ā AR161-appearance

Figure 2 shows theĀ backĀ panel of Huawei Router –Ā AR161.

Ā AR161-back

Note:

ā‘  CON/AUXĀ interface
ā‘” WANĀ interfaces
ā‘¢ 4 FE electrical interfaces
ā‘£ RST button
⑤ Power interface
ā‘„ Jack for power cable locking strap

Compare to Similar Items

TableĀ 2Ā shows the comparisonĀ between AR161 and AR2220E.Ā

Model AR161 AR2220E
SIC Slots 0 4
Memory 512 MB 1 GB
Flash 512 MB 512 MB
Weight 2.8Ā kg 6 kg (13.2 lb)
Dimensions (W x D x H) 300.0 mm x 216.4 mm x 44.0 mm 442.0 mm x 420.0 mm x 44.5 mm
Category:

AR161 Specification

Memory 512 MB
Flash 512 MB
ServiceĀ interfaces (standard configuration) WAN interfaces: 1 ADSL-B/J interface

LAN interfaces: 4 10/100M auto-sensing Ethernet electrical interfaces

Extended slots Not supported
Interface number LAN interfaces: GE0-GE3
Power module type External power adapter
Weight 2.8Ā kg
Dimensions (W x D x H) 300.0 mm x 216.4 mm x 44.0 mm
