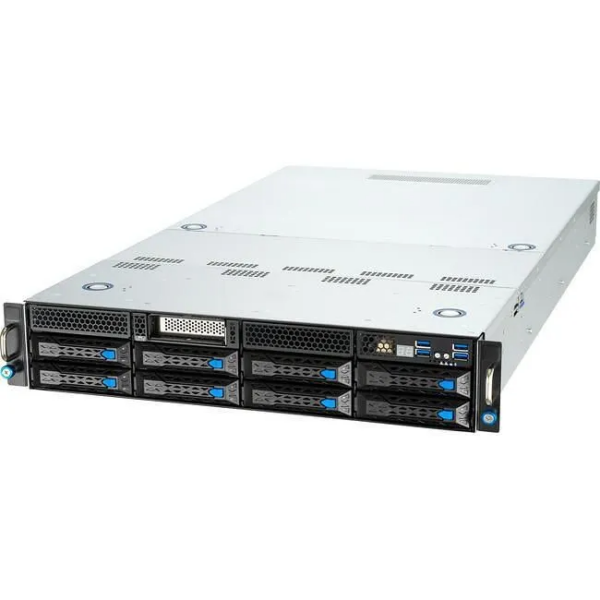

ASUS ESC4000A-E11-22WGP Barebone – 2U – 1x AMD EPYC 7003/7002 – 8x DDR4 – 2x 1GbE – 2200 W – 8x GPU – 4x 3.5″ NVMe/4x SATA

ESC4000A-E11 |AMD EPYC 7003 & 7002 2U single-socket GPU server supports up to 8 single-slot GPUs, 8 DIMM, PCIe 4.0, M.2, NVMe, OCP 3.0, Dual LAN, ASUS ASMB10-iKVM and max. TDP up to 280 W

Key Features

• Up to eleven PCIe® 4.0 slots enables higher bandwidth and improved data transfer rates
• GPU-optimized design allows four double-slot or eight single-slot GPUs, including NVIDIA® A100, Tesla® T4 or Quadro®
• A Xilinx Alveo-qualified server support for Alveo U50 to provide optimized acceleration for workloads across cloud and on-premises data centers
• Supports NVIDIA® NVLink bridge to enable scaling of performance to meet the demands of visual computing workloads
• A choice of PCIe Gen 4.0, OCP 3.0, NVMe and M.2 on the front panel offer flexibility, performance and scalability for changing business needs
• High power efficiency with redundant 2200W or 1600W Platinum power supplies
• ASUS thermal control technology offers more efficient power consumption for large-scale environments
• ASUS performance tuning technology improves workload throughput to achieve optimal server performance
• Onboard ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
• Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
• Two hot-plug, hot-swap fans design for fully redundancy protection and thermal efficiency

Powered by AMD EPYC™ 7003 & 7002 series processors

The AMD EPYC™ 7003 & 7002 processor features the world’s first 7nm datacenter-design and a PCI Express^® 4.0-capable x86 server processor with up to 2X the performance and 4X the floating-point capability. With support for up to 64 cores, 128 threads, 8-channel DDR4 3200, 128 PCIe 4.0 lanes and up to 280 watts of max. thermal design power (TDP), this processor also includes memory and virtualization encryption features to ensure exceptional security.

PCIe 4.0 expansion

PCIe^® 4.0 delivers 16 GT/s bandwidth – double the speed of PCIe 3.0 – while offering lower power consumption, better lane scalability and backwards compatibility. ASUS ESC4000A-E11 features up to eleven PCIe 4.0 slots to support a diverse array of graphics, storage and networking applications, such as HBA/RAID, NIC and InfiniBand (IB) cards.

GPU and FPGA support

ESC4000A-E11 features a powerful GPU architecture that supports up to four double- slot or eight single-slot GPUs in a 2U chassis, including NVIDIA^® A100 and AMD Instinct™ MI100 accelerator to meet the demands of AI and HPC, and to securely run workloads in virtualization environment. It is also a Xilinx Alveo-qualified server to provide optimized acceleration for hybrid cloud environments in financial computing, machine learning, computational storage, and data search and analytics.
