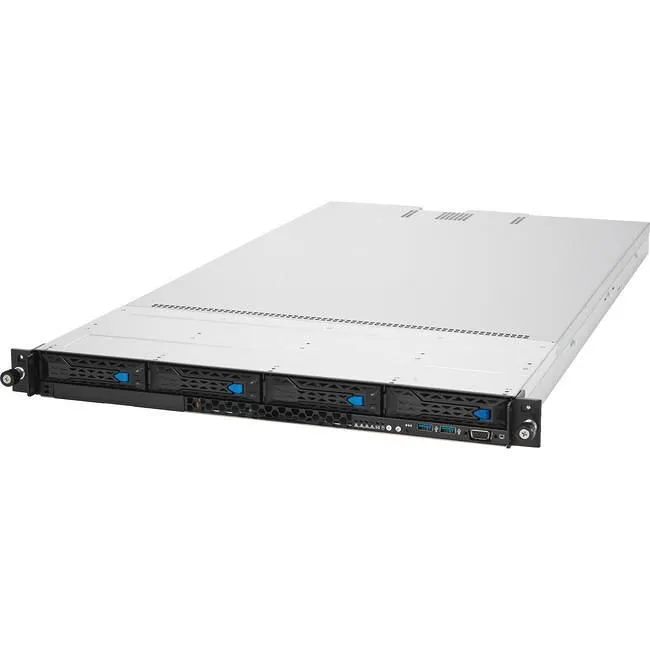

ASUS RS500A-E11-RS4U-WOCPU010Z Barebone – 1U – 1x Socket SP3/LGA-4094 – AMD EPYC 7002/7003 – 4x 3.5″ SATA/SAS – 2x 1GbE – 16x DDR4 – 2x PCIe 4.0 x16

RS500A-E11-RS4U | AMD EPYC™ 7003 1U single-socket server that supports up to 16 DIMM, GPU, 4 NVMe, 3 PCIe 4.0 slots, OCP 3.0, M.2 and ASUS ASMB10-iKVM

Key Features

• Powered by AMD EPYC 7003 processor with 64 cores, 128 threads and support for a maximum TDP of up to 280 watts per socket
• Four all-flash NVMe drives on front panel to enable extensive storage and high-throughput performance
• Up to three PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates
• Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
• Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
• Air cooling with heaksink achieves lower power-usage effectiveness (PUE) and optimized TCO for data centers
• New tool-less design for easy serviceability

AMD EPYC 7003 Series Processors

The latest AMD EPYC™ 7003 series processors are the new standard for modern data centers. AMD was first with X86 multi-chip-module server CPUs and continues to innovate with the 3rd Gen EPYC processors, including up to 32MB of L3 cache per core and synchronized fabric and memory-clock speeds designed for improved performance.

PCIe 4.0 Ready

PCI Express^® (PCIe^®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS RS500A-E11 servers are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.

Scalable Storage Solution

ASUS RS500A-E11 servers feature scalable storage solutions to support maximum performance for data center flexibility, and enable industry-standard SAS/SATA/NVMe interfacing through Broadcom Tri-Mode RAID adapters for increased connectivity and security.

Enhanced Security

ASUS RS500A-E11 servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.

In addition, all RS500A-E11 servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.

OCP 3.0

ASUS RS500A-E11 servers feature the latest OCP NIC 3.0 mezzanine card with PCIe 4.0 bandwidth for a faster time-to-market network solution, delivering the speeds of up to 200 Gbps for high bandwidth and low latency. It also features a too-less, hot-swappable design to simplify installation and serviceability.
