Network Accessories, Network Switches & Routers
ATEN 2port DVI Splitter VS-162
ATEN VS162 2 Port DVI Video Splitter Features:
- Connects computers with DVI graphics to multiple DVI compatible monitors or projectors
- Fully compliant with DVI-Digital and DVI-Analog
- Speaker enabled for audio enjoyment
- Maximize your viewers – Cascadable
- Maintains highest link video resolution (1600 x 1200)
- Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors
- Installs in minutes
AED999.00
Aten 2 Port DVI Video Splitter
The VS162 2-Port DVI Video KVM Splitter from ATEN provides DVI video and audio input signals to 2 DVI video and audio outputs after duplication and boosting. The VS162 video splitter can be cascaded to three levels to handle up to 8 monitors, which makes it a suitable solution for broadcasting environments, company training facilities, classrooms, or power computer users.
Connects computers with DVI graphics to multiple DVI compatible monitors or projectors
Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors
Compliant with DVI-digital and DVI-analog
HDCP compliant
DDC, DDC2, DDC2B compatible (port 1 only)
Speaker-enabled for audio listening
Cascadable to 3 levels to provide up to 8 video signals
Cascade distance from Source to Device – 5.9′; Device to Device – 16.4′; Device to Display – 16.4′
Maintains high single link video resolution
OS Support: Windows 2000, Windows XP, Linux, Mac, and Sun
Quick installation

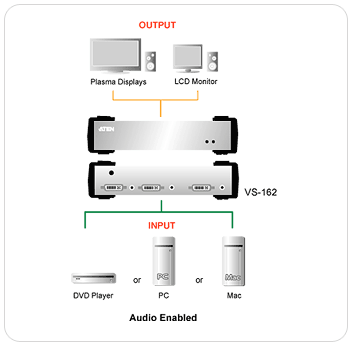

ATEN VS162 2 Port DVI Video Splitter Function Diagram
ATEN VS162 2 Port DVI Video Splitter Package Content:
1 x DVI Video Splitter
1 x Power Adapter (DC 5.3V)
1 x User Manual
| Weight | 0.6 kg |
|---|
ATEN VS162 2 Port DVI Video Splitter Specifications:
| Case | |
| Width | 12.0 in. (30.0 cm) |
| Height | 8.0 in. (20.0 cm) |
| Length | 20.8 in. (53.0 cm) |
| Case Qty. | 5 |
| Video connections | |
| Input | 1 x DVI Female |
| Output | 2 x DVI Female |
| Package Dimensions | |
| Width | 4.0 in. (10.0 cm) |
| Height | 4.0 in. (10.0 cm) |
| Length | 11.0 in. (28.0 cm) |
| Housing | |
| Case | Metal |
| Weight | |
| Case Wt. | 13.6 lb. (6.2 Kg) |
| Package Wt. | 2.3 lb. (1.0 Kg) |
| Unit Wt. | 1.4 lb. (0.6 kg) |
| Dimensions | |
| Depth | 3.5 in. (8.8 cm) |
| Width | 8.3 in. (21.0 cm) |
| Height | 2.2 in. (5.6 cm) |
| Video Resolution | 1600×1200 |
| Power Consumption | DC5.3V, 3.4W |
| Humidity | 0~80% RH, Noncondensing |
| Connectors (Input) | 1 x DVI Female, 1 x Earphone Jack Female |
| Operating Temperature | 32F~122F (0C~50C) |
| Storage Temperature | -4F~140F (-20C~60C) |
| Signal Type | DVI-Digital and DVI-Analog |
| Connectors (Output) | 2 x DVI Female, 2 x Earphone Jack Female |
