ATEN VM5808D 8×8 DVI Matrix Switch with Scaler


Product Features and Benefits

  • 8×8 DVI I/O connections
  • Configuration and Control via pushbuttons / IR Remote Control
  • System Operation via bi-directional RS-232 serial controller / Browser Graphical User Interface (GUI) / Telnet
  • Extends IR transmission via IR extension cable
  • Built-in Scaler on each output port converts input resolutions into the display’s native resolution, supports scaling 1920 x 1200 resolutions up or down
  • Seamless Switch – ATEN FPGA design unifies video formats to provide continuous video streams, real-time switching and stable signal transmissions
  • Video Wall – features up to 8 video wall profiles for custom screen layouts via point-n-click web GUI
  • EDID Expert – configures optimum EDID settings for smooth power-up, high-quality display and use of the best resolution across different screen
  • Firmware Upgradeable
  • Rack Mountable (1U Design)

AED18,999.00

8×8 DVI Matrix Switch with Scaler

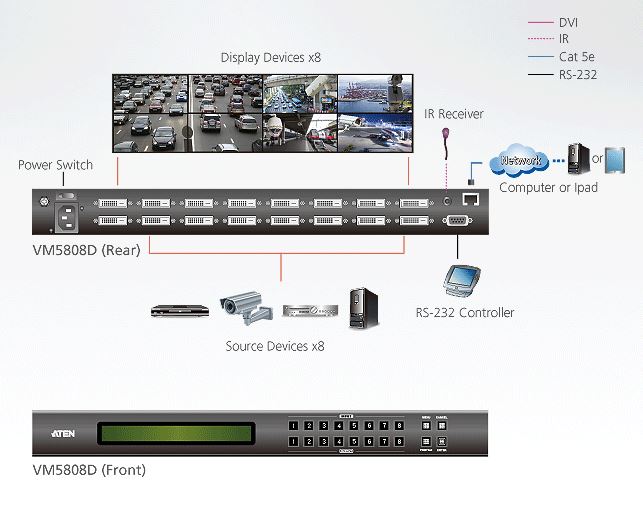

TheĀ VM5808D 8×8 DVI Matrix Switch with ScalerĀ fromĀ AtenĀ is designed to route any of eight DVI video sources to any of eight DVI displays. It also features a front panel LCD for easily viewing all port connections. A built-in scaler enables the switch to convert various input resolutions into various output display resolutions, providing maximum video and picture quality to all displays. The matrix switch’s design includes FPGA architecture for seamless switching, continuous video streams, real-time control, and stable signal transmissions. The switch can integrate video wall functionality with an easy-to-use web GUI, allowing you to create 16 connection profiles that can be customized into different video wall layouts.

The VM5808D includes seamless switching that employs an FPGA matrix architecture to ensure continuous video streaming, real-time control and stable signal transmission. With a built-in high-performance scaler, the VM5808D easily converts various input resolutions into a array of output resolutions, giving viewers the best image quality across all displays. The switch also integrates video wall functionality with an easy-to-use web GUI that lets you create 8 connection profiles for convenient layout customization.

Package Contains

  • 1x VM5808D 8 x 8 DVI Matrix Switch with Scaler
  • 1x Power Cord
  • 1x IR Remote Control
  • 1x IR Receiver
  • 1x Mounting Kit
  • 1x User Instructions



SKU: Aten VM5808D Categories: , Tags: , ,
Weight 3.5 kg
Video Input Ā
Interfaces 8 x DVI-D Female
Impedance 100 Ohm
Max Distance 1.8 m
Video Output Ā
Interfaces 8 x DVI-D Female
Impedance 100 Ohm
Video Ā
Max Data Rate 6.75 Gbps (2.25 Gbps per lane)
Max Pixel Clock 225 Mhz
Compliance HDCP 1.4 Compatible
Max Resolutions 1920 x 1200
Max Distance Up to 5m
Control Ā
RS-232 1 x DB-9 Female. 19200 Baud Rate.
IR 1 x Mini Stereo Jack Female
Ethernet 1 x RJ-45 Female
Power Ā
Connectors 1 x 3-Prong AC Socket
Consumption 120VAC, 34.1W; 230VAC, 34.4W
Environment Ā
Operating Temperature 32-122°F (0-50°C)
Storage Temperature -4-140°F (-20-60°C)
Humidity 0-80% RH, Non-Condensing
Physical Properties Ā
Housing Metal
Weight 7.71 lbs. (3.50 kg)
Dimensions (L x W x H) 17 x 10.22 x 1.73 in. (43.24 x 25.98 x 4.40 cm.)
