Aten Network VM7514 4-Port HdbaseT Input Board 16-Input 16-Output Retial

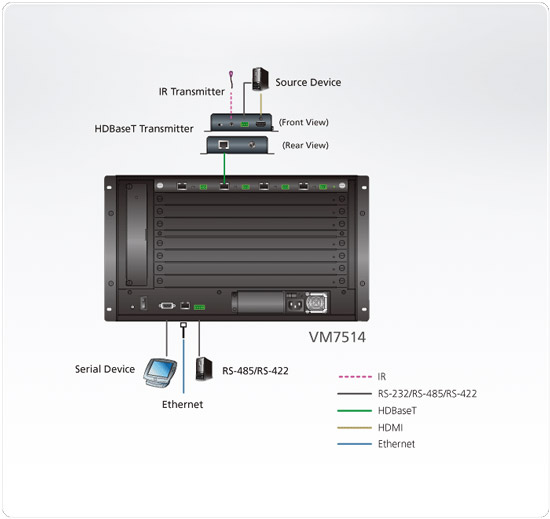

The VM7514 4-Port HDBaseT Input Board offers an easy way route 4 HDBaseT transmitters connected to HDMI sources to 4 HDBaseT receivers connected to HDMI displays, and in combination with the ATEN Modular Matrix Switch provides the ability route up to 16 input and 16 output HDBaseT connections
Features:
- Compatible with the VM1600 and can be mixed with modular I/O boards of any type for optimum flexibility
- Bi-directional RS-232 channel ā allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners
- HDBaseT Connectivity ā extends 4 HDBaseT connections up to 100 meters via single Cat 5e/6 cable
- HDBaseT Anti-jamming ā resists signal interference during video transmission using HDBaseT technology
- Bi-directional IR channel ā IR transmission is processed one direction at a time
- Hot-swappable design for easy integration of I/O boards
Ā
Ā
Specifications:
| Mechanical | Ā |
| Width | 9.4Ā in. (23.7 mm.) |
| Depth | 13.9 in. (35.2 mm.) |
| Height | .9Ā in. (2.25 mm.) |
| Weight | Ā 1.41 lbs. (0.64 kg.) |
| Environmental | Ā |
| Operating Temperature | 0Ā°C to 40Ā°C |
| Storage Temperature | -20Ā°C to -60Ā°C |
| Humidity | 0-80% RH non-condensing |
| Power | 24.5 W |
| Video Output | Ā |
| Interface | 4 x RJ-45 Female (Silver) |
| Impedance | 100 Ī |
| Max. data rate | 10.2 Gbps (3.4 Gbps per lane) |
| Max. pixel clock | 340 MHz |
| Compliance | HDBaseT, HDCP 1.4 compatible Consumer Electronics Control (CEC) |
| Max Resolution | Up to 4K@60 Hz (4:2:0) |
| Max Distance | 100 m (Cat 6a) |
| Control | Ā |
| RS-232 | 4 x Captive Screw Connectors, 3 pole |
| IR | 4 x Mini Stereo Jack Female (Black) |
| Weight | 0.64 kg |
|---|
