ATEN RS-232 to RS-485/RS-422 Bi-directional Converter
ATEN (IC485AI) RS-232 to RS-485/RS-422 Bi-directional ConverterĀ
ATEN’s IC485AI is a 2-way converter converting RS-232 signals into RS-422/RS-485 signals in long-distance application up to 1200m (4000 ft.). Its built-in RS-485 automatic flow and direction monitoring function can suppress signal surge.Ā
ATEN (IC485AI) RS-232 to RS-485/RS-422 Bi-directional Converter Features and Benefits :
- Automatic internal RS-485 bus supervision.
- No external flow control signals for RS-485 required.
- Transient suppression on RS-485 data lines.
- LEDs for easy status monitoring.
- Minimum 2000V isolation protection.
- Up to 115.2 Kbps data throughput.
- DCE / DTE selectable.
- Point-to-Point; Multidrop; and Simplex operating modes.
- Four wire full duplex; two wire half duplex.
- Cable distance of up to 1200 m (4000 ft.)
- OS Compatibility: WIN98ćWIN MEćWIN 2K and WIN XP.

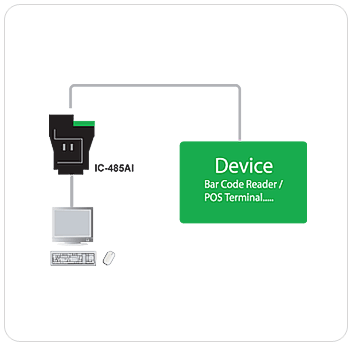

ATEN (IC485AI) RS-232 to RS-485/RS-422 Bi-directional Converter Function Diagram
ATEN (IC485AI) RS-232 to RS-485/RS-422 Bi-directional Converter Package Content :Ā
1x IC-485AI Industry ControlĀ
1x Power AdapterĀ
1x User Manual
ATEN (IC485AI) RS-232 to RS-485/RS-422 Bi-directional Converter Specifications:
Connectors | 1 DB-25 Female (RS-232) | |
RS-485 / RS-422 Four Terminal Block | ||
Grounding Tab | ||
Switches | SW1 | DCE, DTE |
SW2 | Segment 1~3: Baud Rate; Segment 4: Reserved; Segment 5~6: Data Format (bits); Segment 7~8: RS-422 / RS-485 Select |
|
Cable Length | 1200 m [4000′] (max.) | |
Data Rate | Up to 100 Kbps under 1200 m [4000′] | |
Power Consumption | DC9V, 900mW (max.) | |
Housing | Plastic | |
Weight | 60 g | |
Dimensions ( L x W x H ) |
5.4 x 7.45 x 1.85 cm |
