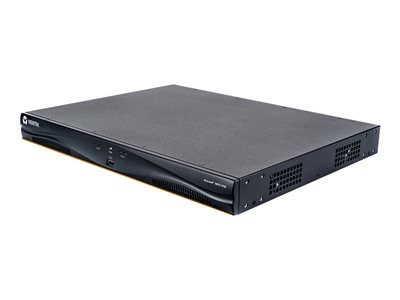

Avocent MergePoint Unity 1016DAC – KVM switch – 16 ports – managed – rack-mountableMPU1016DAC-001

Availability:

10 in stock
Add to Wishlist

AED13,899.00

10 in stock

Add to Wishlist

AVOCENT MPU1016DAC-001 / MergePoint Unity MPU1016DAC Digital KVM Switch / 16 Computer(s) – 1 Local User(s) – 1 Remote User(s) – 2 x Network (RJ-45) – 3 x USB – Rack-mountable



Overview

The Vertiv Avocent MergePoint Unity KVM over IP and Serial Console Switch combines analog and digital technology for flexible, centralized control of data center servers and virtual media. The IP-based system facilitates the operation, activation and maintenance of remote branch offices where trained operators may not be available and delivers flexible management of connected devices and secure remote access from anywhere, any time. It keeps troubleshooting and remediation simple for small data centers, retail stores, healthcare facilities, school districts, government offices, bank branches and other edge deployments requiring centralized management.

Category: Tags: , , ,

Specifications

General
Device Type KVM switch – 16 ports – managed – cascadable
Enclosure Type Desktop, rack-mountable 1U
Subtype KVM
Ports 16 x KVM port(s)
KVM Local Users Qty 1 local user
KVM IP Users Qty 1 IP user
Server Connection Via Twisted Pair CAT5
Keyboard / Mouse Interface USB
Remote Management Protocol SNMP, HTTP, SSH
Encryption Algorithm DES, Triple DES, AES, 128-bit SSL
Authentication Method Secure Shell (SSH), LDAP
Max Resolution 1600 x 1200
Features DHCP support, LDAP support, IPv6 support, Virtual Media support, IPv4 support, IP-based user connection, server connection via twisted pair
Expansion / Connectivity
Interfaces 16 x KVM / serial RJ-45Ā 2 x 1000Base-T RJ-45Ā 5 x USB 2.0 Type AĀ 1 x serial (console) RJ-45 managementĀ 1 x modem RJ-45Ā 2 x serial RJ-45 managementĀ 1 x VGA HD-15
Power
Power Device Internal power supply
Installed Qty 2 (installed) / 2 (max)
Power Redundancy Yes
Power Redundancy Scheme 1+1
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 12 Watt
Miscellaneous
Rack Mounting Kit Included
Compliant Standards UL, VCCI, C-Tick, GOST, cUL, ICES-003, FCC, FIPS 140-2, KCC
Localization North America
Dimensions & Weight
Width 17 in
Depth 13.4 in
Height 1.7 in
Weight 8.6 lbs
Manufacturer Warranty
Service & Support Limited warranty – 2 years
Environmental Parameters
Min Operating Temperature 32 Ā°F
Max Operating Temperature 122 Ā°F
Humidity Range Operating 20 – 80% (non-condensing)
Min Storage Temperature -4 Ā°F
Max Storage Temperature 158 Ā°F
Humidity Range Storage 5 – 95%
General
Authentication Method Secure Shell (SSH), LDAP
Device Type KVM switch – 16 ports – managed – cascadable
Enclosure Type Desktop, rack-mountable 1U
Encryption Algorithm DES, Triple DES, AES, 128-bit SSL
Features DHCP support, LDAP support, IPv6 support, Virtual Media support, IPv4 support, IP-based user connection, server connection via twisted pair
KVM IP Users Qty 1 IP user
KVM Local Users Qty 1 local user
Keyboard / Mouse Interface USB
Max Resolution 1600 x 1200
Ports 16 x KVM port(s)
Remote Management Protocol SNMP, HTTP, SSH
Server Connection Via Twisted Pair CAT5
Subtype KVM
Dimensions & Weight
Depth 13.4 in
Height 1.7 in
Weight 8.6 lbs
Width 17 in
Environmental Parameters
Humidity Range Operating 20 – 80% (non-condensing)
Humidity Range Storage 5 – 95%
Max Operating Temperature 122 Ā°F
Max Storage Temperature 158 Ā°F
Min Operating Temperature 32 Ā°F
Min Storage Temperature -4 Ā°F
Expansion / Connectivity
Interfaces 16 x KVM / serial RJ-45 Ā¦ 2 x 1000Base-T RJ-45 Ā¦ 5 x USB 2.0 Type A Ā¦ 1 x serial (console) RJ-45 management Ā¦ 1 x modem RJ-45 Ā¦ 2 x serial RJ-45 management Ā¦ 1 x VGA HD-15
Manufacturer Warranty
Service & Support Limited warranty – 2 years
Miscellaneous
Compliant Standards UL, VCCI, C-Tick, GOST, cUL, ICES-003, FCC, FIPS 140-2, KCC
Localization North America
Rack Mounting Kit Included
Power
Installed Qty 2 (installed) / 2 (max)
Power Consumption Operational 12 Watt
Power Device Internal power supply
Power Redundancy Yes
Power Redundancy Scheme 1+1
Voltage Required AC 120/230 V (50/60 Hz)
