Axis T8504-R – switch – 4 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • R
  • managed
  • desktop, rack-mountable
  • DC power
  • Switch
  • 4 x 10/100/1000 (PoE+) + 2 x combo Gigabit Ethernet/Gigabit SFP
  • PoE++ (240 W)
  • for AXIS A1610, C1410, D3110, M3215, P1385, Q3538, W400; Camera Station S1216, S1232, S1296

AED4,299.00

Add to Wishlist

Know your gear

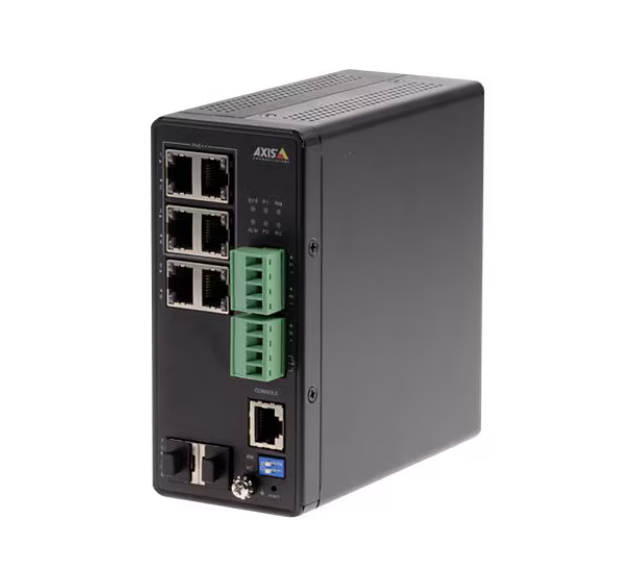

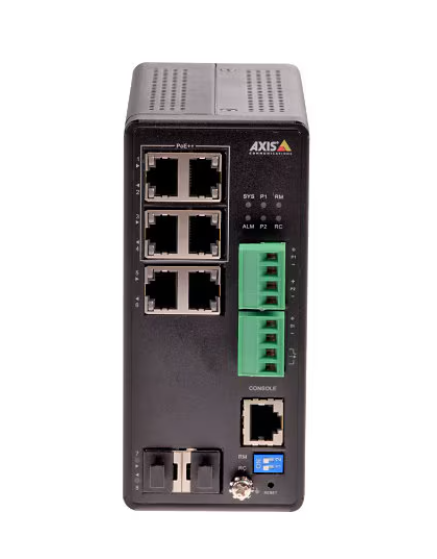

AXIS T8504-R Industrial PoE Switch is a 4-port managed industrial PoE++ Gigabit switch. In addition, the switch is equipped with two RJ45 and two SFP data ports that allows for extra devices to be connected. The switch uses the same intuitive administrator interface as AXIS T85 PoE Network Switch Series. The ruggedized switch is perfect for challenging environments when mounted inside a surveillance cabinet. It is designed to withstand shock, vibrations and extremely high and low temperatures, making it perfect for high demanding installations such as alongside highways and tunnels.
Category: Tag:
Category Details
Overview
Brand Axis
Product Line Axis
Model T8504-R
Manufacturer Axis Communications
Network & Communication
Compliant Standards IEEE 802.1Q, IEEE 802.1x, IEEE 802.3at, UPnP
Features 802.1x authentication, ACL support, ARP support, BPDU, DHCP server/snooping/support, Fanless, HTTPS encryption, ICMP, IP address filtering, IPv4/IPv6 support, LACP, LLDP/LLDP-MED, MSTP support, NAC, NTP, Private VLAN, QoS, RRPP support, RSTP support, STP support, Surge protection, VLAN support
Form Factor Desktop, Rack-mountable
Jumbo Frame Support 9216 bytes
MAC Address Table Size 8K entries
Manageable Yes
PoE Budget 240 watt
Ports 4
Power Over Ethernet (PoE) PoE++
Product Type Switch
Remote Management HTTP, HTTPS, NTP, SMTP, SNMP 1/2c/3, SSH
Routing Protocol IGMP
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Connectivity
Interface Provided 1 x console, 2 x 10/100/1000 Base-T RJ-45, 2 x SFP, 4 x 10/100/1000 Base-T RJ-45 PoE
Port Quantity 4
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) Combo Gigabit Ethernet/Gigabit SFP
Technical Information
Max Operating Temperature 167 degrees Fahrenheit
Max Storage Temperature 185 degrees Fahrenheit
Min Operating Temperature -40 degrees Fahrenheit
Min Storage Temperature -40 degrees Fahrenheit
Operating Humidity 5 – 95% (non-condensing)
Product Information
Packaged Quantity 1
Performance Switching capacity: 16 Gbps, Throughput: 11.9 Mpps
Ports (2nd) Quantity 2
Included Items
Included Accessories Mounting brackets
Dimensions & Weight
Height 5.1 inch
Weight 21.16 ounce
Width 2.4 inch
Depth 5.3 inch
Physical Characteristics
Color Black
Color Category Black
Certifications & Listings AS/NZS CISPR 32 Class A, EN 50121-4, EN 55032 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, EN55024, FCC Part 15 B Class A, ICES-003 Class A, IEC 60068-2-27, IEC 60068-2-31, IEC 60068-2-6, IEC 60950-1, IEC 62236-4, NEMA TS-2-2003 v02.06, Subsection 2.2.8, NEMA TS-2-2003 v02.06, Subsection 2.2.9, RCM, UL 60950-1, VCCI Class A
ENERGY STAR Certified No
