Black Box Industrial Managed Ethernet PoE+ Switch – switch – 12 ports – managed


Quick tech specs

  • Provides eight 10/100/1000-Mbps PoE+ RJ-45 ports and four multispeed SFP slots
  • Offers link loss recovery of <20-msec
  • Rated for extreme temperatures of -40 to +75° C
  • IP30-rated for shock and vibration protection
  • Bandwidth rate control,traffic prioritization,and quality of service
  • PoE 802.3af and PoE+ 802.3at compatible
  • SFP ports enable Gigabit fiber uplinks over long distances
  • Dual DC power inputs for redundancy
  • Manage through a Web interface,SNMP,or command-line interface

6,499.00 د.إ

Know your gear

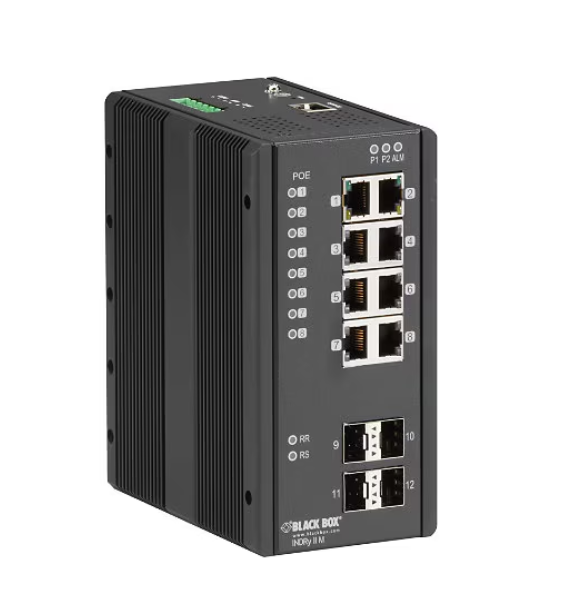

PoE+ and SFP ports for flexibility.
This switch has eight 10/10/1000-Mbps PoE/PoE+ copper ports and four SFP ports for uplinks. This way you can power distant access points, security cameras, and other industrial equipment over the copper Ethernet lines at the far edges of your network where it’s impractical to run electrical wires. The SFP fiber uplinks give you almost unlimited fiber distance options, depending on the SFP.

Maximize uptime.
Advanced management features help minimize network downtime by enabling you to remotely diagnose and manage network problems. And you’ll eliminate the need to send IT technicians on site—thus lowering costs.

The switch is fully manageable through SNMP, a Web browser, Telnet, or a console port. Control the bandwidth on each port individually and set up Quality of Service (QoS) priority queuing for critical applications.

The switch supports port-based VLAN and IEEE 802.1Q VLAN tagging, MAC-based trunking, IP-multicast IGMP snooping, rapid spanning tree for redundancy. Plus, it has 802.1x port-based authentication for security.

Fast failovers.
The switch gives you maximum network flexibility: Spanning Tree Protocol (STP/RSTP), Link Aggregation Control Protocol, and a ring protocol. It offers a 20 millisecond or less failover.

Extreme applications.
Encased in an IP30-rated metal case, this switch withstands extreme temperatures from -40°C to +75°C (-40° F to +167° F). Use it for:

  • Security and surveillance, particularly to backhaul IP security camera data.
  • Military applications, especially in ships and other vehicles.
  • Factory automation for controlling machinery, PLCs, motor drives, sensors, counters, inspection cameras, and packaging equipment.
  • Oil and gas fields or remote equipment monitoring and control.
  • Building automation for controlling HVAC and lighting systems.

Installation options.

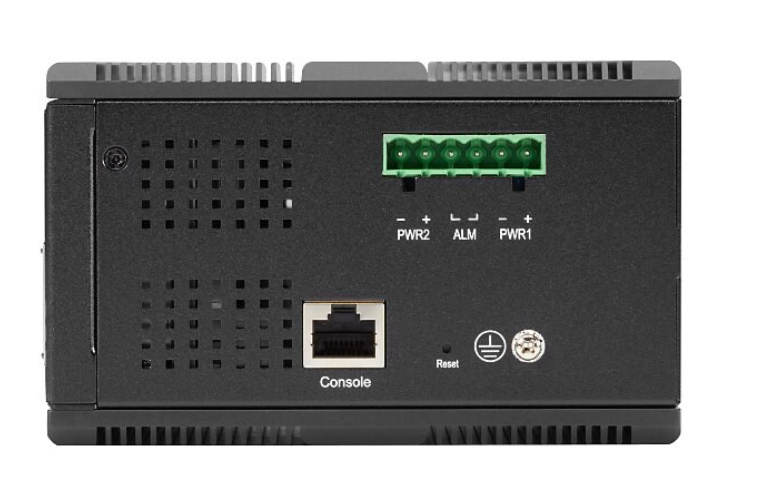

The switch features redundant power inputs and includes DIN-rail and panel-mount kits. The power supplies (MDR-40-48 and SDR-240-48) are sold separately. The switch also includes a serial cable (RJ-45/DB9) for the console connection.

This product is covered by one of more of the following: United States Patent Nos. 7,457,250; 8,902,760; and/or 9,019,838.

SKU: LIE1014A Category: Tag:
Category Details
Overview
Brand Black Box
Product Line Black Box Industrial Managed Ethernet PoE+ Switch
Manufacturer Black Box
Memory
RAM Installed 512 kilobyte
Network & Communication
Compliant Standards IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Features Back Pressure Support, DHCP support, Flow control, Full duplex mode, Half duplex mode, IGMP filtering, IGMP snooping, IGMP throttling, IP address filtering, LACP, LLDP support, MAC address filtering, MIB, MSTP support, QoS, RADIUS support, RSTP support, SNTP support, STP support, Store and forward, SPQ, Syslog support, Tagged VLAN, Traffic shaping, ToS, VLAN support, WRR queuing
Form Factor Desktop, DIN rail mountable, Wall-mountable
Jumbo Frame Support 9KB
MAC Address Table Size 8K entries
Manageable Yes
Ports 12
Power Over Ethernet (PoE) PoE+
Product Type Switch
Remote Management CLI, HTTPS, RMON 1/2/3/9, SNMP 1/2c, SSH, Telnet, TFTP
Routing Protocol IGMP, IGMPv2
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Connectivity
Interface Provided 1 x console RJ-45, 4 x SFP, 8 x 1000Base-T RJ-45 PoE+ (30 W)
Port Quantity 8
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) SFP (mini-GBIC)
Power
Power Supplies Installed 2
Technical Information
Max Operating Temperature 167°F
Min Operating Temperature -40°F
MTBF 25 Year
Operating Humidity 5 – 95%
Product Information
Capacity IGMP groups: 255, Queues per port: 4, VLANs supported: 256
Device Type External power adapter
Packaged Quantity 1
Ports (2nd) Quantity 4
Dimensions & Weight
Height 6.1 inch
Width 2 inch
Depth 4.3 inch
Physical Characteristics
Color Category Black
Certifications & Listings CISPR 22 Class A, EN 61010-1, EN55022, FCC Part 15, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IP30, RoHS, UL 508, WEEE
EPEAT Compliant No
TCO Certified No
