BRESSER Science Infinity Microscope 57-60700

Availability:

10 in stock


د.إ5,499.00

10 in stock

BRESSERĀ Science Infinity Microscope



Product Highlights

  • Siedentopf Interpupillary Adjustment
  • DIN 4x, 10x, 40x, and 100x Objectives
  • 10x Wide Field Eyepieces
  • 40x, 100x, 400x, and 1000x Magnification
  • Infinity-Corrected Optics
  • Fine/Coarse Focusing and Diopter
  • Kohler LED Illumination/Abbe Condenser
  • Precision Stage/Coaxial Vernier Controls
  • Ball-Bearing Nosepiece Mount
  • Aluminum Frame

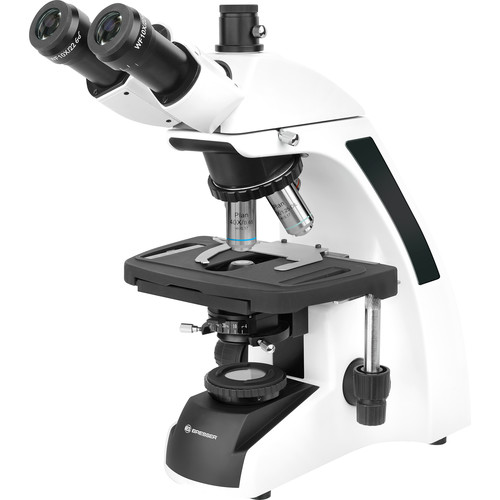

Advance your research, career goals, or hobby pursuits using theĀ Bresser Science Infinity Microscope. This trinocular microscope with an inclined rotating head offers users a comprehensive set of features that are more than enough for most scientific and lab activities. The Siedentopf-type head allows each user to obtain a comfortable interpupillary distance quickly and easily by twisting oculars up or down and does not require refocusing the microscope. Outfitted with semi-plan objectives and high-quality oculars, the scope generates images with low color distortion and high sharpness in 80% of the viewable field. Furthermore, the color-coded objectives comply with the DIN standard so they can be interchanged with other such objectives to give you extra options. The infinity-corrected optical design will provide you with sharp, clear, and high-resolution images at different magnifications and allow you to place filters, polarizers, beam splitters, and other optical elements into the beam path without introducing much distortion or defocusing. For easy capturing of images and videos of your discoveries without disrupting your viewing, the scope has a third optical tube for attaching a C-mount camera.

Many advanced modern microscopes provide users with precision motion stages for accurately positioning samples under the objective, and this Science Infinity is no exception. You can place your slides on a rectangular stage and use a metal bracket to secure them. To move your slides under the objective, it offers a coaxial precision rack-and-pinion Vernier motion control on the right side that can be operated with one hand. The stage also has two rulers, one for each axis, to enable you to note positions and make measurements.

For continual precision and durability during the lifetime of this scientific tool, it is outfitted with a durable aluminum frame. The frame features a gray finish and rubberized and polymer parts and coverings for better tactile contact and comfort. It also has knurled knobs and adjustment rings for a secure grip. To ensure stability on your workbench or lab table, it has rubberized feet.

Optical Performance
  • Trinocular rotating head
  • Infinity-corrected optics ensure high resolution and allow use of filters and beam splitters
  • DIN 4x, 10x, 40x, and 100x semi-plan achromatic objectives
  • 100x objective needs to be used with immersion oil to prevent crashing into slides
  • Two 10x WF eyepieces
  • Fine and coarse focusing
  • Diopter correction
  • Siedentopf interpupillary adjustment
  • Interpupillary range from 55mm to 75mm
  • Third optical tube is compatible with C-mount cameras
  • 22mm eye relief
Kohler Illumination
  • Transmitted illumination type
  • 3.0W LED bottom lamp
  • Integrated luminous field diaphragm
  • 1.25 NA Abbe condenser with an iris diaphragm
  • Adjustable brightness via a rheostat
Mechanical Stage
  • Two-axis coaxial motion control
  • Metal position rulers, one for each axis
Construction Details
  • Durable aluminum frame
  • Polymer coverings for tactile contact
  • Arched back can be used as a handle
  • Rubberized feet for stability on tables



SKU: 57-60700 Category: Tags: ,

BRESSER Science Infinity Specs

Microscope Type Compound
Head InclinedĀ Trinocular
Diopter Correction Yes
Nosepiece 4-Position Nosepiece
Imaging
Optical Magnification 40x, 100x, 400x, 1000x
Objective 4x, 10x, 40x, 100x
Eyepiece 10xĀ Wide Field
Eyepiece Tube Diameter 1.2″ / 30 mm
Focusing Coarse, Fine
Illumination
Illumination Type LED (3 W)
Condenser 1.25 Numerical Aperture (NA)Ā Abbe
Dimmer Yes
General
Interpupillary Adjustment 55 to 75Ā mm / 2.1 to 3″
Dimensions L: 15.4 x W: 8.1 x H: 15.6″ / L: 39.0 x W: 20.5 x H: 39.5Ā cm
Weight 15.3Ā lb / 6.9Ā kg
