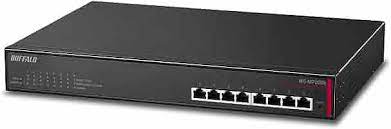

Buffalo BS-MP2008 8-Port Ethernet Switch

Add to Wishlist

Interface Types:Ā Ethernet RJ45

Electrical Interface:Ā Ethernet 10Gigabit – 10Gbps

On-Board Cache:Ā 2MB

Bays/Ports/Slots:Ā 8

U Height:Ā 1U

Voltage:Ā 110-240V Multi

AED3,499.00

Add to Wishlist

Buffalo BS-MP Series BS-MP2008 1U 8-Port Multi GbE Full Duplex Ethernet Switch – Brand New

Buffalo BS-MP Series BS-MP2008 1U Rackmountable 8-Port Multi Gigabit Full Duplex Ethernet Switch with Green Ethernet technology – Brand New

BS-MP Series
10Gigabit Layer2 Switches

Finally, a value switch scalable to 10GbE
Buffaloā€™s BS-MP series of 10GbE switches offers an easy, cost-effective and energy-efficient way to extend your business network at blazing speeds. Plug and play installation requires no additional software or configuration; simply plug your network-ready devices into one of the available Ethernet ports. Each AUTO-MDIX port automatically detects and configures the correct connection while optional jumbo frame support and full duplex operation provide maximum performance. This switch is a perfect complement to the TeraStation 5010 line of NAS devices which has up to 2 native 10GbE ports and is compatible to 2.5, 5 and 10 GbE.

Along with 802.3az Green Ethernet technology, the BS-MP series includes intelligent Power Control, an energy conservation feature that monitors the activity status of each port to reduce the total power consumed. Its durable, metal chassis has holes and comes with rack mounting accessories for easy wall- /rack-mounting or rubber feet for placement on a desktop.

With multi gigabit options of 2.5, 5, and 10 GbE speeds, eco-minded operation, performance-minded features and a 3-year warranty, Buffaloā€™s BS-MP series of switches is a perfect network extension for your business.

Features and Benefits

  • Eight/twelve 10GbE ports
  • Multi gigabit options of 2.5, 5, and 10GbE speeds
  • 802.3az Green Ethernet technology
  • Automatic energy conservation feature reduces total power consumption
  • Auto-MDIX provides fast plug and play setup with any Ethernet cable
  • Durable metal chassis
  • Loop prevention or detection
  • VLAN Management
  • QoS
  • Link Aggregation
  • IGMP snooping
  • Traffic Management
SKU: BS-MP2008 Category:
BS-MP Series
10Gigabit Layer2 Switches
Model Number BS-MP2008
SPECIFICATIONS
Interface IEEE802.3u (100BASE-TX), IEEE802.3ab (1000BASE-T), IEEE802.3bz (2.5GBASE-T, 5GBASE-T) IEEE802.3an (10-GBASE-T)
Transmission speed 100Mbps (100BASE-TX), 1000Mbps (1000BASE-T), 2.5/5Gbps (NBASE-T), 10Gbps (10GBASE-T)
Data transfer method Store-and-Forward
Latency 10Ī¼sec
Buffer capacity 2MBytes
Backplane bandwidth 160Gbps
Data transfer rate 80Gbit/s
Adress tables 16000 entries
Number of Ports 100M/1000M/2.5/5/10G Full-Duplex 8 ports (all ports Auto-MDIX function deployment)
Applicable cable 100BASE-TX: UTP category 5
1000BASE-T: UTP category 5e or better
10GBASE-T: UTP category 6a or better
Transmission distance IUp to 100m
Terminal shape RJ-45 type 8 terminal
Management function English, German, French Web configuration interface
Support function Jumbo Frame 9,216Byte support, Loop detection & prevention function, Bad packet filtering, VLAN, QoS, Link Aggregation
Security feature User name, password; MAC address filter
Power-supply voltage 100-240V, 50/60Hz
Power consumption 31W maximum
Quiescent current 0.490A maximum
Calorific value 111.6kJ/h maximum
Dimensions (WƗDƗH) 330 x 230 x 44 mm
Weight 2400g
Operating environment 0 ~ 50Ā° Celsius, (non-condensing) 10-85% humidity
Approvals VCCI Class A, FCC / IC Class A, UL, CE, CB
Supported Standards IEEE802.3an (10GBASE-T)
IEEE802.3bz (2.5GBASE-T/5GBASE-T)
IEEE802.3ab (1000BASE-T)
IEEE802.3u (100BASE-TX)
IEEE802.3az EEE Idlingstop
Auto-MDIX
19-inch rack mount Support (mounting bracket included)



ROHS Compliant

Weight:Ā 6Ā lb
