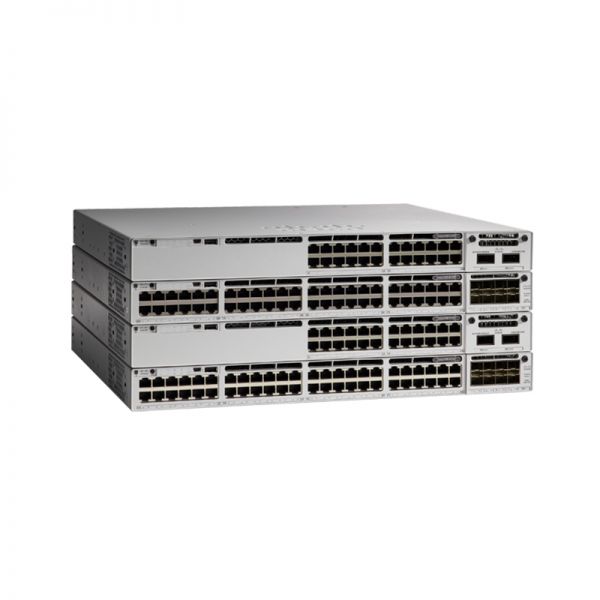

C9300L-48PF-4X-A – Cisco Catalyst 9300L Switches

Add to Wishlist
Model: C9300L-48PF-4X-A – Cisco Catalyst 9300L Switches
Detail:
Catalyst 9300 48-port fixed uplinks Full PoE+, 4X10G uplinks, Network Advantage

AED39,399.00

Add to Wishlist

Cisco Catalyst 9300 Series is the next generation of the industry’s most widely deployed stackable switching platform. Built for security, IoT, and the cloud, these network switches form the foundation for Cisco’s Software-Defined Access, our leading enterprise architecture. Cisco Catalyst 9300L switches are the Catalyst 9300 switches with fixed modules.

The Cisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco’s lead enterprise architecture. At up to 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

The Catalyst 9300 Series is designed for Cisco StackWise technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower, which delivers high-density Cisco Universal Power over Ethernet (Cisco UPOE) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.

Category: Tags: , , ,

BrandCisco
Product LineCisco Catalyst
Model9300L
EditionNetwork Essentials
ManufacturerCISCO DS HARDWARE DIRECT

Flash Memory Installed16 GB
RAM Installed8 GB

Advanced SwitchingLayer 3
Compliant StandardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features16MB packet buffer, 802.1x authentication, Cisco StackWise Technology, Class of Service (CoS), Committed Information Rate (CIR), Control plane protection (CoPP), DiffServ Code Point (DSCP) support, Embedded Event Manager (EEM), Energy Efficient Ethernet, First Hop Security (FHS), Flexible NetFlow (FNF), MACsec support, Management Information Base (MIB), NetFlow, Protocol Independent Multicast (PIM), PVLAN support, PXE support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Remote Switch Port Analyzer (RSPAN), Shaped Round Robin (SRR), Switched Port Analyzer (SPAN)
Form Factor (Hubs & Switches)Rack-mountable
Jumbo Frame Support9198 bytes
MAC Address Table Size32000 entries
PoE Budget505 watt
Ports48
Power Over Ethernet (PoE)PoE+
Product TypeSwitch
Remote ManagementCLI, NETCONF, RESTCONF, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3
Routing ProtocolEIGRP, EIGRP for IPv6, MSTP, OSPF, PIM-SM, PIM-SSM, Policy-based routing (PBR), RIP-1, RIP-2, RIPng, VRRP
StackableStackable
SubcategoryNetwork hubs and switches
Switching TypeGigabit Ethernet

Interface Provided4 x 10GBase-X SFP+ uplink, 48 x 1000Base-T RJ-45
Port Quantity48
Port Type10/100/1000 (PoE+)
Ports Type (2nd)10 Gigabit SFP+ (uplink)

Frequency50 – 60 hertz
Hot-PlugHot-plug
Power Provided715 watt
Power Supplies Installed1
Power Supplies Supported2
Redundant Power SupplyOptional

Humidity Range Storage5 – 90% (non-condensing)
Max Storage Temperature158 degree Fahrenheit
Min Storage Temperature-40 degree Fahrenheit
MTBF309,020 Hours
Operating Humidity5 – 90% (non-condensing)

CapacityACL scale entries: 5120, IPv4 routes: 32000, IPv6 routes: 16000, Multicast scale: 8000, QoS scale entries: 5120, Routed ports: 416, Switched virtual interfaces (SVIs): 1000, VLANs supported: 4094
Device TypeInternal power supply
Packaged Quantity1
PerformanceForwarding rate with stacking: 369.05 Mpps, Forwarding rate: 130.95 Mpps, Switching capacity with stacking: 496 Gbps, Switching capacity: 176 Gbps
Ports (2nd) Quantity4

Height16.1 inch
Weight15.5 lbs
Width17.5 inch
Depth1.7 inch

Color CategoryGray

Compliant StandardsAS/NZS 3548 Class A, AS/NZS 60950-1, BSMI Class A, CAN/CSA-C22.2 No. 60950-1, CCC, CISPR 22 Class A, CISPR 24, CISPR 32 Class A, CISPR 35, CNS 13438, EN 300 386, EN 55022 Class A, EN 55032 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN55024, FCC CFR47 Part 15 B Class A, ICES-003 Class A, IEC 60950-1, KN32, KN35, RoHS 5/6, TCVN 7189 Class A, TCVN 7317, UL 60950-1, V-3 Class A, VCCI Class A
ENERGY STAR Certified No

Service & Support DetailsLimited warranty – advance parts replacement – lifetime – response time: next business day
Limited Warranty Limited lifetime warranty
