CAD GXLUHB UHF 2-Channel Handheld & Bodypack Wireless System (L: 567.1, 593.5 MHz)

Add to Wishlist

899.00 د.إ

Add to Wishlist
Key Features
  • L Frequency Band
  • Handheld Mic Transmitter
  • Bodypack Transmitter
  • 2-Channel Receiver
  • Channel & Mix Outputs Options
  • Headworn Mic
  • Guitar Cable
  • Transmitters Powered by 2x AA Batteries

CAD GXLUHBĀ Overview

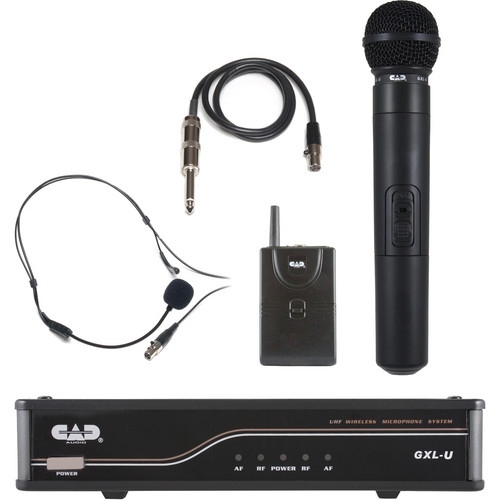

TheĀ GXLUHB UHF 2-Channel Wireless SystemĀ fromĀ CADĀ includes an RXGXLU 2-channel wireless receiver, a TXBGXLU bodypack transmitter, a TXHGXLU handheld mic transmitter, a WXHM headworn mic, and a WXGTR guitar cable. It is set to CAD’s L frequency band at 567.1 and 593.5 MHz.

Both the bodypack and handheld transmitters are powered by 2 AA batteries for approximately 10 hours of operation. The included headworn mic and guitar cable allow you to use the bodypack transmitter for vocals as well as instruments.

The receiver features individual channel outputs, XLR for channel A and a 1/4″ out for channel B in addition to an XLR mix output.

  • Two discrete channels of wireless packaged in one receiver chassis
  • Antenna that recesses when not in use
  • Each channel has RF and AF indicator lights that indicate the presence of connectivity and audio source
  • Three output options on the receiver for maximum performance and flexibility of use:
    • Balanced XLR discrete output
    • Balanced XLR mixed output
    • 1/4″ output for output to a guitar amp or mixer equipped with 1/4″ input connections
  • Handheld and bodypack transmitters outfitted with mute and on positions for flexibility of use
  • Handheld transmitter features battery life indicator
SKU: GXLUHB-L Category: Tag:

CAD GXLUHBĀ Specs

Receiver
Maximum Output Level 6 dBV
Output Impedance 800 Ī©
Frequency Response 20 Hz to 20 kHz
Frequency Band UHF
RF Sensitivity -105 dBm
Output 2x XLR-M
1x 1/4″ (6.3 mm)
Transmitter
Operating Principle Handheld: Moving coil dynamic
Bodypack: N/A
Polar Pattern Handheld: Supercardioid
Bodypack: N/A
Frequency Response Handheld: 80 Hz to 16 kHz
Bodypack: 40 Hz to 20 kHz
Sensitivity Handheld: -33 dBV (22 mV) @ 1 Pa
Bodypack: N/A
Maximum SPL Handheld: 135 dB
Bodypack: N/A
Dynamic Range Handheld: > 105 dBA
Bodypack: > 105 dBA
RF Output Handheld: 10 mW
Bodypack: 10 mW
Modulation Handheld: FM
Bodypack: FM
Maximum Input Level Handheld: N/A
Bodypack: Mic input, -6 dBV; Instrument input, +10 dBV
Power Requirements Handheld: 2x AA alkaline or rechargeable
Bodypack: 2x AA alkaline or rechargeable
Battery Life Handheld: >10 hours (alkaline)
Bodypack: >10 hours (alkaline)
Packaging Info
Package Weight 2.92 lb
Box Dimensions (LxWxH) 15.3 x 11 x 3.1″
