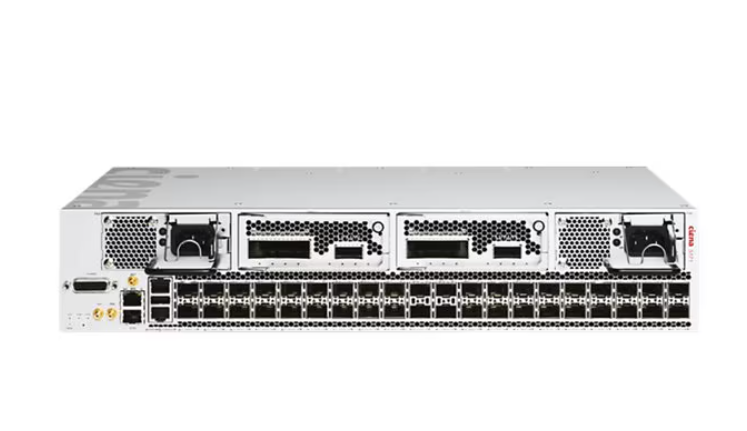

Ciena 5171 Service Aggregation Switch – switch – 40 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • managed
  • rack-mountable
  • 4 x 25 Gigabit SFP28 + 36 x 1 Gigabit / 10 Gigabit SFP+

AED85,199.00

Add to Wishlist

Know your gear

The Ciena 5171 Service Aggregation Switch enables 100GbE service delivery or 10GbE and 25GbE service aggregation in an energy- and footprint- efficient form factor. It is purpose-built to provide seamless MEF-compliant along with L2 and L3 services over a carrier-class, connection-oriented infrastructure for controlled and uncontrolled environments using Ethernet, MPLS-TE, MPLS-TP and Ciena’s Adaptive IPTM.

SKU: 170-5171-900 Category: Tag:
Overview
Brand Ciena
Product Line Ciena
Model 5171 Service Aggregation Switch
Manufacturer Ciena
Network & Communication
Compliant Standards IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3ba, IEEE 802.3z, ITU-T G.8262
Features AIS (Alarm Indication Signal), Ciena’s Service-Aware Operating System (SAOS), Class of Service (CoS), Connectivity Fault Management (CFM), DHCP client, DNS client, DWDM, Firewall protection, Hierarchical Quality of Service (HQoS), IPv6 management, Link Aggregation Control Protocol (LACP), Link Down Indication (LDI), LLDP support, Management Information Base (MIB), Management Information Base (MIB) II, MPLS support, NTP client, Port mirroring, Quality of Service (QoS), Remote Defect Indication (RDI), Remote Link Loss Forwarding (RLLF), Syslog support, Timing support, Virtual Circuit Connectivity Verification (VCCV), Virtual Link Loss Indication (VLLI), Virtual Private LAN Service (VPLS), Zero-touch provisioning (ZTP)
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 10222 bytes
Manageable Yes
Ports 40
Product Type Switch
Remote Management CLI, ICMP, IPv4, IPv6, NTP, RADIUS, RMON, SFTP, SNMP 1, SNMP 2c, SNMP 3, SSH-2, Telnet, TFTP
Routing Protocol Bidirectional Forwarding Detection (BFD), IGMPv3, IS-IS, MPLS, MPLS-TP, OSPF, OSPFv2, RSVP
Subcategory Network hubs and switches
Switching Type 25 Gigabit Ethernet
Expansion Slots
Expansion Slots 2 (total) / 2 (free) x expansion slot
Connectivity
Interface Provided 1 x BITS RJ-45, 1 x management (Gigabit LAN) RJ-45, 1 x serial (console) RJ-45, 1 x USB, 36 x 10GBase-X SFP+, 4 x 25Gbit LAN SFP28
Port Quantity 4
Port Type 25 Gigabit SFP28
Ports Type (2nd) 1 Gigabit / 10 Gigabit SFP+
Technical Information
Built-in Devices GPS
Max Operating Temperature 149°F
Max Storage Temperature 158°F
Min Operating Temperature -40°F
Min Storage Temperature -40°F
Operating Humidity 5 – 90% (non-condensing)
Product Information
Authentication Method RADIUS, Secure Shell v.2 (SSH2), TACACS+
Packaged Quantity 1
Ports (2nd) Quantity 36
Dimensions & Weight
Height 3.5 inch
Height (Rack Units) 2
Weight 34.17 lbs
Width 17.5 inch
Depth 10 inch
Physical Characteristics
Color Category Gray
Certifications & Listings
Compliant Standards ANSI/UL 60950-1 Second Edition, CAN/CSA C22.2 No. 60950-1-07, CISPR 22 Class A, CISPR 24, CISPR 32 Class A, EMC 2014/30/EU, EN 300 386, EN 55032, EN 60950-1, EN55024, ETSI 300 019-1-2, ETSI 300 019-2-2, ETSI EN 300 019-3-2, ETSI EN 300 132-2, ETSI EN 300 132-3, FCC Part 15 A, GR-1089, Issue 6, GR-63-CORE, Issue 4, ICES-003 Class A, IEC 60825-1:2007 Second Edition, IEC 60825-2:2004 Third Edition, LVD 2006/95/EC, NEBS level 3, NOM, NRTL, RoHS 2, VCCI, VCCI Class A, WEEE 2002/96/EC
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
