The Cisco 3845 Integrated Services Router is part of the Cisco 3800 Integrated Services Router Series which complements the Integrated Services Router Portfolio. The Cisco 3845 Integrated Services Router provides the following support: – Wire-speed performance for concurrent services such as security and voice, and advanced services at full T3/E3 rates – Enhanced investment protection through increased performance and modularity – Enhanced investment protection through increased modularity – Increased density through High-Speed WAN Interface Card Slots (four) – Enhanced Network Module Slot – Support for over 90 existing and new modules – Support for majority of existing AIMs, NMs, WICs, VWICs, and VICs – Integrated GE ports with copper and fiber support – Optional Layer 2 switching support with Power over Ethernet (PoE) (as an option) , supports the 36-port Cisco EtherSwitch module (NMD-36ESW) Security – On-board encryption – Support of up to 2500 VPN tunnels with the AIM-HPII-PLUS Module – Antivirus defense support through Network Admission Control (NAC) – Intrusion Prevention as well as stateful Cisco IOS Firewall support and many more essential security features Voice Analog and digital voice call support Optional voice mail support Optional support for Cisco CallManager Express for local call processing in stand alone business for up to 240 IP Phones Optional support for Survivable Remote Site Telephony support for local call processing in small enterprise branch offices for up to 720 IP phones
Network Switches & Routers

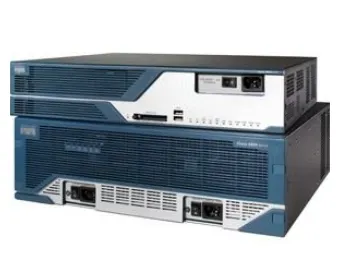

Cisco 3845, Refurbished wired router Blue, Stainless steel
2 x Gigabit Ethernet ports, 2 x USB, Refurbished
35,999.00 د.إ
Ethernet WAN | Yes |
Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, IEEE 802.3af, IEEE 802.3u |
Ethernet LAN | Yes |
Full duplex | Yes |
Supports ISDN connection | Yes |
Dual-band | No |
Web-based management | Yes |
Quality of Service (QoS) support | Yes |
Ethernet LAN (RJ-45) ports | 2 |
USB ports quantity | 2 |
Switching protocols | ISDN |
Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
Management protocols | HTTP, SNMP 3 |
Supported network protocols | IPSec |
Security algorithms | 128-bit AES, 192-bit AES, 256-bit AES, 3DES, DES |
Firewall security | Cisco IOS |
VPN support | DES, 3DES |
Flash memory | 64 MB |
Internal memory | 256 MB |
Safety | UL 60950, CAN/CSA C22.2 No. 6095, EN 60950, AS/NZS 60950 |
Product colour | Blue, Stainless steel |
Rack mounting | Yes |
Rack capacity | 3U |
LED indicators | Yes |
Power over Ethernet (PoE) | Yes |
Operating temperature (T-T) | 0 – 40 °C |
Storage temperature (T-T) | -40 – 70 °C |
Operating relative humidity (H-H) | 5 – 85% |
Width | 438.1 mm |
Depth | 406.4 mm |
Height | 133.3 mm |
Weight | 15.9 kg |
Filtering | Yes |
Expansion slots | 1 x SFP, 1 x console |
Technical features | 4 x PVDM, 4 x HWIC, 2 x AIM |
There are no reviews yet.
