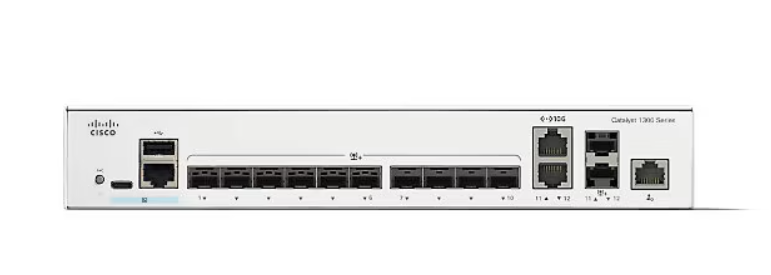

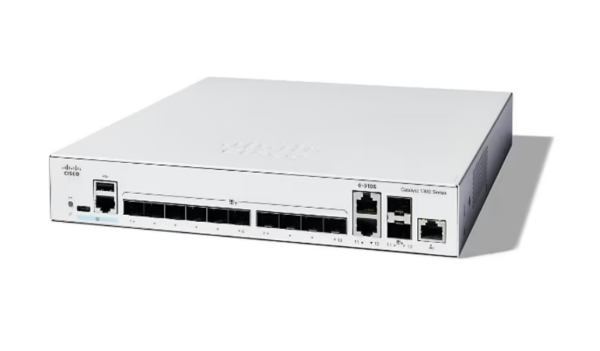

Cisco Catalyst 1300-12XS – switch – 12 ports – smart – rack-mountable

Add to Wishlist

Quick tech specs

  • 12XS
  • L3
  • 12 x 10GBase-X + 2 x combo 10 Gigabit SFP+/RJ-45
  • Switch
  • smart
  • rack-mountable

8,499.00 د.إ

Add to Wishlist

Know your gear

The Cisco Catalyst 1300-12XS switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features, and PoE+ support.
Category: Tag:
Category Details
Overview
Brand Cisco
Product Line Cisco Catalyst
Model 1300-12XS
Manufacturer Cisco Systems
Processor
Clock Speed 1.4 GHz
Processor Brand ARM
Memory
Flash Memory Installed 512 MB
Memory Technology DDR4 SDRAM
RAM Installed 1 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features ACL support, ARP inspection, Auto Surveillance VLAN, BPDU Guard, Broadcast Storm Control, Cisco NG PnP, DHCP client/server/snooping, DHCPv6 guard, DiffServ, DoS attack prevention, EEE, IGMP snooping, Layer 3 routing, Multicast Storm Control, QoS, VLAN management, Web authentication, Zero-Touch Deployment
Form Factor (Hubs & Switches) Rack-mountable
Jumbo Frame Support 9000 bytes
MAC Address Table Size 16,000 entries
Manageable Yes
Ports 12
Product Type Switch
Remote Management CLI, DHCP, HTTP, HTTPS, ICMP, RADIUS, RMON, SCP, SNMP, SNMP 2c/3, SSH, Telnet, Syslog, TFTP
Routing Protocol Bonjour, CIDR, IGMP, MLD, MSTP, Policy-based routing (PBR), RIP-2, Static IP routing, STP
Smart Yes
Status Indicators Link/activity/speed, PoE, System
Subcategory Network hubs and switches
Switching Type 10 Gigabit Ethernet
Connectivity
Interface Provided 1 x console RJ-45, 1 x RJ-45, 1 x USB, 1 x USB-C console, 12 x 10GBase-X SFP+, 2 x 10GBase-T/10GBase-X RJ-45/SFP+
Port Quantity 12
Port Type 10GBase-X
Ports Type (2nd) Combo 10 Gigabit SFP+/RJ-45
Power
Frequency 50/60 hertz
Required Voltage AC 100-240 volt
Technical Information
Encryption MD5, SSL
Humidity Range Storage 10 – 90% RH (non-condensing)
Max Operating Temperature 122 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 23 degree Fahrenheit
Min Storage Temperature -13 degree Fahrenheit
MTBF 2,165,105 Hours
Operating Humidity 10 – 90% RH (non-condensing)
Product Information
Authentication Method RADIUS, TACACS+
Capacity ACL rules: 1024, IGMP multicast groups: 2000, IPv4 interfaces: 128, IPv4 routes (static): up to 990, Link aggregation groups: 8, VLAN IDs: 4093
Device Type Internal power supply
Packaged Quantity 1
Performance Forwarding rate (64-byte packets): 178.57 Mpps, Switching capacity: 240 Gbps
Ports (2nd) Quantity 2
Included Items Pointer card
Dimensions & Weight
Height 1.7 inch
Weight 5.49 lbs
Width 10.6 inch
Depth 10.7 inch
Physical Characteristics
Color Category White
Certifications & Listings CSA 22.2, FCC CFR47 Part 15, Plug and Play, RFC1042, RFC768, RFC791, UL 62368, WEEE
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
