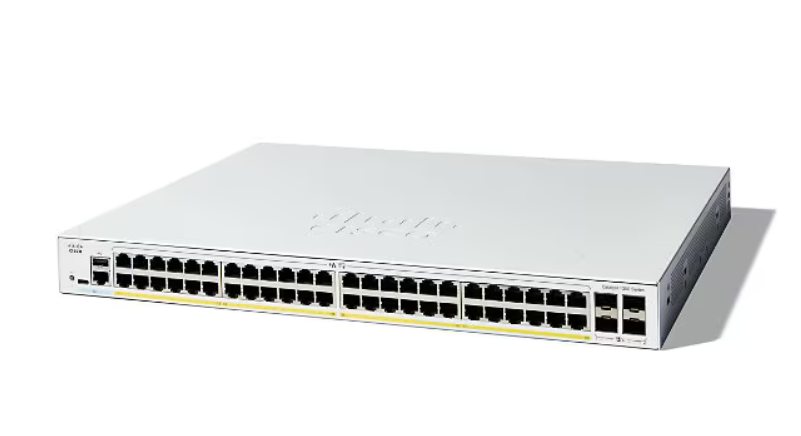

Cisco Catalyst 1300-48FP-4X – switch – 48 ports – managed – rack-mountable

Add to Wishlist

Quick tech specs

  • 48FP-4X
  • L3
  • 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
  • PoE+ (740 W)
  • Switch
  • managed
  • rack-mountable

13,099.00 د.إ

Add to Wishlist

Know your gear

The Cisco Catalyst 1300-48FP-4X switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features, and PoE+ support.
SKU: C1300-48FP-4X Category: Tag:
Category Details
Overview
Brand Cisco
Product Line Cisco Catalyst
Model 1300-48FP-4X
Manufacturer Cisco Systems
Processor
Clock Speed 1.4 GHZ
Processor Brand ARM
Memory
Flash Memory Installed 512 megabyte
Memory Technology DDR4 SDRAM
RAM Installed 1 GB
Network & Communication
Advanced Switching Layer 3
Compliant Standards IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features 1 fan, ACL support, Address Resolution Protocol, ARP inspection, ATP, Auto Surveillance VLAN, Boot integrity, BOOTP support, BPDU Guard, Broadcast Storm Control, Cable length detection, Chip guard, Cisco NG PnP Protocol, CLI management, CPE VLAN, DAD, DAI, DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 guard, DiffServ support, DNS client, DoS attack prevention, DoS protection, DSCP based CoS, Dynamic routing, Eco-friendly button, Energy-Efficient Ethernet (EEE), FHS, GARP, Guest VLAN, GVRP, High Availability, HoL Blocking Prevention, IGMP proxy, IGMP querier, IGMP snooping, IP source guard, IPMB, IPv4 and IPv6 dual stack, iSCSI traffic optimization, LACP, LAG, Layer 3 routing, LLDP, LLDP-MED, Loopback detection, MAC address authentication, MAC based VLAN, MLD proxy, MLD snooping, MSTP support, Multicast Storm Control, MVR, NDP, Path MTU discovery, Persistent PoE, PoE scheduling, Port mirroring, Port Security, Private VLAN, Protocol-based VLANs support, PVE, PVST+, Q-in-Q tunneling, QoS, RA guard, Reset button, Router advertisement guard, RPVST+, RSPAN, RSTP, SCP, SCT, sFlow, SSD, Storm Control, STP loop guard, STP Root Guard, STP support, TCP congestion, Telnet client, Telnet server, Time-based port operation, ToS, TPID, Trustworthy systems, UDLD, UDP, Unicast Storm Control, Unknown Storm Control, VLAN management, VLAN mirroring, VLAN support, Web authentication, WRR, Zero-Touch Deployment
Form Factor Rack-mountable
Jumbo Frame Support 9000 bytes
MAC Address Table Size 16000 entries
Manageable Yes
Max Units In A Stack 8
PoE Budget 740 watt
Ports 48
Power Over Ethernet (PoE) PoE+
Product Type Switch
Remote Management CLI, DHCP, HTTP, HTTPS, ICMP, RADIUS, RMON, SCP, SNMP, SNMP 2c, SNMP 3, SSH, SSH-2, Syslog, Telnet, TFTP
Routing Protocol Bonjour, CIDR, IGMP, IGMPv2, IGMPv3, MLD, MLDv2, MSTP, Policy-based routing (PBR), RIP-2, RSTP, Static IP routing, STP
Stackable Stackable
Status Indicators Link/activity/speed, PoE, System
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Connectivity
Interface Provided 1 x console RJ-45, 1 x USB-C console, 4 x 10GBase-X SFP+, 48 x 1000Base-T RJ-45 PoE+
Port Quantity 48
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) 10 Gigabit SFP+
Power
Frequency 50 – 60 hertz
Required Voltage AC 100-240 volt
Technical Information
Encryption MD5, SSL
Humidity Range Storage 5 – 90% RH (non-condensing)
Max Operating Temperature 122 degree Fahrenheit
Max Storage Temperature 158 degree Fahrenheit
Min Operating Temperature 23 degree Fahrenheit
Min Storage Temperature -13 degree Fahrenheit
MTBF 856,301 Hours
Operating Humidity 5 – 90% RH (non-condensing)
Product Information
Authentication Method RADIUS, TACACS+
Capacity ACL rules: 1024, IGMP multicast groups: 2000, IPv4 interfaces: 128, IPv4 routes (static): up to 990, Link aggregation groups: 8, Link aggregation ports: 8, MSTP instances: 8, Packet buffer size: 3 MB, Priority queues: 8, RPVST+ instances: 126, VLAN IDs: 4093
Device Type Internal power supply
Packaged Quantity 1
Performance Forwarding rate (64-byte packets): 77.38 Mpps, Switching capacity: 104 Gbps
Ports (2nd) Quantity 4
Included Items
Included Accessories Mounting kit, Pointer card
Dimensions & Weight
Height 1.7 inch
Weight 12.83 lbs
Width 17.5 inch
Depth 13.8 inch
Physical Characteristics
Color Category White
Certifications & Listings
Compliant Standards CSA 22.2, FCC CFR47 Part 15, Plug and Play, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1157, RFC1213, RFC1215, RFC1286, RFC1350, RFC1442, RFC1451, RFC1493, RFC1533, RFC1541, RFC1542, RFC1573, RFC1624, RFC1643, RFC1700, RFC1757, RFC1867, RFC1907, RFC1981, RFC2011, RFC2012, RFC2013, RFC2030, RFC2131, RFC2132, RFC2233, RFC2460, RFC2576, RFC2616, RFC2618, RFC2665, RFC2666, RFC2674, RFC2737, RFC2819, RFC2863, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC3484, RFC3595, RFC4007, RFC4291, RFC4293, RFC4330, RFC4443, RFC4861, RFC4862, RFC5214, RFC768, RFC783, RFC791, RFC792, RFC793, RFC813, RFC826, RFC854, RFC855, RFC856, RFC858, RFC879, RFC894, RFC896, RFC919, RFC920, RFC922, RFC950, RFC951, UL 62368, WEEE
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
