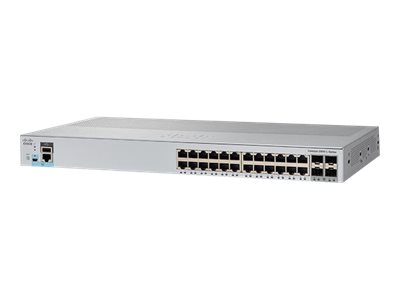

Cisco Catalyst 2960L-24TS-LL – switch – 24 ports – managed – rack-mountable WS-C2960L-24TS-LL

Add to Wishlist

3,799.00 د.إ

Add to Wishlist

Overview

The Cisco Catalyst 2960-L fixed managed switch is an Gigabit Ethernet switch that provides enterprise-class access switching for branch offices, out-of-the-wiring-closet applications, and critical Internet of Things (IoT) deployments, as well as small and medium-sized businesses. Simplify operations, get the reliability you need, and deliver better mobile experiences to your employees and customers. The WS-C2960L-24TS-LL model is a 24 port GE, data switch with 4x 1G SFP uplinks, and supports an enhanced version of Cisco IOS LAN Lite software image.

Network security

The Cisco Catalyst 2960-L Series Switches provide a range of security features to limit access to the network and mitigate threats.

Enhanced quality of service

The Cisco Catalyst 2960-L Series Switches offers intelligent traffic management that keeps everything flowing smoothly. Flexible mechanisms for marking, classification, and scheduling deliver superior performance for data, voice, and video traffic, all at wire speed.

Intelligent power over Ethernet Plus

Cisco Catalyst 2960-L Series Switches support both IEEE 802.3af Power over Ethernet (PoE) and IEEE 802.3at PoE+ to deliver lower total cost of ownership for deployments. PoE removes the need to supply wall power to PoE-enabled devices and eliminates the cost of adding electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments.

SKU: WS-C2960L-24TS-LL Category: Tags: , ,

Specifications

General
Device Type Switch – 24 ports – managed
Enclosure Type Desktop, rack-mountable
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 + 4 x Gigabit SFP (uplink)
Performance Switching bandwidth: 56 Gbps Forwarding bandwidth: 28 Gbps
Capacity MAC addresses: 8000 VLANs supported: 4094 Active VLANs: 64 SPAN bidirectional sessions: 1
Jumbo Frame Support 10240 bytes
Routing Protocol IGMP
Remote Management Protocol SNMP 3, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features Layer 2 switching, ARP support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Uni-Directional Link Detection (UDLD), fanless, Link Aggregation Control Protocol (LACP), MAC Address Notification, Per-VLAN Rapid Spanning Tree (PVRST), per-port broadcast throttling, Dynamic VLAN Support (GVRP), SNMP support, IGMP filtering, VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Spanning-tree Root Guard (STRG), Network Timing Protocol (NTP)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3ah, IEEE 802.3az
Processor ARM7: 800 MHz
RAM 512 MB
Flash Memory 256 MB
Status Indicators System, status, PoE, link/speed
Expansion / Connectivity
Interfaces 24 x 1000Base-T RJ-45 1 x console RJ-45 1 x console (mini-USB) Type B 1 x USB Type A 4 x 1000Base-X SFP uplink
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50 – 60 Hz)
Miscellaneous
MTBF 2,412,947 hours
Compliant Standards CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, RoHS 2011/65/EU, AS/NZS CISPR22:2004 Class A, FCC CFR47 Part 15 B Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300386
Software / System Requirements
Software Included Cisco IOS LAN Lite
Dimensions & Weight
Width 17.5 in
Depth 9.4 in
Height 1.7 in
Weight 6.61 lbs
Environmental Parameters
Min Operating Temperature 23 °F
Max Operating Temperature 131 °F
Humidity Range Operating 5 – 90%
Min Storage Temperature -13 °F
Max Storage Temperature 158 °F
Humidity Range Storage 5 – 95%
General
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Capacity MAC addresses: 8000 ¦ VLANs supported: 4094 ¦ Active VLANs: 64 ¦ SPAN bidirectional sessions: 1
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3ah, IEEE 802.3az
Device Type Switch – 24 ports – managed
Enclosure Type Desktop, rack-mountable
Features Layer 2 switching, ARP support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, RADIUS support, Dynamic ARP Inspection (DAI), Cisco EnergyWise technology, Uni-Directional Link Detection (UDLD), fanless, Link Aggregation Control Protocol (LACP), MAC Address Notification, Per-VLAN Rapid Spanning Tree (PVRST), per-port broadcast throttling, Dynamic VLAN Support (GVRP), SNMP support, IGMP filtering, VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Spanning-tree Root Guard (STRG), Network Timing Protocol (NTP)
Flash Memory 256 MB
Jumbo Frame Support 10240 bytes
Performance Switching bandwidth: 56 Gbps ¦ Forwarding bandwidth: 28 Gbps
Ports 24 x 10/100/1000 + 4 x Gigabit SFP (uplink)
Processor ARM7: 800 MHz
RAM 512 MB
Remote Management Protocol SNMP 3, CLI
Routing Protocol IGMP
Status Indicators System, status, PoE, link/speed
Subtype Gigabit Ethernet
Dimensions & Weight
Depth 9.4 in
Height 1.7 in
Weight 6.61 lbs
Width 17.5 in
Environmental Parameters
Humidity Range Operating 5 – 90%
Humidity Range Storage 5 – 95%
Max Operating Temperature 131 °F
Max Storage Temperature 158 °F
Min Operating Temperature 23 °F
Min Storage Temperature -13 °F
Expansion / Connectivity
Interfaces 24 x 1000Base-T RJ-45 ¦ 1 x console RJ-45 ¦ 1 x console (mini-USB) Type B ¦ 1 x USB Type A ¦ 4 x 1000Base-X SFP uplink
Miscellaneous
Compliant Standards CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, EN 300386, RoHS 2011/65/EU, AS/NZS CISPR22:2004 Class A, FCC CFR47 Part 15 B Class A, CAN/CSA C22.2 No. 60950-1 Second Edition
MTBF 2,412,947 hours
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50 – 60 Hz)
Software / System Requirements
Software Included Cisco IOS LAN Lite
