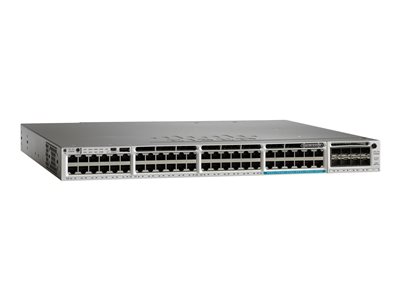

Cisco Catalyst 3850-12X48U-S – switch – 48 ports – managed – rack-mountable WS-C3850-12X48U-S

Availability:

10 in stock
Add to Wishlist

75,799.00 د.إ

10 in stock

Add to Wishlist

Cisco Systems Catalyst 3850 48 Port IP Base

The Cisco® Catalyst® 3850 Series is the next generation of enterprise-class stackable Ethernet and Multigigabit Ethernet access and aggregation layer switches that provide full convergence between wired and wireless on a single platform. Cisco’s new Unified Access Data Plane (UADP) application- specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise-480 technology. The Cisco Catalyst 3850 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE), modular and field-replaceable network modules, RJ45 and fiber-based downlink interfaces, and redundant fans and power supplies. With speeds that reach 10Gbps, the Cisco Catalyst 3850 Multigigabit Ethernet Switches support current and next-generation wireless speeds and standards (including 802.11ac Wave 2) on existing cabling infrastructure.

SKU: WS-C3850-12X48U-Sv Category: Tags: , ,

Specifications

General
Device Type Switch – 48 ports – L3 – managed – stackable
Enclosure Type Desktop, rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE) UPOE
PoE Budget 630 W
Performance Switching capacity: 176 Gbps Stacking bandwidth: 480 Gbps Forwarding performance (64-byte packet size): 460 Mpps
Capacity IPv4 routes: 24000 NetFlow entries: 48000 Switched virtual interfaces (SVIs): 1000
MAC Address Table Size 32000 entries
Jumbo Frame Support 9198 bytes
Routing Protocol RIP-1, RIP-2, EIGRP, RIPng
Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Features Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy Efficient Ethernet, Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
RAM 4 GB
Flash Memory 2 GB
Status Indicators Port transmission speed, port duplex mode, system, status, PoE
Expansion / Connectivity
Interfaces 36 x 1000Base-T RJ-45 UPOE – 60 W 1 x USB Type A 1 x management (mini-USB) Type B 1 x serial (RS-232) RJ-45 management 1 x management (Gigabit LAN) RJ-45 2 x network stack device 12 x 1/2.5/5/10GBase-T RJ-45 UPOE – 60 W
Expansion Slots 1 (total) / 1 (free) x expansion slot
Power
Power Device Internal power supply
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Power Provided 1100 Watt
Voltage Required AC 120/230 V (50/60 Hz)
Miscellaneous
MTBF 202,030 hours
Compliant Standards CISPR 22 Class A, GOST, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A
Software / System Requirements
Software Included Cisco IOS IP Base
Dimensions & Weight
Width 17.5 in
Depth 19.2 in
Height 1.8 in
Weight 17.64 lbs
Manufacturer Warranty
Service & Support Limited warranty – advance parts replacement – lifetime – response time: next business day Technical support – consulting – 90 days
Environmental Parameters
Min Operating Temperature 23 °F
Max Operating Temperature 113 °F
Humidity Range Operating 10 – 95% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
General
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+
Capacity IPv4 routes: 24000 ¦ NetFlow entries: 48000 ¦ Switched virtual interfaces (SVIs): 1000
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
Device Type Switch – 48 ports – L3 – managed – stackable
Enclosure Type Desktop, rack-mountable 1U
Features Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy Efficient Ethernet, Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF)
Flash Memory 2 GB
Jumbo Frame Support 9198 bytes
MAC Address Table Size 32000 entries
Performance Switching capacity: 176 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding performance (64-byte packet size): 460 Mpps
PoE Budget 630 W
Ports 48 x 10/100/1000 (UPOE)
Power Over Ethernet (PoE) UPOE
RAM 4 GB
Remote Management Protocol SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Routing Protocol RIP-1, RIP-2, EIGRP, RIPng
Status Indicators Port transmission speed, port duplex mode, system, status, PoE
Subtype Gigabit Ethernet
Dimensions & Weight
Depth 19.2 in
Height 1.8 in
Weight 17.64 lbs
Width 17.5 in
Environmental Parameters
Humidity Range Operating 10 – 95% (non-condensing)
Max Operating Temperature 113 °F
Max Storage Temperature 158 °F
Min Operating Temperature 23 °F
Min Storage Temperature -40 °F
Expansion / Connectivity
Expansion Slots 1 (total) / 1 (free) x expansion slot
Interfaces 36 x 1000Base-T RJ-45 UPOE – 60 W ¦ 1 x USB Type A ¦ 1 x management (mini-USB) Type B ¦ 1 x serial (RS-232) RJ-45 management ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 2 x network stack device ¦ 12 x 1/2.5/5/10GBase-T RJ-45 UPOE – 60 W
Manufacturer Warranty
Service & Support Limited warranty – advance parts replacement – lifetime – response time: next business day ¦ Technical support – consulting – 90 days
Miscellaneous
Compliant Standards CISPR 22 Class A, GOST, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN55022 Class A, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A
MTBF 202,030 hours
Power
Installed Qty 1 (installed) / 2 (max)
Power Device Internal power supply
Power Provided 1100 Watt
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Voltage Required AC 120/230 V (50/60 Hz)
Software / System Requirements
Software Included Cisco IOS IP Base
