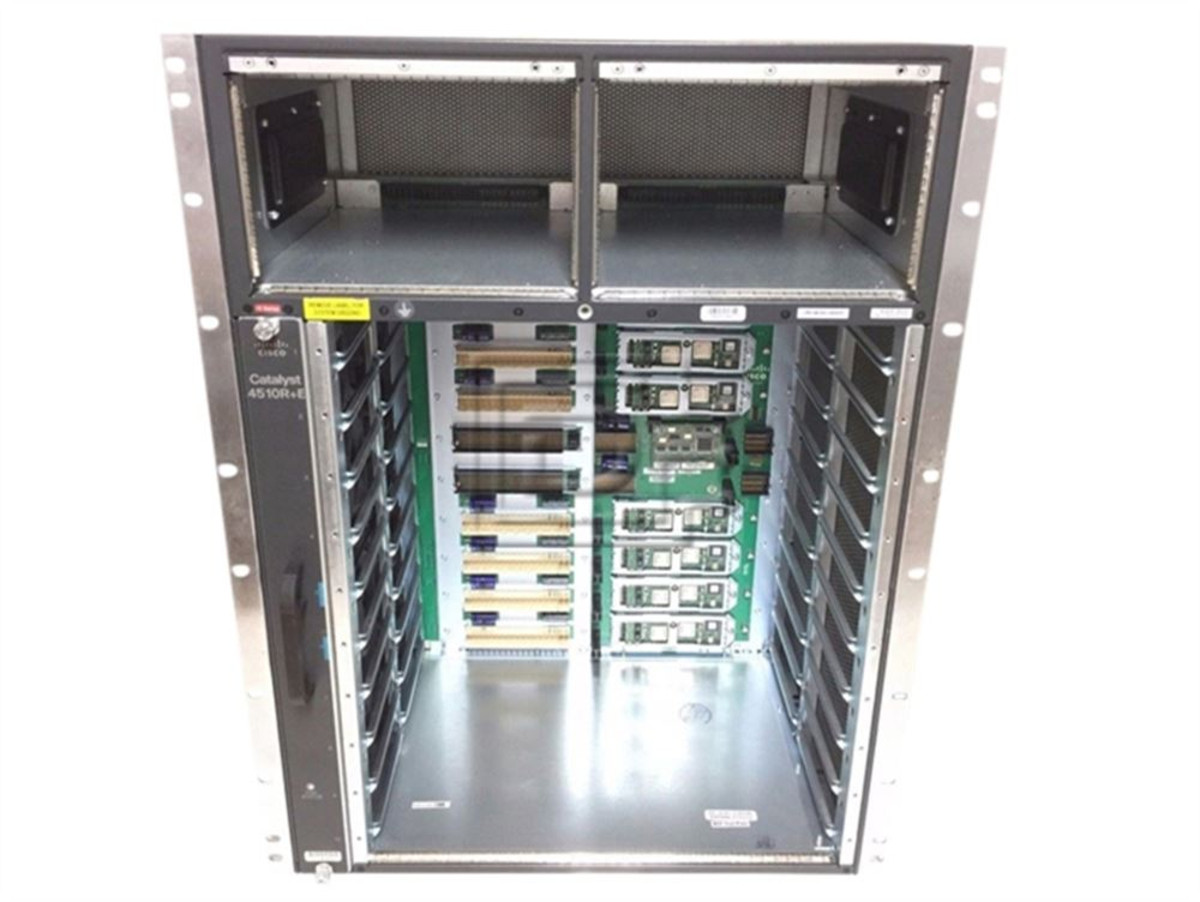

Cisco Catalyst 4510R Enterprise LAN Access Ethernet Switch Chassis


Interface Types:Ā Ethernet RJ45, SFP

Electrical Interface:Ā Ethernet Gigabit – 1Gbps

Bays/Ports/Slots:Ā 4

Voltage:Ā 12V

1,099.00 د.إ

Cisco Catalyst 4510R Enterprise LAN Access Ethernet Switch Chassis only no PSU – Refurbished

Cisco Catalyst 4510R Enterprise LAN Access Ethernet Switch Chassis only no PSU

Overview

The Cisco Catalyst 4500 Series Supervisor Engine V-10GE continues the nonblocking, robust Layer 2-4 switching found in previous Cisco Catalyst 4500 Series supervisor engines with the addition of wire-speed 10 Gigabit Ethernet uplinks, 136-Gbps capacity, and 102-mbps throughput, and additional features to further enhance resilient control of converged data, voice, and video networks with high availability to help enable business resiliency for enterprise and metropolitan (metro) Ethernet customers. Network control extends from the backbone to the edge with intelligent services such as granular quality of service (QoS), Internet security, and network management. Scalability of these intelligent network services is made possible with dedicated specialized resources known as ternary content addressable memory (TCAM). Ample TCAM resources (192,000 entries) enable “high feature capacity,” which provides wire-speed routing/switching performance with concurrent provisioning of services such as QoS and security. This helps ensure scalability for today’s network requirements with ample room for future growth.

The Cisco Catalyst 4500 Series Supervisor Engine V-10GE includes dual wire-speed 10 Gigabit Ethernet ports (X2 optics) as well as 4 Gigabit Ethernet ports (Small Form-Factor Pluggable [SFP] optics) on the faceplate to maximize the flexibility of deployment options. The combination of Gigabit Ethernet and 10 Gigabit Ethernet ports on the same supervisor engine allows for network future-proofing with an easy migration path from Gigabit Ethernet to 10 Gigabit Ethernet by simply adding 10 Gigabit Ethernet optical interfaces. The ability to support both Gigabit Ethernet uplinks and 10 Gigabit Ethernet uplinks on a single supervisor engine further enhances the investment protection of the Cisco Catalyst 4500 Series architecture.

The Cisco Catalyst 4500 Series Supervisor Engine V-10GE offers port scalability for resilient Layer 2-4 and routing for both enterprise and service provider market segments. Optimized for the enterprise LAN, branch-office backbones, or Layer 3 distribution points, this supervisor engine provides the performance and scalability to handle the network applications of today and the future.

The Cisco Catalyst 4500 Series modular architecture provides a “pay-as-you-grow” model, reducing operational expenses and capital expenditures. The Supervisor Engine V-10GE is backward-compatible with all classic Cisco Catalyst 4500 Series line cards and can be used in both the classic Cisco Catalyst 4500 chassis with the Cisco Catalyst 4503, 4506, 4507R, and 4510R Switch chassis as well as the Cisco Catalyst 4500 E-Series Chassis: Cisco Catalyst 4503-E, 4506-E, 4507R-E, 4507R+E, 4510R-E, and 4510R+E Switches.

Predictable Performance and Scalability
The Cisco Catalyst 4500 Series Supervisor Engine V-10GE delivers a 136-Gbps switching fabric with a 102-mpps forwarding rate in hardware for Layer 2-4 traffic. Switching performance is independent of the number of route entries or Layer 3 and 4 services enabled. The hardware-based Cisco Express Forwarding routing architecture allows for increased scalability and performance. Two 10 Gigabit Ethernet ports are provided for high-speed uplinks and switch-to-switch communication. Table 1 provides a comparison of the performance and scalability features of all of the Cisco Catalyst 4500 enhanced Layer 3 supervisor engines.

Compatibility: Cisco 4510R Chassis only.Ā  Does not include any modules or power supplies.

SKU: 4510R Category:
SPECIFICATIONS
Model Number 4510R
Redundant Capable Yes
Cisco Catalyst 4507R or 4507R-E or 4507R+E
Cisco Catalyst 4510R or 4510R-E or 4510R+E
Active Supervisor Uplinks in Redundant Mode Up to 4 Gigabit Ethernet
(2) 10 Gigabit Ethernet
Active Supervisor Engine Uplink (Nonredundant Mode) 4 Gigabit Ethernet
(2) 10 Gigabit Ethernet
Twin Gig Converter Support No
Uplink Optic Types SFP (Gigabit Ethernet) or
X2 optics (10 Gigabit Ethernet ports
SSO/NSF/ISSU Yes
Qos Hardware Entries 32,000
Policers 8,000 input
8,000 output
Hierarchical Policers Yes microflow policing with onboard NetFlow
Number of Tx Queues 4
Max Tx Queue Size 2336 packets per tx queue
Dynamic Queue Sizes No
Configurable Classification No
Match IP on MAC Header No
Modular Qos Compliant No
DBL: Congestion Avoidance Feature Yes
QoS Sharing Supported on all ports
Shaping Yes per tx queue
Broadcast Suppression Hardware for all ports
Multicast Suppression Hardware for all ports
USB Drive Support No
Compact Flash Support Yes
64MB or
128 MP options
FAT File System Support No
SPAN 2 ingress and 4 egress
Security Entries 32,000
NAC/DHCP Snooping Entries 6000/6000
uRPF No
Control Plane Policing Yes in hardware
802.1X Yes
802.1X Extensions Yes
IP Source Guard,
Dynamic ARP Inspection,
DHCP Snooping
Yes
Network Admission Control Yes
Daughter Card Not required (integrated into supervisor)
Flow-Table Size 85,000
Aggregate Policers 8000 ingress;
8000 egress
User-Based Rate-Limiting Profiles 512
User-Based Rage-Limiting Flows 85,000
Regulatory Compliance CE marking
Safety
  • UL 60950CAN/CSA-C22.2 No. 60950
  • EN 60950
  • IEC 60950
  • TS 001
  • AS/NZS 3260
EMC
  • FCC Part 15 (CFR 47) Class A
  • ICES-003 Class A
  • EN55022 Class A
  • CISPR22 Class A
  • AS/NZS 3548 Class A
  • VCCI Class A
  • ETS 300 386
  • EN 55022
  • EN 55024
  • EN 61000-6-1
  • EN 50082-1
  • EN 61000-3-2
  • EN 61000-3-3
Industry EMC, Safety, and Environmental Standards
  • GR-63-Core Network Equipment Building Systems (NEBS) Level 3
  • GR-1089-Core Level 3
  • ETS 300 019 Storage Class 1.1
  • ETS 300 019 Transportation Class 2.3 (pending)
  • ETS 300 019 Stationary Use Class 3.1
  • ETS 300 386
  • 24.35 x 17.31 x 12.50 in. (61.84 x 43.97 x 31.70 cm) 55 Lbs.




ROHS Compliant

Alternate MPNs:Ā 4510R-E

Weight:Ā 55Ā lb
