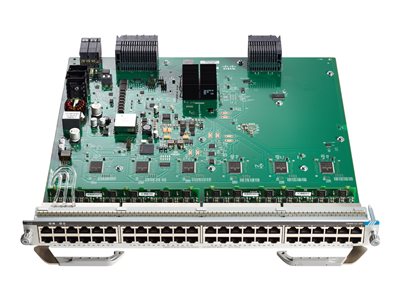

Cisco Catalyst 9400 Series Line Card – switch – 48 ports – plug-in module (pack of 2 ) C9407R-96U-BNDL-E

Add to Wishlist

51,599.00 د.إ

Add to Wishlist

Cisco Systems Catalyst 9400 Series 7 Slot Support

Overview

The Cisco Catalyst 9400 is Cisco’s lead modular enterprise switching access platform built for security, IoT and cloud. This switch series forms the foundational building blocks for SD-Access – Cisco’s leading enterprise architecture. The platform provides unparalleled investment protection with a chassis architecture that is capable of supporting up to 9Tbps of system bandwidth and unmatched power delivery for high density IEEE 802.3BT (60W PoE). Redundancy is now table stakes across the portfolio.

  • UPoE is enabled, capable of up to 60W on all the ports in the line card
  • Energy Efficient Ethernet 802.3az
  • IEEE 802.3af/at and Cisco pre-standard PoE
  • IEEE 802.1AE and Cisco TrustSec capability in hardware
Category: Tags: , ,

Specifications

General
Packaged Quantity 2 (specifications are for single item)
Device Type Switch – 48 ports
Enclosure Type Plug-in module
Ports 48 x 10/100/1000
Power Over Ethernet (PoE) UPOE
PoE Budget 60 W
Jumbo Frame Support 9216 bytes
Features Port Aggregation Protocol (PAgP) support, Energy Efficient Ethernet, Precision Time Protocol (PTP), TrustSec support
Compliant Standards IEEE 802.3, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1ae, IEEE 802.1as, IEEE 802.3at, IEEE 802.3az
Expansion / Connectivity
Interfaces 48 x 1000Base-T RJ-45
Miscellaneous
Compliant Standards CISPR 22 Class A, AS/NZS 60950-1, ICES-003 Class A, Laser Class 1, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, EN 300 386 V1.6.1, EN61000-3-2, EN61000-3-3, EN 55022 Class A, IEEE 1588, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1
Software / System Requirements
Software Included 5 years Cisco ONE Subscription ISE BASE license, 100 x Cisco ONE ISE BASE Term License, Cisco ONE C9400 DNA Essential Term licenses, 5 years C1 Essentials Term C9500 – DNA, 100 ISE Base, Cisco ONE Essentials Term, C9400 (Includes Term Licenses for DNA Essentials, 100 ISE Base Endpoints. Requires separate purchase of ISE Appliance or ISE VM)
OS Required Cisco IOS XE 16.6 or later
Dimensions & Weight
Width 1.6 in
Depth 14.9 in
Height 14.6 in
Manufacturer Warranty
Service & Support Limited warranty – replacement – lifetime – response time: next business day
Environmental Parameters
Min Operating Temperature 23 °F
Max Operating Temperature 113 °F
Humidity Range Operating 10 – 95% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 10 – 95% (non-condensing)
General
Compliant Standards IEEE 802.3, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1ae, IEEE 802.1as, IEEE 802.3at, IEEE 802.3az
Device Type Switch – 48 ports
Enclosure Type Plug-in module
Features Port Aggregation Protocol (PAgP) support, Energy Efficient Ethernet, Precision Time Protocol (PTP), TrustSec support
Jumbo Frame Support 9216 bytes
Packaged Quantity 2 (specifications are for single item)
PoE Budget 60 W
Ports 48 x 10/100/1000
Power Over Ethernet (PoE) UPOE
Dimensions & Weight
Depth 14.9 in
Height 14.6 in
Width 1.6 in
Environmental Parameters
Humidity Range Operating 10 – 95% (non-condensing)
Humidity Range Storage 10 – 95% (non-condensing)
Max Operating Temperature 113 °F
Max Storage Temperature 158 °F
Min Operating Temperature 23 °F
Min Storage Temperature -40 °F
Expansion / Connectivity
Interfaces 48 x 1000Base-T RJ-45
Manufacturer Warranty
Service & Support Limited warranty – replacement – lifetime – response time: next business day
Miscellaneous
Compliant Standards CISPR 22 Class A, AS/NZS 60950-1, ICES-003 Class A, Laser Class 1, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, CAN/CSA C22.2 No. 60950-1, EN 300 386 V1.6.1, EN61000-3-2, EN61000-3-3, EN 55022 Class A, IEEE 1588, EN 55032 Class A, CISPR 32 Class A
Software / System Requirements
OS Required Cisco IOS XE 16.6 or later
Software Included 5 years Cisco ONE Subscription ISE BASE license, 100 x Cisco ONE ISE BASE Term License, Cisco ONE C9400 DNA Essential Term licenses, 5 years C1 Essentials Term C9500 – DNA, 100 ISE Base, Cisco ONE Essentials Term, C9400 (Includes Term Licenses for DNA Essentials, 100 ISE Base Endpoints. Requires separate purchase of ISE Appliance or ISE VM)
