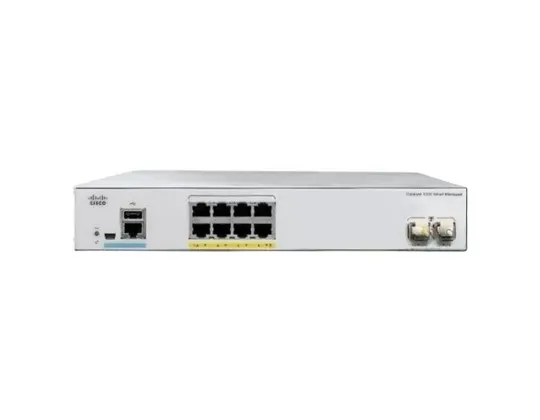

Cisco Catalyst C1000-8T-E-2G-L network switch Managed L2 Gigabit Ethernet (10/100/1000) Grey
8x 10/100/1000 Ethernet ports, 2x 1G SFP and RJ-45 combo uplinks, w/ external PS
د.إ1,899.00
Highlights
Cisco Catalyst 1000 Series Switches are fixed managed Gigabit Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco Catalyst 1000 operate on Cisco IOS Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for Small and Medium Sized (SMB) organizations.
| Feature | Specification |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Traffic classification | Y |
| ARP inspection | Y |
| Configuring Location Settings (CLI) | Y |
| MIB support | Y |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Networking standards | IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
| Full duplex | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Auto MDI/MDI-X | Y |
| Spanning tree protocol | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto-negotiation | Y |
| VLAN support | Y |
| MAC address table | 15360 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 10000 Mpps |
| Static route | Y |
| Jumbo frames support | Y |
| Jumbo frames | 10240 |
| DHCP features | DHCP snooping |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| IGMP entries | 1024 |
| SSH/SSL support | Y |
| Loop protection | Y |
| BPDU filtering/protection | Y |
| Authentication | Web-based authentication |
| Authentication type | RADIUS |
| Multicast support | Y |
| IPv4 multicast entries | 1024 |
| Management protocols | SNMP |
| Product colour | Grey |
| Built-in processor | Y |
| Processor model | ARM7 |
| Processor frequency | 800 MHz |
| Memory type | DRAM |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Mean time between failures (MTBF) | 2171669 h |
| Harmonized System (HS) code | 85176990 |
| Power supply included | Y |
| AC input voltage | 110 – 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 0.22 A |
| Power consumption (typical) | 14.2 W |
| Power consumption (max) | 14.9 W |
| Operating temperature (T-T) | -5 – 50 °C |
| Storage temperature (T-T) | -25 – 70 °C |
| Operating relative humidity (H-H) | 5 – 90% |
| Storage relative humidity (H-H) | 5 – 95% |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 4500 m |
| Dimensions (W x D x H) (imperial) | 268.2 x 184.9 x 43.9 mm (10.6 x 7.28 x 1.73″) |
| Product family | Catalyst |
