Cisco Catalyst IE3400 Rugged Series – Network Advantage – switch – 10 ports – managed

Add to Wishlist

Quick tech specs

  • Network Advantage
  • managed
  • DIN rail mountable
  • switch
  • 8 x 10/100/1000 + 2 x Gigabit SFP
  • DC power

AED53,299.00

Add to Wishlist

Know your gear

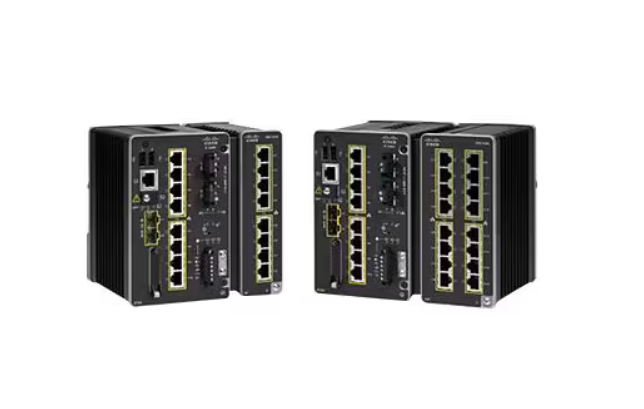

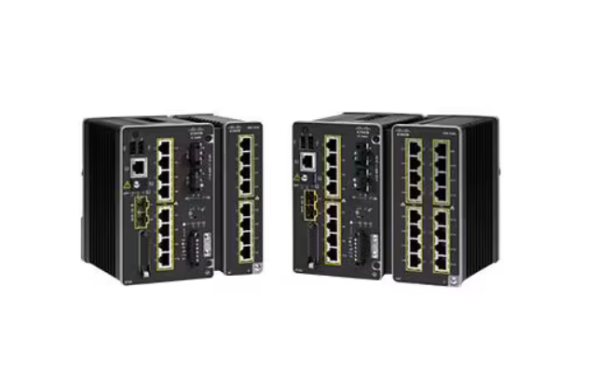

The Cisco Catalyst IE3400 Rugged Series ushers in mainstream adoption of advanced Gigabit Ethernet connectivity in a compact form factor, modular switch purpose-built for a wide variety of extended enterprise and industrial applications.
SKU: IE-3400-8T2S-A Category: Tag:
Category Specification
Overview
Brand Cisco
Product Line Cisco Catalyst
Model IE3400 Rugged Series
Edition Network Advantage
Manufacturer Cisco Systems
Memory
Flash Memory Installed 1.5 GB
RAM Installed 4 GB
Network & Communication
Compliant Standards IEEE 1588v2, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features 802.1x authentication, ACL support, ARP support, BOOTP, BPDU Guard, Broadcast Storm Control, CIP Sync (IEEE 1588), DHCP relay/server/snooping, DiffServ, Dying Gasp, DAI, Fanless, Guest VLAN, IGMP filtering/querier/snooping, ICMP, IP source guard, IPv4/IPv6 support, LACP, LLDP, MIB, Multicast Storm Control, PVST+, Port Security, PTP, QoS, RADIUS, RSPAN, REP, SmartPort, STP support, Syslog, Unicast Storm Control, UDLD, UDP, VTP v.2/v.3, Voice VLAN
Form Factor (Hubs & Switches) DIN rail mountable
MAC Address Table Size 8K entries
Manageable Yes
Ports 10
Product Type Switch
Remote Management HTTP, NTP, RMON, SCP, SNMP 1/2/3, SSH, Telnet, TFTP
Routing Protocol IGMP, IGMPv2, IGMPv3, MSTP, RSTP, STP
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Expansion Slots
Expansion Slots 1 (total) / 1 (free) x SD Memory Card
Connectivity
Interface Provided 1 x alarm, 1 x mini-USB Type B, 1 x serial (RS-232) RJ-45, 2 x 1000Base-X SFP, 2 x alarm, 8 x 10/100/1000 Base-T RJ-45
Port Quantity 8
Port Type 10/100/1000
Ports Type (2nd) Gigabit SFP
Power
Electric Current Required 5.4 A
Power Consumption Operational 39 watts
Redundant Power Supply Yes
Technical Information
Built-in Devices SD card reader
Humidity Range Storage 5 – 95% (non-condensing)
Max Operating Temperature 158°F
Max Storage Temperature 185°F
Min Operating Temperature -40°F
Min Storage Temperature -40°F
MTBF 549,808 Hours
Operating Humidity 5 – 95% (non-condensing)
Product Information
Authentication Method RADIUS, Secure Shell (SSH), TACACS+
Capacity ACL: 1500, IGMP groups: 1000, Queues: 8, STP instances: 128, VLAN IDs: 256
Device Type Internal power supply
Packaged Quantity 1
Ports (2nd) Quantity 2
Dimensions & Weight
Height 6 inch
Weight 3.75 lbs
Width 3.6 inch
Depth 5.3 inch
Certifications & Listings
Compliant Standards AS/NZS CISPR 32 Class A, CB 60950-1, CISPR 11 Class A, CISPR 35, CNS 13438 Class A, EN 300 386, EN 50121-4, EN 55032/CISPR 32 Class A, EN 60068-2-52, EN 60068-2-60, EN 60079-0, EN 60079-15, EN 61000-4-10, EN 61000-4-16, EN 61000-4-17, EN 61000-4-18, EN 61000-4-2, EN 61000-4-29, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, EN 61326-1, EN 61850-3, EN55024, FCC CFR47 Part 15 B Class A, ICES-003 Class A, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-30, IEC 60068-2-78, IEC 60079-0, IEC 60079-15, IEC 60950-1, IEC 61850-3, IEC 62368-1, IEC/EN 61010-2-201, IEEE 1588, IEEE 1613, KN32 Class A, KN35, UL 121201, UL/CSA 60079-0, UL/CSA 60079-15, UL/CSA 61010-2-201, UL/CSA/EN 62368-1, UL/CSA60950-1, VCCI Class A
ENERGY STAR Certified No
EPEAT Compliant No
TCO Certified No
