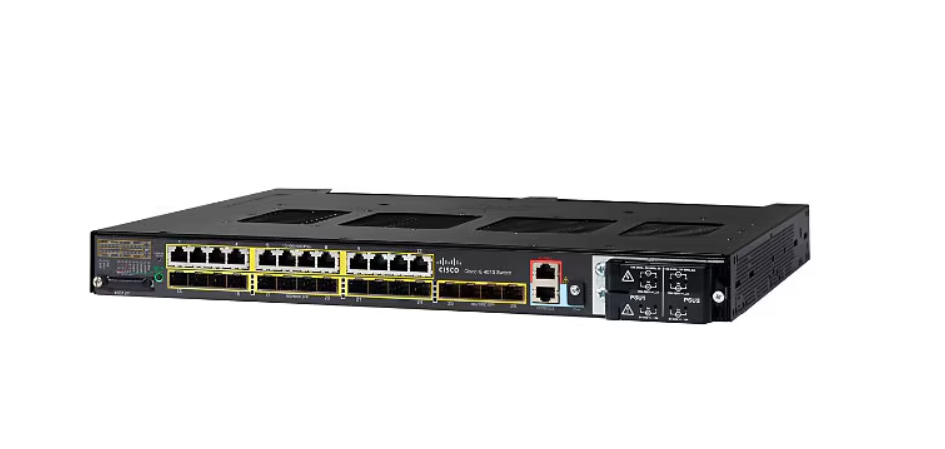

Cisco Industrial Ethernet 4010 Series – switch – 28 ports – managed – TAA Compliant

Add to Wishlist

Quick tech specs

  • Switch
  • 12 x 10/100/1000 (PoE+) + 4 x 10/100/1000/SFP (uplink) + 12 x 10/100/1000/SFP
  • TAA Compliant
  • managed
  • DIN rail mountable

44,899.00 د.إ

Add to Wishlist

Know your gear

Cisco Industrial Ethernet (IE) 4010 series Switches with 28 Gigabit Ethernet interfaces are high-performance ruggedized Layer2/3 switches with high-density Power-over-Ethernet (PoE) capabilities, making them an ideal choice for use as access switches in industrial environments. The 4010 delivers comprehensive Cisco IOS Software security features and high-availability ring protocols. The switch is ideal for outdoor enclosures or harsh environments while adhering to overall IT network design, compliance, and performance requirements.

The 4010 supports a GUI-based web user Interface, and Express Setup for the switch provides easy out-of-box configuration to deliver advanced security, data, video, and voice services over industrial networks.

SKU: IE-4010-16S12P= Category: Tag:
Category Specification
Overview
Brand Cisco
Product Line Cisco Industrial Ethernet
Model 4010 Series
Manufacturer Cisco Systems
Memory
Flash Memory Installed 128 megabyte
RAM Installed 1 GB
Network & Communication
Compliant Standards IEEE 1588v2, IEEE 1613, IEEE 802.11ac, IEEE 802.11n, IEEE 802.1ab (LLDP), IEEE 802.1ae, IEEE 802.1ag, IEEE 802.1ah, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3ah, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Features 802.1x authentication, Bidirectional Forwarding Detection (BFD), BOOTP support, Bridge protocol data unit (BPDU), CIP Sync (IEEE 1588), Class of Service (CoS), DHCP server, DHCP snooping, DiffServ support, Dynamic ARP Inspection (DAI), Dynamic ARP protection, EtherNet/IP CIP Messaging, Flex Link support, IGMP filtering, IGMP snooping, IP source guard, IPv6 support, LLDP support, MAC Address Notification, Management Information Base (MIB), Multiple Spanning Tree Protocol (MSTP) support, NAT support, Parallel Redundancy Protocol (PRP), Precision Time Protocol (PTP), PROFINET v2, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Remote Switch Port Analyzer (RSPAN), Resilient Ethernet Protocol (REP), SmartPort technology, Spanning Tree Protocol (STP) support, Storm Control, Syslog support, Tunneling, Uni-Directional Link Detection (UDLD), VLAN support
Form Factor (Hubs & Switches) DIN rail mountable
MAC Address Table Size 16K entries
Manageable Yes
Ports 28
Product Type Switch
Remote Management CLI, HTTP, RMON, RMON 2, SCP, SNMP, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet
Routing Protocol IGMP, IGMPv2, IGMPv3, Static IPv4 routing
Subcategory Network hubs and switches
Switching Type Gigabit Ethernet
Expansion Slots
Expansion Slots 1 (total) / 0 (free) x SD Memory Card
QSFP Slots 10/100/1000/SFP
Connectivity
Interface Provided 1 x console RJ-45, 1 x mini-USB Type B, 12 x 1000Base-T RJ-45, 12 x 1000Base-TX SFP, 4 x SFP uplink
Port Quantity 12
Port Type 10/100/1000 (PoE+)
Ports Type (2nd) 10/100/1000/SFP (uplink)
Software
Software Type Cisco IOS LAN Base
Technical Information
Encryption FIPS 140-2
Max Operating Temperature 167 degree Fahrenheit
Max Storage Temperature 185 degree Fahrenheit
Min Operating Temperature -40 degree Fahrenheit
Min Storage Temperature -40 degree Fahrenheit
MTBF 415,160 Hours
Operating Humidity 5 – 95% (non-condensing)
Product Information
Authentication Method RADIUS, TACACS
Capacity IGMP groups: 1000, NAT translations: 128, Virtual interfaces (VLANs): 1000
Packaged Quantity 1
Performance Forwarding bandwidth: 28 Gbps, Switching bandwidth: 56 Gbps
Ports (2nd) Quantity 4
Ports (3rd) Quantity 12
Included Items
Included Accessories 1 GB SD card
Dimensions & Weight
Height 1.8 inch
Height (Rack Units) 1U
Weight 12.74 lbs
Width 17.5 inch
Depth 14 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards BSMI CNS 13438 Class A, CB, China RoHS, CISPR 11 class A, CISPR 22 Class A, CISPR 24, CSA 22.2 No. 142, EN 50121-3-2, EN 50121-4, EN 61000-4-11, EN 61000-4-18, EN 61000-4-2, EN 61000-4-29, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-9, EN 61000-6-1, EN 61000-6-2, EN 61000-6-4, EN 61131-2, EN 61326, EN 61373, EN50155, EN55022 Class A, EN55024, FIPS 140-2, ICES-003 Class A, IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-3, IEC 60068-2-30, IEC 60068-2-52, IEC 60068-2-6, IEC 60068-2-60, IEC 60068-2-64, IEC 60529 IP30, IEC 61163, IEC 61850-3, IEC/UL/CSA/EN 60950-1, ISO 9223, KN22, NOM-019-SCFI-1998, RoHS, UL 508, VCCI Class A
ENERGY STAR Certified No
EPEAT Compliant No
TAA Compliant Yes
TCO Certified No
