Cisco Nexus 92160YC-X 48 SFP+ 10 Gbps Downlink Ports 6 Uplink 40 – 100 Gigabit Speeds 2x Managed Ports L3 Switch


Interface Types:Ā Ethernet RJ45, SFP

Electrical Interface:Ā Ethernet 10Gigabit – 10Gbps

Bays/Ports/Slots:Ā 48

U Height:Ā 1U

Voltage:Ā 110-240V Multi

29,999.00 د.إ

Cisco Nexus 92160YC-X 48 SFP+ 10 Gbps Downlink Ports 6 Uplink 40 – 100 Gigabit Speeds 2x Managed Ports L3 Switch – Brand New

Cisco Nexus 92160YC-X 48 SFP+ 10 Gbps Downlink Ports 6 Uplink 40 – 100 Gigabit Speeds 2x Managed Ports L3 Switch

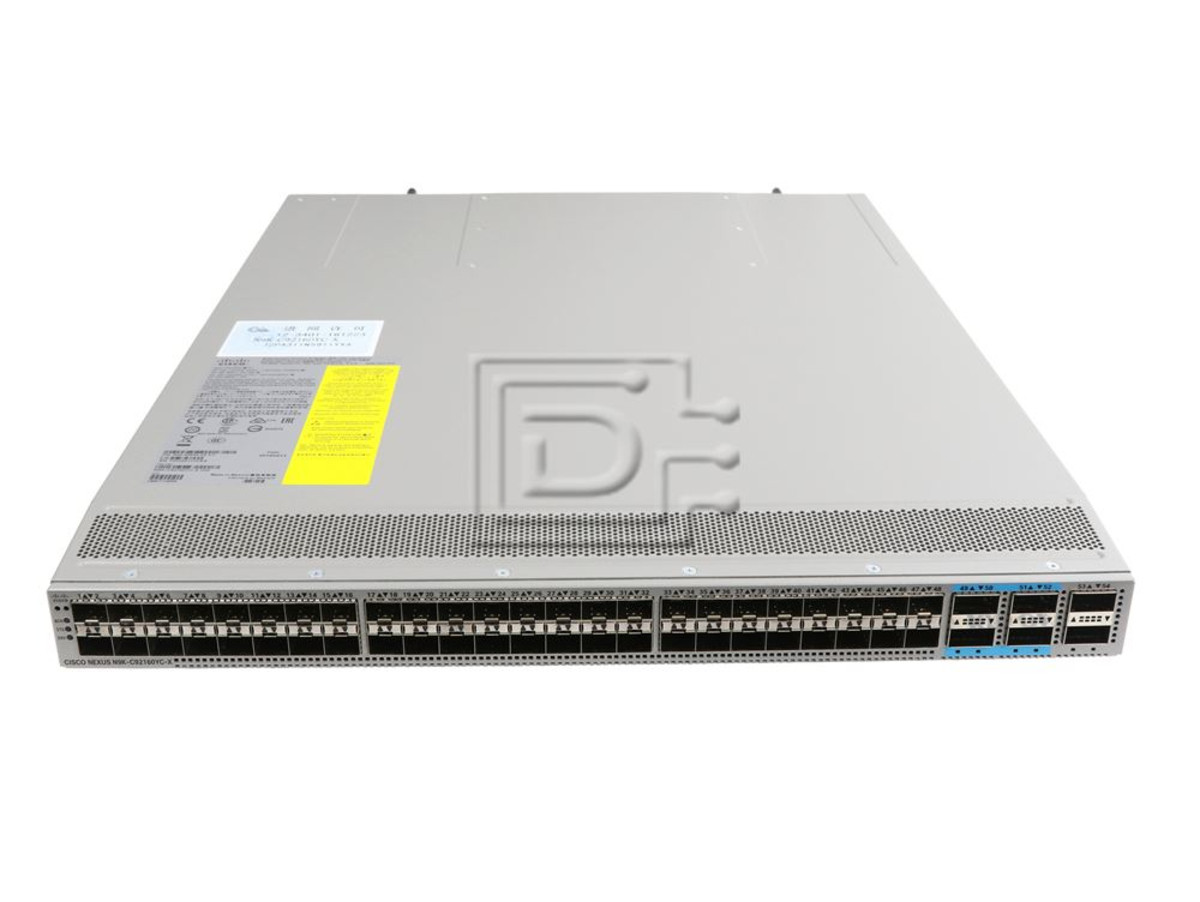

The Cisco Nexus 92160YCX switch is a 1 rack unit (RU) switch that has 48 SFP+ downlink ports supporting Gigabit speeds, six uplink ports supporting 40- or 100-Gigabit speeds, two network management ports (RJ-45 and SFP+), one RS-232 console port for setting the initial switch configuration, and one USB port for saving or loading switch configurations.

Main Features
  • X
  • Switch
  • L3
  • managed
  • 48 x 10 Gigabit SFP+ + 6 x 40 Gigabit QSFP+ (uplink) + 4 x 100 Gigabit QSFP
  • rack-mountable
SKU: N9K-C92160YC X Category:

92160YC-X

  • 16GB RAM
  • 20MB Flash
  • 3.2Tbps Bandwidth
  • Rapid Per-VLAN Spanning Tree Plus instances: 507, Virtual Routing and Forwarding (VRF) entries: 16000, Virtual interfaces (VLANs): 4096, ACL entries (egress): 2000, Longest prefix match (LPM) entries (IPv4): 16000, Multiple Spanning Tree Protocol instances: 64, Longest prefix match (LPM) entries (IPv6): 20000, IGMP snooping entries: 32000, IPv4 routes (Multicast): 32000, Equal-Cost Multipathing (ECMP) ways: 64, ACL entries (ingress): 4000
  • 48x 10Gbps Ethernet SFP+ Downlink
  • 6x 40Gbps QSFP+ uplink
  • 4x 100Gbps QSFP
  • Layer 3
  • 96k entries for MAC Address table
  • Managed
  • CLI Protocol
  • 48 x 10GBase-T SFP+ downlink, 4 x 100Gbit LAN QSFP+ uplink, 1 x management SFP+, 1 x management RJ-45, 1 x USB, 6 x 40Gbit LAN QSFP+ uplink, 1 x serial (RS-232) RJ-45
  • Width :17.3 inch
  • Depth :22.5 inch
  • Height :1.7 inch
  • Weight :14.11 lbs







Weight:Ā 40Ā lb
