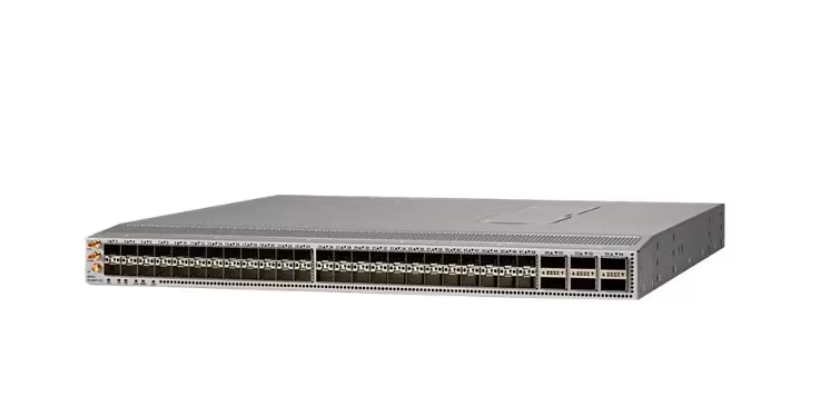

Cisco Nexus 93180YC-FX3 – switch – 48 ports – managed – rack-mountable
Quick tech specs
- FX3
- L3
- 48 x 1/10/25 Gigabit SFP+ + 6 x 40/100 Gigabit QSFP28
- Switch
- managed
- rack-mountable
AED150,799.00
Know your gear
The Cisco Nexus 93180YC-FX3 Switch is a 1RU switch that supports 3.6 Tbps of bandwidth and 1.2 bpps. The 48 downlink ports on the 93180YC-FX3 are capable of supporting 1-, 10-, or 25-Gbps Ethernet, offering deployment flexibility and investment protection. The 6 uplink ports can be configured as 40 and 100-Gbps Ethernet, offering flexible migration options. Cisco Nexus 93180YC-FX3 switch supports standard PTP Telecom profiles with SyncE and PTP boundary clock functionality for Telco data center edge environments.
| Category | Specification |
|---|
| Overview |
| Brand | Cisco |
| Product Line | Cisco Nexus |
| Model | 93180YC-FX3 |
| Manufacturer | Cisco Systems |
| Memory |
| RAM Installed | 32 GB |
| Network & Communication |
| Advanced Switching | Layer 3 |
| Compliant Standards | IEEE 802.1ae, ITU-T G.8275.1 |
| Features | 4 fans, Access Control List (ACL) support, Approximate Fair Dropping (AFD), Data Center Bridging (DCB), Data Center Bridging Exchange (DCBX) support, Dynamic Packet Prioritization (DPP), Elephant Trap (ETRAP), Enhanced transmission selection (ETS), Ethernet Virtual Private Network (EVPN), Explicit Congestion Notification (ECN), Flow control, Media Access Control Security (MACsec), NAT support, Precision Time Protocol (PTP), Priority-Based Flow Control (PFC), RDMA support, Switched Port Analyzer (SPAN), Synchronous Ethernet (SyncE), Virtual Extensible LAN (VXLAN), Virtual PortChannel (vPC) technology, VXLAN tunnel endpoints (VTEP) support |
| Form Factor (Hubs & Switches) | Rack-mountable |
| MAC Address Table Size | 512K entries |
| Manageable | Yes |
| Ports | 48 |
| Product Type | Switch |
| Remote Management | CLI, HTTP, HTTPS, IPv6, JSON, NETCONF, RESTCONF |
| Routing Protocol | BGP, ECMP, EIGRP, HSRP, MPLS, MSDP, OSPF, PIM-SM, PIM-SSM, RIP-2, RSVP |
| Subcategory | Network hubs and switches |
| Switching Type | 25 Gigabit Ethernet |
| Connectivity |
| Interface Provided | 1 x management RJ-45, 1 x serial (RS-232), 1 x ToD RJ-45, 1 x USB, 48 x 1/10/25GBase-X SFP+, 6 x 40/100GBase-X QSFP28 |
| Port Quantity | 48 |
| Port Type | 1/10/25 Gigabit SFP+ |
| Ports Type (2nd) | 40/100 Gigabit QSFP28 |
| Power |
| Hot-Plug | Hot-plug |
| Power Consumption Operational | 375 watt |
| Power Supplies Supported | 2 |
| Redundant Power Supply | Optional |
| Redundant Power Supply Supported | N+1 |
| Software |
| Software Type | Cisco NX-OS 10.1.1 |
| Technical Information |
| Built-in Devices | 128 GB SSD |
| Max Operating Temperature | 104 degree Fahrenheit |
| Max Storage Temperature | 158 degree Fahrenheit |
| Min Operating Temperature | 32 degree Fahrenheit |
| Min Storage Temperature | -40 degree Fahrenheit |
| MTBF | 288,760 Hours |
| Operating Humidity | 5 – 95% (non-condensing) |
| Product Information |
| Capacity | ACL entries (egress): 2000, ACL entries (ingress): 5000, Buffer capacity (MB): 40, ECMP paths: 64, Fabric extenders per switch: 16, Flow-table size used for Cisco Tetration Analytics platform: 64000, HSRP groups: 490, IGMP snooping groups (maximum): 32000, IGMP snooping groups (shipping): 8000, IP host entries: 1792000, Longest prefix match (LPM) routes: 1792000, Maximum number of links in a port channel: 32, MST instances: 64, Multicast routes: 128000, NAT entries: 1023, Port channels: 512, Queues: 8, RPVST instances: 3967, SPAN sessions: 4, VLANs supported: 4096, VRF instances (maximum): 16000, VRF instances (shipping): 1000 |
| Device Type | Internal power supply |
| Packaged Quantity | 1 |
| Performance | Bandwidth: 3.6 Tbps |
| Ports (2nd) Quantity | 6 |
| Dimensions & Weight |
| Height | 1.7 inch |
| Weight | 20.99 lbs |
| Width | 17.3 inch |
| Depth | 19.5 inch |
| Physical Characteristics |
| Color Category | Gray |
| Certifications & Listings |
| Compliant Standards | AS/NZS 60950-1, AS/NZS CISPR22 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, Directive 2004/108/EC, Directive 2006/95/EC, EN 300 386, EN 55022 Class A, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55024, FCC CFR47 Part 15 A, GB 4943, ICES-003 Class A, IEC 60950-1 Second Edition, IEEE 1588, ITU-T G.8273.2 Class B, KN 61000-4, KN22 Class A, RoHS 6/6, UL 60950-1 Second Edition, VCCI Class A |
