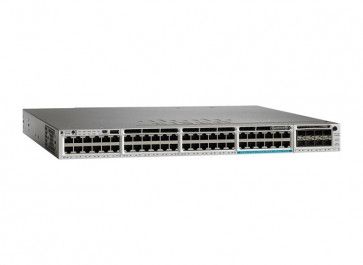

Stackable 48 10/100/1000 Ethernet UPOE ports, with 1100WAC power supply, 1 RU, IP Base feature set
The Cisco WS-C3850-48U-S is a high-performance enterprise switch that delivers robust network capabilities for today’s demanding environments. Designed to meet the varying needs of enterprises, this switch offers seamless connectivity and management. With advanced features such as PoE+, this switch ensures efficient power distribution to connected devices. The Cisco WS-C3850-48U-S supports a range of applications, making it an ideal choice for businesses looking to enhance their network infrastructure with reliable and scalable solutions.
WS-C3850-48U-S Specification
Model
WS-C3850-48U-S
Brand
Cisco
Enclosure Type
Rack-mountable – 1U
Ports
Stackable 48 10/100/1000 Cisco UPOE ports
Network Management Interface
Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling. Management console port: RJ-45-to-DB9 cable for PC connections
Available PoE Power
800W
Maximum Stacking Number
Up to 9 switches with same IOS feature set in same series
Stack Bandwidth
480Gbps
CPU
Multicore CPU
RAM
4 GB
Flash Memory
2 GB
Number of AP per Switch/Stack
100
Number of Wireless Clients per Switch/Stack
2000
Total Number of WLANs per Switch
64
Wireless Bandwidth per Switch
Up to 20Gbps
Supported Aironet AP Series
3600, 3500, 2600, 1600, 1260, 1140, 1040
Console Ports
USB (Type-B), Ethernet (RJ-45)
Expansion Slot(s)
1 network module slot and 1 power redundant slot
Network Modules Selection
Stacking Cable
STACK-T1-50CM, STACK-T1-1M, STACK-T1-3M
Stack Power Cable (recommended)
CAB-SPWR-30CM, CAB-SPWR-150CM
Power Supply
Power Device
Power supply – redundant – plug-in module
Power Redundancy
Optional
Voltage Range (Auto)
100V-240V
Power Consumption of Standalone
84.97W (max)
Dimensions (H x W x D)
1.75 x 17.5 x 19.2 inch; 4.45 x 44.5 x 48.8 cm
Rack Mounting Kit
Optional
MTBF in Hours
205,110
Compliant Standards
IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1X, IEEE 802.1X-Rev, IEEE 802.11, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, RMON I and II, SNMP v1, v2c, and v3
System Software
IOS IP Base
EnergyWise License
ENERGY-MGMT, ENERGY-MGT-100-K9
Features
RPS Support, Jumbo Frames, VLANS, Voice Vlan, VTPv2, CDPv2, LLDP, 802.3ad LACP, and PAgP, PVST/PVST+, 802.1W/802.1S, Port Fast/Uplink Fast, Dynamic Trunking Protocol (DTP), Port CoS Trust and Override, Trusted Boundary, ACL Classification, Ingress Policing, Auto QoS, Per VLAN policies, 802.1p queues, Scheduling, Priority Queuing, Configure CoS Priority Queues, Configure Queue Weights, Configure Buffers and Thresholds, Class & Policy Maps, Modify CoS and DSCP Mapping, Weighted Tail Drop, IGMPv1, v2, v3, and MLDv1, v2, DHCP server, DSCP transparency, HSRP, VRRP, BLGP, RIPv1, v2 EIGRP, PIM, OSPF, OSPFv3, EIGRPv6, BGPv4, IS-ISv4, VRF-lite, PIM-SM/DM, PIM sparse-dense mode, SSM, Flexible Netflow
Advanced Network Security
Port security, DHCP snooping, Dynamic ARP inspection (DAI), IP source guard, The Unicast Reverse Path Forwarding (uRPF), Bidirectional data support on a SPAN, User authentication, Private VLAN, Router and VLAN ACLs, complete identity and security, Multidomain authentication, MAC address notification, IGMP filtering, Cisco security VLAN ACL, Secure Shell (SSH) Protocol, Kerberos, and Simple Network Management Protocol Version 3 (SNMPv3), Port-based ACLs, TrustSec SXP, IEEE 802.1ae, TACACS+ and RADIUS authentication, Cisco standard and extended IP security router ACLs, Bridge protocol data unit (BPDU) Guard, Spanning Tree Root Guard (STRG), Wireless end-to-end security
Management
BRIDGE-MIB, CISCO-AUTH-FRAMEWORK-MIB, CISCO-BGP4-MIB, BGP4-MIB, CISCO-BRIDGE-EXT-MIB, CISCO-BULK-FILE-MIB, CISCO-CABLE-DIAG-MIB, CISCO-CALLHOME-MIB, CISCO-CEF-MIB, CISCO-CIRCUIT-INTERFACE-MIB, CISCO-ENTITY-VENDORTYPE-OID-MIB, CISCO-CONTEXT-MAPPING-MIB, CISCO-DEVICE-LOCATION-MIB, CISCO-DHCP-SNOOPING-MIB, CISCO-EIGRP-MIB, CISCO-EMBEDDED-EVENT-MGR-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, CISCO-ENTITY-SENSOR-MIB, ENTITY-MIB, CISCO-ERR-DISABLE-MIB, CISCO-CONFIG-COPY-MIB, CISCO-FLOW-MONITOR-MIB, CISCO-FTP-CLIENT-MIB, CISCO-HSRP-EXT-MIB, CISCO-HSRP-MIB, CISCO-IETF-ISIS-MIB, CISCO-IF-EXTENSION-MIB, CISCO-IGMP-FILTER-MIB, CISCO-CONFIG-MAN-MIB, CISCO-IP-CBR-METRICS-MIB, CISCO-IPMROUTE-MIB, CISCO-IP-STAT-MIB, CISCO-IP-URPF-MIB, CISCO-L2L3-INTERFACE-CONFIG-MIB, CISCO-LAG-MIB, CISCO-LICENSE-MGMT-MIB, CISCO-MAC-AUTH-BYPASS-MIB, CISCO-MAC-NOTIFICATION-MIB, CISCO-MDI-METRICS-MIB, CISCO-FLASH-MIB, CISCO-OSPF-MIB, CISCO-OSPF-TRAP-MIB, CISCO-PAE-MIB, CISCO-PAGP-MIB, CISCO-PIM-MIB, CISCO-PING-MIB, CISCO-PORT-QOS-MIB, CISCO-PORT-SECURITY-MIB, CISCO-PORT-STORM-CONTROL-MIB, CISCO-POWER-ETHERNET-EXT-MIB, CISCO-PRIVATE-VLAN-MIB, CISCO-PROCESS-MIB, CISCO-PRODUCTS-MIB, CISCO-RF-MIB, CISCO-RTP-METRICS-MIB, CISCO-RTTMON-MIB, CISCO-SMART-INSTALL-MIB, CISCO-SNMP-TARGET-EXT-MIB, CISCO-STACKMAKER-MIB, CISCO-MEMORY-POOL-MIB, CISCO-STP-EXTENSIONS-MIB, CISCO-SYSLOG-MIB, CISCO-TCP-MIB, CISCO-UDLDP-MIB, CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB, CISCO-VLAN-MEMBERSHIP-MIB, CISCO-VTP-MIB, EtherLike-MIB, HC-RMON-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, IF-MIB, IGMP-MIB, IGMP-STD-MIB, IP-FORWARD-MIB, IP-MIB, IPMROUTE-STD-MIB, LLDP-EXT-MED-MIB, LLDP-MIB, NOTIFICATION-LOG-MIB, OLD-CISCO-MEMORY-MIB, CISCO-CDP-MIB, POWER-ETHERNET-MIB, RMON2-MIB, RMON-MIB, SNMP-COMMUNITY-MIB, SNMP-FRAMEWORK-MIB, SNMP-MPD-MIB, SNMP-NOTIFICATION-MIB, SNMP-PROXY-MIB, SNMP-TARGET-MIB, SNMP-USM-MIB, SNMPv2-MIB, SNMP-VIEW-BASED-ACM-MIB, TCP-MIB, UDP-MIB, CISCO-IMAGE-MIB, CISCO-STACKWISE-MIB, AIRESPMACE-WIRELESS-MIB, CISCO-LWAPP-IDS-MIB, CISCO-LWAPP-AP-MIB, CISCO-LWAPP-CCX-RM-MIB, CISCO-LWAPP-CLIENT-ROAMING-MIB, CISCO-LWAPP-DOT11-CCX-CLIENT-DIAG-MIB, CISCO-LWAPP-DOT11-CCX-CLIENT-MIB, CISCO-LWAPP-DOT11-CLIENT-CCX-REPORTS-MIB, CISCO-LWAPP-DOT11-CLIENT-MIB, CISCO-LWAPP-DOT11-MIB, CISCO-LWAPP-DOWNLOAD-MIB, CISCO-LWAPP-LINKTEST-MIB, CISCO-LWAPP-MFP-MIB, CISCO-LWAPP-MOBILITY-EXT-MIB, CISCO-LWAPP-QOS-MIB, CISCO-LWAPP-REAP-MIB, CISCO-LWAPP-ROGUE-MIB, CISCO-LWAPP-RRM-MIB, CISCO-LWAPP-SI-MIB, CISCO-LWAPP-TSM-MIB, CISCO-LWAPP-WLAN-MIB, CISCO-LWAPP-WLAN-SECURITY-MIB
Technical Support and Services
Cisco SMARTnet Service, Cisco Smart Foundation Service, Cisco SP Base Service, Cisco Focused Technical Support Services
