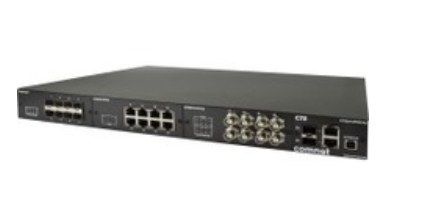

ComNet – CTS24+2TXPOE – ComNet CTS24+2 Switch Chassis – 24 Ports – Manageable – 2 Layer Supported – Modular – 2 SFP Slots – 20 W Power Consumption – Twisted Pair, Optical Fiber – 1U – Rack-mountable

The ComNet CTS24+2 is a managed layer-2 commercial grade Ethernet transport system and provides up to 24 ports of 10/100TX Ethernet and two ports of 10/100/1000TX or 1000FX transmission. The CTS24+2 series allows for ultimate flexibility in combining standard copper, optical, and extended distance Ethernet all in one rack mounted chassis configuration. Optional PoE allows the user to customize a solution to fit a specific application in a 1 RU rack space.

The system includes a chassis with optional PoE supplies of 400 or 720 Watts. Up to three 8 channel modules can be ordered to populate the system. These modules are offered in conventional CAT5/6 10/100 Mbps Ethernet, 100FX optical SFP, or CopperLine® Coax or UTP interfaces. The selected combination of chassis and modules are assembled at the factory to ensure your configuration is tested as a complete unit.

Features

• Commercial Grade
• IEEE802.3at PoE+ 30W (PoE models only)
• Tagged VLAN (IEEE 802.1Q)
• STP & RSTP supported
• Fully configurable via web based GUI or USB CLI
• IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
• Gigabit combo uplinks
• Modules capable of 8 ports each, up to a total of 24 configurable PoE-capable ports.
• CopperLine rate management (10/100 Mbps)
• Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput
