Crestron HD-MD4X1-4KZ-E – video/audio switch – 4 ports

Add to Wishlist

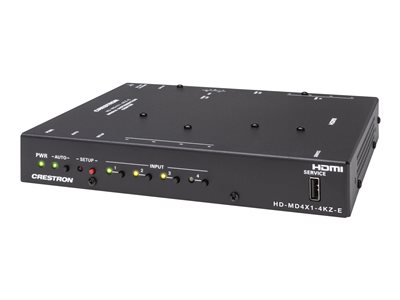

Crestron HD-MD4X1-4KZ-E – Video/audio switch – 4 x HDMI – desktop

AED3,799.00

Add to Wishlist

The HD-MD4X1-4KZ-E is a 4K60 4:4:4 HDR (High Dynamic Range) AV switcher that provides a cost-effective solution for professional AV applications. Equipped with four HDMI inputs and one HDMI output, the HD-MD4X1-4KZ-E includes features such as automatic switching of inputs, EDID management, HDCP 2.3 compliance, enterprise-grade security, and XiO Cloud service support.

SKU: HD-MD4X1-4KZ-E Category: Tag:
Device Type Video/audio switch – 4 ports
Enclosure Type Desktop
Subtype HDMI
Ports 4 x HDMI
Remote Management Protocol HTTPS, SSH
Encryption Algorithm TLS, PKI
Authentication Method Secure Shell (SSH)
Max Resolution 4096 x 2160 @ 60 Hz
Features DHCP support, auto-negotiation, half duplex mode, full duplex mode, firmware upgradable, HDCP compliant, SSH support, 4K resolution support, 802.1x authentication, 2K resolution support, metal housing, Advanced EDID Management, LPCM 7.1 support, Dolby TrueHD support, Dolby Digital Plus support, DTS-HD Master Audio support, EDID Management, 1080p resolution support, DTS support, DTS-HD support, Dolby Atmos support, DTS

support, Dolby Digital EX support, 1080i resolution support, Dolby Digital support, HTTPS encryption, HDR 4K60 4:4:4 compatible, auto-switching, HDR10 support, Dolby Vision HDR support, HDR10+ support, audio de-embedding
Status Indicators Power, auto, input
Expansion / Connectivity Interfaces: 1 x HDMI output Type A ¦ 4 x HDMI input Type A ¦ 1 x 100 / 1000Base-T RJ-45 PoE ¦ 1 x audio output 5 pin terminal block ¦ 1 x USB Type A management
Power Power Consumption Operational: 10 Watt
Features PoE powered
Miscellaneous Color: Black ¦ Compliant Standards: IC, CEC, EDID compatible, TLS, FCC Part 15 Class B, IEEE 802.1x, HDCP 2.3
Dimensions & Weight Width: 7 in ¦ Depth: 1.3 in ¦ Height: 8.5 in ¦ Weight: 28.92 oz
Environmental Parameters Min Operating Temperature: 32 °F ¦ Max Operating Temperature: 104 °F ¦ Humidity Range Operating: 10 – 90% (non-condensing)
