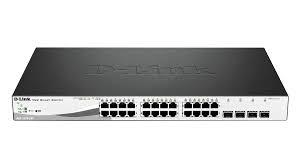

D-Link 28-Port Gigabit WebSmart PoE Switch with 24 UTP and 4 SFP Ports DGS-1210-28P

The DGS-1210 Series is the latest generation of D-Link Web Smart Switches featuring D-Link Green 3.0 technology. The series complies with the IEEE 802.3az Energy Efficient Ethernet standard. Support for IPv6 management and configurations ensure your network remains protected after the upgrade from IPv4 to IPv6*. By offering multiple management options, the DGS-1210 series allows quick deployment, infrastructure expansion, and seamless function upgrades. Targeting small and medium-sized businesses, the DGS-1210 Web Smart Switches provide functionality, security, and manageability for a fraction of the standard cost of ownership. The new DGS-1210-28P is a PoE Web Smart Switch that provides 24 10/100/1000 Base-T PoE ports with 4 Gigabit SFP ports. In addition to IEEE 802.3af compliance, ports 1-4 provide up to 30 watts of power output following IEEE 802.3at. The design allows more flexibility in power allocation for a variety of powered devices with affordable installation costs.

Energy Saving
DGS-1210 switches are capable of conserving power without sacrificing operational performance or functionality by using D-Link Green 3.0 technology. Using the Energy Efficient Ethernet standard, the network will automatically decrease the power usage when traffic is low with no setup required. For environments not fully supporting the standard, DGS-1210 switches offer advanced power-saving settings including port shutoff and standby, LED shutoff, and system hibernation based on custom time profiles. The time profiles can also be applied to the PoE switch so that unnecessary power consumption can be saved during off hours. The DGS-1210 Series switches can also detect the length of connected cables to automatically reduce power usage on shorter cable connections.

Easy Management
The D-Link Web Smart Switch series is designed for easy management. All configurations can be made through a Web interface regardless of the host PC’s operating system. In the first installation, the SmartConsole Utility will automatically discover all D-Link Smart switches in the network, allowing administrators to assign IP addresses and the subnet mask quickly. It also allows simultaneous firmware upgrades to multiple switches, saving a great deal of time. Important management commands, such as download firmware or configuration file, offer a sophisticated method of batch operations for multiple switches.

Auto Surveillance VLAN and Voice VLAN
The D-Link Web Smart series automates the process of setting up IP surveillance and VoIP devices on a network. Auto Surveillance VLAN consolidates data and surveillance video transmission through the network, sparing businesses the expense of maintaining dedicated facilities. ASV also protects the quality of real-time video by grouping IP surveillance devices on a single high priority VLAN. This ensures that surveillance video streams will not be affected when ordinary data traffic are at their highest levels. Similarly, the Auto Voice VLAN guarantees clear quality and efficient transmission for all voice communication.

Extensive Layer 2 Features
Equipped with a complete line-up of L2 features, these switches include IGMP Snooping, Port Mirroring, Spanning Tree, and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostic feature designed primarily for administrators and customer service representatives, can rapidly discover the type of error and determine the cable quality.

Secure your Network
D-Link’s innovative Safeguard Engine protects the switches against traffic flooding caused by virus attacks. The switches also support 802.1X port-based authentication, allowing the network clients to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and protects the network by screening traffic from illegal MAC or IP addresses. ARP Spoofing Prevention prevents malicious intruders from sending massive fake ARP messages through a manipulated source. This protects important data from being stolen by Man-in-the-Middle attacks, and prevents wasting CPU cycles on these packets. For added security, the DHCP Server Screening feature blocks rogue DHCP server packets from user ports to prevent unauthorized IP assignment. DGS-1210 Series D-Link’s DGS-1210 Series Web Smart Switches are the latest generation of switches featuring D-Link Green Technology. The DGS-1210 Series integrates advanced management as well as security functions that provide performance and scalability. Management options for the switch include SNMP, Web Management, D-Link Network Assistant Utility, and compact command lines. The DGS-1210 Series uses Auto Voice VLAN, ensuring bandwidth is prioritized for a smoother voice performance. The DGS-1210-10/10P/20/28 features a fanless design that allows for quieter operation and helps to extend the device’s lifetime, while the DGS-1210-28P/52/52P/52MP feature a smart fan design that powers on after the switch reaches a certain temperature, saving energy and cutting costs without sacrificing performance. Energy Saving Incorporating D-Link Green technology, the DGS-1210 Series switches are capable of powersaving without sacrificing operational performance or functionality. Link status drastically reduces power consumption by automatically toggling ports without a link to sleep mode. The DGS-1210 Series takes the approach to green IT one step further by incorporating a special chipset with advanced silicon technology for efficient use of energy. Extensive Management and Layer 2 Features Equipped with a complete lineup of L2 features, the DGS-1210 Series includes IGMP snooping, port mirroring, spanning tree protocol and Link Aggregation Control Protocol (LACP). The IEEE 802.3x flow control function allows servers to directly connect to the switch for fast, reliable data transfers. At 2000 Mbps full duplex, the Gigabit ports provide high-speed data pipes to servers with minimum impact to data transfer fidelity. Network maintenance features include loopback detection and cable diagnostics. Loopback detection is used to detect loops created by a specific port and automatically shut down the affected port. The cable diagnostic feature, designed primarily for administrators and customer service representatives, can rapidly discover errors and determine the cable quality, allowing hassle free diagnostics and maintenance. Features Green Technology • Power saving via the following features: • Link Status detection • LED Shut-Off • Port Shut-Off • System Hibernation • Time-based PoE (DGS-1210- 10P/28P/52MP/52P only) Security Features • Access Control List secures network • D-Link Safeguard Engine protects CPU from Broadcast/Multicast/Unicast Flooding • Port Security supports 64 MACs per port • ARP Spoofing Prevention Intuitive Management • D-Link Network Assistant Utility or Web-based GUI • Built-in SNMP MIB for remote NMS (D-View 6.0) • Compact CLI through Telnet Advanced Features • Auto Surveillance VLAN • Loopback Detection automatically disables a port when a loop is detected • Cable Diagnostics allows administrators to determine cable status • SFP ports for flexibility • Auto MDI/MDIX Save Energy, Save Money D-Link Green technology conserves energy by powering down unused ports, saving you money while reducing your carbon footprint Manageability Advanced management functions make for a truly versatile switch that integrates performance and scalability IPv6 Ready Fully IPv6 compatible and ready for enterprise deployment, giving you a head start on the next Internet standards evolution Highlights DGS-1210 Series Web Smart Switch QoS, Bandwidth Control The DGS-1210 Series supports Auto Surveillance VLAN (ASV), and Auto Voice VLAN, which are best suited for VoIP and video surveillance deployments. Auto Surveillance VLAN is a new, industry-leading technology that the DGS-1210 Series Web Smart Switch provides. This technology consolidates data and surveillance video transmission through a single DGS-1210 Series, thus sparing businesses the expense of dedicated hardware and facilities. ASV also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data. The Auto Voice VLAN technology enhances the VoIP service by automatically placing voice traffic from an IP phone to an assigned VLAN. With higher priority and individual VLAN, these features guarantee the quality and security of VoIP traffic. The DSCP markings on Ethernet packets enable different levels of service to be assigned to network traffic. As a result, these voice and video packets take precedence over other packets. In addition, with bandwidth control, network administrators can reserve bandwidth for important functions that are higher priority or require a larger bandwidth. Secure your Network D-Link’s innovative Safeguard Engine protects the switches against traffic flooding caused by virus attacks. The DGS-1210 Series supports 802.1X port based authentication, allowing the network to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and helps to protect the internal IT network. The DGS-1210 Series includes ARP spoofing prevention, which protects from attacks on the network that may allow an intruder to sniff data frames, modify traffic, or bring traffic to a halt altogether by sending fake ARP messages. To prevent ARP spoofing attacks, the switch uses packet control ACLs to block invalid packets that contain fake ARP messages. For added security, the DHCP server screening feature routes DHCP server packets from user ports to prevent unauthorized IP assignment. Versatile Management The DGS-1210 Series provides a D-Link Network Assistant Utility that enables administrators to remotely control their network down to the port level. The D-Link network assistant utility allows customers to easily discover multiple D-Link Web Smart Switches within the same L2 network segment. With this utility, users do not need to change the IP address of their PC. It also simplifies the initial setup by taking switches, within the same L2 network segment, that are connected to the user’s PC, and displaying them on screen for instant access. This allows extensive switch configuration and basic setup of discovered devices, including password changes and firmware upgrades. The DGS-1210 Series also supports D-View 6.0 and Compact Command Line Interface (CLI) through Telnet. D-View 6.0 is a network management system that allows for the central management of critical network characteristics such as availability, reliability, resilience, and security. Seamless Integration The DGS-1210 Series comes with Ethernet and Gigabit copper ports capable of connecting to existing Cat5 twisted-pair cables. Additionally, with its 8/16/24/48 10/100/1000 Mbps plus four 1G SFP ports for the DGS-1210- 20/28/52 models; plus two 1G SFP ports for the DGS-1210-10/10P and 24/48 10/100/1000 Mbps PoE plus four 1G SFP ports for the DGS-1210-52MP/28P/52P models, the switch can provide a more flexible solution for upstream or downstream server connections. Technical Specifications General Model • DGS-1210-28 • DGS-1210-52 • DGS-1210-10 • DGS-1210-20 Interfaces • 24 Ports 10/100/1000 Mbps, • 4 SFP • 48 Ports 10/100/1000 Mbps • 4 SFP • 8 Ports 10/100/1000 Mbps • 2 SFP • 16 Ports 10/100/1000 Mbps • 4 SFP Port Standards & Functions • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper) • IEEE 802.3az compliance • Auto-negotiation • IEEE 802.3x Flow Control Network Cables • UTP Cat. 5, Cat. 5e (100 m max.) Full/Half Duplex • Full/half duplex for 10/100 Mbps speeds • Full duplex for Gigabit speed Media Interface Exchange • Auto MDI/MDIX adjustment for all twisted-pair ports DGS-1210 Series Web Smart Switch Performance Switching Capacity • 56 Gbps • 104 Gbps • 20 Gbps • 40 Gbps Transmission Method • Store-and-forward MAC Address Table • 16 ,000 entries per device Maximum 64 bytes packet forwarding rate • 41.7 Mpps • 77.4 Mpps • 14.88 Mpps • 29.8 Mpps Packet Buffer Memory • 1.5 MB • 3.0 MB • 1.5 MB DDRIII for CPU • 128 Mbytes Flash Memory • 16 Mbytes Physical/Environmental AC Input • 100 to 240 VAC 50/60 Hz internal universal power supply Maximum Power Consumption • 22.45 watts • 38.27 watts • 13.59 watts • 16.09 watts Standby Power Consumption • 17.65 W/100 V, 17.84 W/240 V • 29.44 W/100 V /29.49 W/240 V • 9.3 W/100V / 9.4 W/240 V • 8.59 W/100 V / 8.80 W/240 V Acoustics • 0 dBA • Low speed: 39.8 dBA • High speed: 49.2 dBA • 0 dBA • 0 dBA Heat Dissipation • 76.55 Btu/hr • 130.58 Btu/hr • 46.37 Btu/hr • 54.91 Btu/hr Operating Temperature • -5 to 50 ˚C (23 to 122 °F) Storage Temperature • -20 to 70 ˚C (-4 to 158 °F) Operating Humidity • 0% to 95% non-condensing Storage Humidity • 0% to 95% non-condensing Dimensions (L x W x H) • 440 mm x 140 mm x 44 mm (17.32 x 5.51 x 1.73 inches) • 440 mm x 210 mm x 44 mm (17.32 x 8.27 x 1.73 inches) • 280 mm x 126 mm x 44 mm (11.02 x 4.96 x 1.73 inches) • 280 mm x 180 mm x 44 mm (11.02 x 7.09 x 1.73 inches) Weight • 1.67 kg (3.68 lbs) • 2.58 kg (5.69 lbs) • 1.54 kg (3.39 lbs) • 1.28 kg (2.82 lbs) Diagnostic LEDs • Link/Activity/Speed (Per 10/100/1000 Mbps port) Certifications • CE Class A • VCCI Class A • FCC Class A • cUL • CE (LVD) • BSMI • CCC • C-Tick • CCC MTBF • 540,000 hours • 481,624 hours • 360,844 hours • 317,412 hours DGS-1210 Series Web Smart Switch General Model • DGS-1210-10P • DGS-1210-28P • DGS-1210-52MP • DGS-1210-52P Interfaces • 8 Ports 10/100/1000Mbps PoE • 2 SFP • 24 Ports 10/100/1000 Mbps PoE • 4 SFP • 48 Ports 10/100/1000 Mbps PoE • 4 SFP • 24 Ports 10/100/1000 Mbps PoE • 24 Ports 10/100/1000 Mbps • 4 SFP Port Standards & Functions • 8 Ports compliant with 802.3at • Ports 1~4 compliant with 802.3at • Ports 5~24 compliant with 802.3af • Ports 1~8 compliant with 802.3at • Ports 9~48 compliant with 802.3af • Ports 1~8 compliant with 802.3at • Ports 9~24 compliant with 802.3af Other Port Standards & Functions • IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper) • IEEE 802.3az compliance • Auto-negotiation • IEEE 802.3x Flow Control • IEEE802.3, IEEE802.3u, IEEE802.3ab • IEEE802.3az • IEEE802.3z Network Cables • UTP Cat. 5, Cat. 5e (100 m max.) Full/Half Duplex • Full/half duplex for 10/100 Mbps speeds • Full duplex for Gigabit speed Media Interface Exchange • Auto MDI/MDIX adjustment for all twisted-pair ports Performance Switching Capacity • 40 Gbps • 56 Gbps • 104 Gbps Transmission Method • Store-and-forward MAC Address Table • 16 ,000 entries per device MAC Address Update • Up to 256 static MAC entries Maximum 64 bytes packet forwarding rate • 14.88 Mpps • 41.7 Mpps • 77.4 Mpps Packet Buffer Memory • 1.5 MB • 3.0 MB DDRIII for CPU • 128 Mbytes Flash Memory • 16 Mbytes Physical/Environmental AC Input • 100 to 240 VAC 50/60 Hz internal universal power supply Maximum Power Consumption • 103.4 Watts (PoE on) • 17.9 Watts (PoE off) • 251.3 watts (PoE on) • 26.3 watts (PoE off) • 483.1 watts (PoE on) • 48.9 watts (PoE off) • 270.2 watts (PoE on) • 46.5 watts (PoE off) Maximum PoE Budget • 78W • 193W • 370W • 193W Standby Power Consumption • 10.3 W/100 V / 11.1 W/240 V • 24 W/100 V / 21.9 W/240 V • 29.5 W/100 V / 27.5 W/240 V • 29.6 W/100 V / 28.2 W/240 V Acoustics • 0 dBA • Low speed: 47 dBA • High speed: 52.4 dBA • Low speed: 40.4 dBA • High speed: 50.1 dBA • Low speed: 37.8 dBA • High speed: 47.3 dBA Heat Dissipation • 352.63 Btu/hr • 840.89 Btu/hr • 1648.23 Btu/hr • 912.96 Btu/hr Operating Temperature • -5 to 50 ˚C (23 to 122 °F) Storage Temperature • -20 to 70 ˚C (-4 to 158 °F) DGS-1210 Series Web Smart Switch Operating Humidity • 0% to 95% non-condensing Storage Humidity • 0% to 95% non-condensing Dimensions (L x W x H) • 280 mm x 180 mm x 44 mm (11.02 x 7.08 x 1.73 inches) • 444 mm x 210 mm x 44 mm (17.32 x 8.27 x 1.73 inches) • 440 mm x 430 mm x 44 mm (17.32 x 16.9 x 1.73 inches) • 440 mm x 430 mm x 44 mm (17.32 x 16.9 x 1.73 inches) Weight • 1.41 kg (3.1 lbs) • 2.54 kg (5.60 lbs) • 5.78 kg (12.74 lbs) • 5.66 kg (12.47 lbs) Diagnostic LEDs • Link/Activity/Speed (Per 10/100/1000 Mbps port) Certifications • CE Class A • VCCI Class A • FCC Class A • BSMI • CCC • C-Tick • cUL • CE (LVD) • CCC MTBF • 315,336 hours • 239,236 hours • 318,616 hours • 220,722 hours Software L2 Features • MAC Address Table • 16K entries • IGMP Snooping • IGMP v1/v2 Snooping • Supports 256 IGMP groups • Supports at least 64 static multicast addresses • IGMP per VLAN • Supports IGMP Snooping Querier • Loopback Detection • 802.3ad Link Aggregation: • DGS-1210 28/28P: Maximum of 14 groups/8 ports per group • DGS-1210 52/52MP/52P: Maximum of 26 groups/8 ports per group • DGS-1210 -10/10P: Maximum of 5 groups/8 ports per group • LLDP • LLDP-MED • Jumbo Frame • Up to 9,216 bytes • Spanning Tree Protocol • 802.1D STP • 802.1w RSTP • Flow Control • 802.3x Flow Control • HOL Blocking Prevention • Port Mirroring • One-to-One • Many-to-One • Supports Mirroring for Tx/Rx/Both • Multicast Filtering • Forwards all unregistered groups • Filters all unregistered groups • Configurable MDI/MDIX • MLD snooping v1/v2 (256 groups) VLAN • 802.1Q • VLAN Group • Max. 256 static VLAN groups • Configurable VID from 1 – 4094 • Asymmetric VLAN • Auto Voice VLAN • Max. 10 user-defined OUI • Max. 8 default OUI • Auto Surveillance VLAN Quality of Service (QoS) • 802.1p Quality of Service • 8 queues per port • Queue Handling • Strict • Weighted Round Robin (WRR) • Bandwidth Control • Port-based (Ingress/Egress, min granularity 10/100/1000 is 64 Kbps) • QoS based on: • 802.1p Priority Queues • DSCP • ToS • IPv6 Traffic Class • TCP/UDP port L3 Features • IP Interface • Supports 1 interface • IPv6 Neighbor Discovery (ND) Access Control List (ACL) • Max. 50 access list • Max. 768 rules shared by IPv4, MAC and IPv6 • Each rule can only be associated with a single port • ACL based on • 802.1p priority • VLAN • MAC address • Ether type • IP address • DSCP • Protocol type • TCP/UDP port number • IPv6 Traffic Class DGS-1210 Series Web Smart Switch Security • Broadcast/Multicast/Unicast Storm Control • D-Link Safeguard Engine • DHCP Server Screening • IP-MAC-Port Binding (Smart Binding) • Supports 512 address binding entries • ARP Inspection • ARP + IP Inspection • Supports DHCP Snooping • 802.1X Port-based Access Control • ARP Spoofing Prevention • Max. 64 entries • Traffic Segmentation • SSH v2 • SSL • Supports v1/v2/v3 • Port Security • Supports up to 64 MAC addresses per port • Duplicate address detection AAA • 802.1X Authentication • Supports local/RADIUS database • Supports port-based access control • Supports EAP, OTP, TLS, TTLS, PEAP • IPv6 RADIUS Server • Support MD5 authentication MIB/RFC Standards • RFC 783 TFTP • RFC 951 BootP/DHCP Client • RFC 1157 SNMP v1, v2, v3 • RFC 1213 MIB II • RFC 1215 MIB Traps Convention • RFC 1350 TFTP • RFC 1493 Bridge MIB • RFC 1769 SNTP • RFC 1542 BootP/DHCP Client • RFC 1901 SNMP v1, v2, v3 • RFC 1907 SNMP v2 MIB • RFC 1908 SNMP v1, v2, v3 • RFC 2131 BootP/DHCP Client • RFC 2138 RADIUS Authentication • RFC 2139 RADIUS Authentication • RFC 2233 Interface Group MIB • RFC-2246 SSL • RFC 2475 • RFC 2570 SNMP v1, v2, v3 • RFC 2575 SNMP v1, v2, v3 • RFC 2598 CoS • RFC 2618 RADIUS Authentication • RFC 2819 RMON v1 • RFC 2865 RADIUS Authentication • RFC 3164 System Log • RFC 3195 System Log • RFC 3411-17 SNMP • D-Link Private MIB • LLDP MIB • Zone Defense MIB • 2233 Interface Group MIB OAM • Cable Diagnostics • Factory Reset Management • Web-based GUI • D-Link Network Assistant Utility • Compact CLI • Telnet Server • TFTP Client • Configurable MDI/MDIX • SNMP • Supports v1/v2c/v3 • SNMP Trap • Backup/Upgrade firmware • Smart Wizard • Upload/Download Configuration file • System Log • Max. 500 log entries • BootP/DHCP Client • SNTP • ICMP v6 • IPv4/v6 Dual Stack • DHCP Auto Configuration • Time Setting • SNTP • RMONv1 • Trusted Host Green V3.0 Technology • Power Saving by: • Link Status • Time-based PoE: PoE ports can be turned on/off by port or system through schedule • LED Shutoff • System Hibernation • Port Shutoff Order Information DGS-1210-10 8 Port 10/100/1000 Mbps and 2-port SFP DGS-1210-10P 8 Ports 10/100/1000 Mbps PoE and 2-port SFP DGS-1210-20 16 Port 10/100/1000 Mbps and 4-port SFP DGS-1210-28 24 Port 10/100/1000 Mbps and 4-port SFP DGS-1210-28P 24 Port 10/100/1000 Mbps PoE and 4-port SFP DGS-1210-52P 24 Ports 10/100/1000 Mbps PoE, plus 24 Ports 10/100/1000Mbps and 4-port SFP DGS-1210-52MP 48 Port 10/100/1000 Mbps PoE and 4-port SFP DGS-1210-52 48 Port 10/100/1000 Mbps and 4-port SFP Specifications are subject to change without notice. D-Link is a registered trademark of D-Link Corporation and its overseas subsidiaries. All other trademarks belong to their respective owners. ©2015 D-Link Corporation. All rights reserved. E&OE. DGS-1210 Series Web Smart Switch Optional SFP Transceivers DGS-712 1000BASE-T copper DEM-302S-LX 1000BASE-LX, single-mode, 2 km DEM-302S-BXD/BXU Gigabit WDM transceiver, single-mode, 2 km DEM-310GT 1000BASE-LX, single-mode, 10 km DEM-311GT 1000BASE-SX, multi-mode, 550 m DEM-312GT2 1000BASE-SX, multi-mode, 2 km DEM-314GT 1000BASE-LHX, single-mode, 50 km DEM-315GT 100BASE-ZX, single-mode, 80 km DEM-330T/R Gigabit WDM transceiver, single-mode 10 km DEM-331T/R Gigabit WDM transceiver, single-mode 40 km
