Dataprobe iBoot-G2+ Remote Reboot Device with Expansion-I/O Ports

The Dataprobe iBoot-G2+ is a 10/100 Ethernet network attached, IP addressed, Web Controlled power switch. Anyone with a web browser can access iBoot-G2+ to perform power On, Off or Reboot (timed power shutdown).  The iBoot-GS+ is the offers the same functionality as the iBoot-G2 except it provides additional features to expand its capabilities from the standard iBoot-G2.  The iBoot-G2+ features 2 Expansion-I/O ports that can be used in a variety of ways:

  • Expansion to independent control of three outlets
  • General Purpose I/O independently monitored and controlled
  • Heartbeat Monitor
  • USB Port for direct PC communication for Serial Command Line Interface Access
  • Manual Switch triggers for the Mains Outlet*
  • Graceful Shutdown*
  • SNMP Management*

*Scheduled Features for 2011 Firmware upgrades

Dataprobe iBoot-G2+ Features:
Other than the added features above, the iBoot-G2+ provides the same functionality as the iBoot-G2.

  • Password protected for security
  • For uses international standard IEC320 Connections and is auto sensing for worldwide use.
  • Line cord and Output Cord are included for North America
  • Handles circuits up to 12 Amps (10 Amps at 230VAC).
  • Remote Power Control from your Web Browser- Just point your browser to iBoot’s IP address, enter the Password and you’re one click away from power ON, OFF or a timed Reboot.
  • Automatic Reboot for Crashed Devices- The Auto-Ping feature allows iBoot-G2 to monitor any IP device on the network and take automatic action whenever the device is down.
  • Heartbeat Detect feature allows iBoot-G2 to monitor any server or PC running either the free Heartbeat Generator Program, or heartbeats integrated into your custom software.

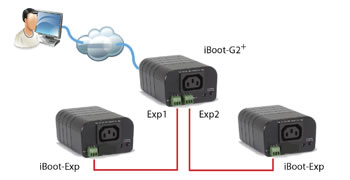

Dataprobe iBoot-G2+ Application Diagram
Dataprobe iBoot-G2+ Application Diagram

Note: The iBoot-Exp units are sold separately.

Dataprobe iBoot-G2+ Specifications:

Mechanical
Height 2 in. (60 mm.)
Width 3.2 in. (82 mm.)
Depth 4.2 in. (107 mm.)
Environmental
Operating Temperature 0 to 50 Deg. C
Power
Operating Voltage 105 – 240 VAC Auto Ranging
Power Switching 12 Amps at 105-125 VAC,
10 Amps at 210-240 VAC
Power Connectors Power Inlet: IEC 320 C13 Plug.
Linecord for North America Included. 16AWGX3C
Power Out: IEC 320 C14 Receptacle.
Extension Cord for N. America Included. 16AWGX3C
Network USB Mini-B Com Port 9600 8 N 1
Protocols IP Addressable. DHCP or Static
HTTP Web Server built-in, Port Assignable
Telnet Server built-in, Port Assignable
DxP Messaging Protocol, Port Assignable
Auto-Ping TCP Protocol
Heartbeat Detector Protocol
External I/O Two Inputs, Two Outputs, Screw Terminal Connections:
  Designator Name Description
  V+ Power Out This is +12 VDC power out from the iBoot-G2+
Maximum current 100 mA
  I Input Input for status signals. Dry Contact input or Open Collector.
  G Ground Signal Ground for Input and Output
  O Output 2N3904 NPN Transistor. 100 mA Maximum
Browser Form Processing Browser Required
Netscape 3.0 or IE 3.0 or greater
Security Dual Password Protected, User and Admin
Reliability MTBF 320,000 Hours
Operating Cycles 10,000,000 Mechanical. 100,000 at Maximum Load
Compliance UL/cUL UL60950
Listed I.T.E File No. E225914
CE Directives 89/336/EEC, 92/31/EEC and 93/68/EEC
RoHS/WEEE
FCC Part 15 Class B



SKU: iBoot-G2+ Categories: , Tags: , ,
Weight 0.454 kg
