Dell PERC 320/DC / Adaptec 2200S LVD U320 SCSI RAID Controller

Add to Wishlist

AED499.00

Add to Wishlist

Dell PERC 320/DC / Adaptec 2200S U320 LVD Dual Channel PCI-X SCSI RAID Controller – Refurbished

Dell PERC 320/DC / Adaptec 2200S U320 LVD Dual Channel PCI-X SCSI RAID Controller – Refurbished

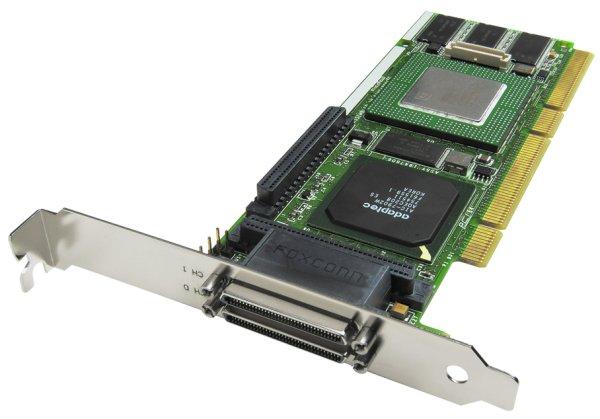

Dell OEM PERC/320 Version with 1x Internal 68pin SCSI connector and 2x VHDCI external connectors.

Low-profile dual-channel Adaptec SCSI RAID 2200S is a 64-bit/66MHz Ultra320 RAID controller designed for mid-range and high-density servers. Advanced features include Adaptec’s optimized disk utilization, Online Capacity Expansion, RAID Level Migration and full OS support. Adaptec Storage Manager provides password-protected, remotely managed software management. The card supports RAID 0, 1, 10, 5, 50, JBOD and accommodates an optionally available battery backup module (ABM-300) for 72-hour cache memory protection.

Alternate Part#: N5694 / 0N5694 / C1902 / 0C1902 / 00X511 / 0X511 / AIC-7902W

SKU: 2200S Category: Tag:
Weight 0.907 kg
Dell PERC 320/DC – Adaptec 2200S
Supported Operating Systems
Microsoft Windows
Novell NetWare
Red Hat Linux
SuSE Linux
SCO Openserver
SCO UnixWare
Caldera Open Unix
Benefits
  Low-profile MD2 design ideal high-density server & workstation solution, 64-bit/66 MHz PCI
Key Differentiators

  • Optimized Disk Utilization
  • RAID Level Migration
  • Online capacity expansion
  • Background initialization (for immediate RAID availability)
  • S.M.A.R.T. and SAF-TE support
  • Hot-swap disk drive support for easy replacement
  • Hot-spare disk support with automatic rebuild
  • Supports bootable arrays
Customer Needs
  Ideal for entry-level to mid-range and high-density servers and workstations requiring up to 30 disk drives
System Environment
  Mid-range SCSI servers and workstations, conventional and rackmount
Cache Memory
64 MByte (onboard)
RAID Levels
0, 1, 10, 5, 50, JBOD
Key RAID Features
Optimized disk utilization
Online RAID Level Migration
Online capacity expansion
Immediate RAID availability (background initialization)
S.M.A.R.T. support
SES/SAF-TE support
Number of devices
Up to 30 SCSI devices (15 per channel)
Bus System Interface Type
64-bit/66MHz PCI
External Connectors
Two 68-pin VHDCI
Internal Connectors
One 68-pin high-density
Data Transfer Rate
Up to 320 MB/sec per channel
System Requirements
Available 5 volt or 3.3 volt, PCI 2.2 compliant PCI slot

Device Support

Up to 30 SCSI devices

Board Dimensions

Low-profile card: 2.5 in. H x 6.6 in. L
6.4 cm H x 16.8 cm L

Power Consumption

4 amps @ +5V

Operating Temperature

0 C to 55 C
