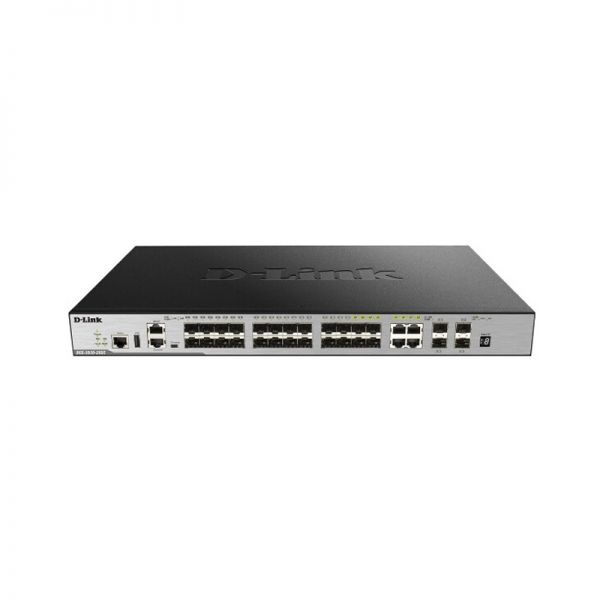

DGS-3630-28TC – D-Link Core Switches

DGS-3630-28TC Specification

10/100/1000BASE-T ports20Combo 10/100/1000BASE-T/SFP ports410G SFP+ ports4RJ-45 and Mini-USB port1RJ-45 Management Port1RJ-45 Alarm port1USB 2.0 port1Switch Capacity128 GbpsMax. Packet Forwarding Rate95.24 MppsStore & Forwarding ForwadingYesDimension441mm x 259.8mm x 44mmOperation Temperature-5-50°CStorage Temperature-40-70°COperation Humidity10%-95% RHStorage Humidity5% ~ 95% RHOperating AltitudeUp to 2000 MMaximum Power Consumption42.4 WStandby Power Consumption28.1 WattMaximum Heat Dissipation144.58 BTU/hMTBF300,190.46 hoursPower InputAC Input: 100 – 240 VAC, 50-60 HzRedundant Power SupplyYesCPU Speed1GHzDRAM Size1GB (Byte)–DDR3Flash Memory Size1GB (Byte)Packet Buffer Size4MBFANYesComply with RoHS 6YesPower Saving By Link StatusYesPower Saving By Cable LengthYesPower Saving By LED Shut-OffYesPower Saving By Port Shut-OffYesPower Saving By System HibernationYesEnergy Efficiency Ethernet (EEE)YesPhysical StackingYesPhysical Stacking Bandwidth80 G (support stacking trunk)Units Per Physical Stack9Units Per SIM Stack32D-Link Single IP Management (SIM)YesMAC Address Table Sizeup to 68K (SRM’s LAN mode)Black Hole MAC AddressYes802.3x Flow ControlYesHead-of-line (HOL) Blocking PreventionYesBPDU FilteringYesRoot GuardYesLoop GuardYes802.1D Spanning Tree (STP)Yes802.1w Rapid Spanning Tree (RSTP)Yes802.1s Multiple Spanning Tree (MSTP)YesMultiple ERPS RingYesG.8032 ERPSYes (Support ERPSv2)Link Aggregation Group Per Device32Max Port Per Link Aggregation Group8802.1AX Link AggregationYes802.3ad Link AggregationYesPort MirroringYesVLAN MirroringYesRSPANYesFlow-based (ACL) mirroringYesJumbo Frame12K BytesL2 Protocol TunnelingYesFlex LinkYesiSCSI AwarenessYesLoopback Detection (LBD)YesIGMP SnoopingYesMax IGMP Snooping Groupsup to 8K (refer to SRM)IGMP Snooping Fast LeaveYesIGMP Proxy ReportingYesIGMP AuthenticationYesIGMP AccountingYesMLD SnoopingYesMLD Snooping Groupsup to 4K (refer to SRM)MLD Snooping Fast LeaveYesMLD Proxy ReportingYesPIM SnoopingYesVLAN Groups4,096Port-based VLANYesMAC-based VLANYesSubnet-based VLANYesVoice VLANYesAuto Surveillance VLANYes (v1.4)GVRPYesSelective Q in QYesVLAN TranslationYesAsymmetric VLANYesPrivate VLANYesSuper VLANYesVLAN trunkingYes802.1Q VLANYes802.1v Protocol-based VLANYesDouble VLAN (Q in Q)YesISM VLAN (Multicast VLAN)YesIP InterfaceYesMax Number of IP InterfaceYesLoopback InterfaceYesNull InterfaceYesARPYesARP Entriesup to 32K (SRM’s IP mode)Gratuitous ARPYesND Entriesup to 16K (SRM’s IP mode)UDP HelperYesIPv6 TunnelingYesIPv6 Neighbor Discovery (ND)YesVRRPYesRouting Table Entry16K (16,384)L3 Forwarding Table Entryup to 32K (SRM’ IP mode)Default RouteYesStatic RouteYesNull RouteYesRoute Preference SettingYesRoute RedistributionYesEqual-Cost Multi-Path Route (ECMP)YesWeighted-Cost Multi-Path Route (WCMP)YesPolicy-based Route (PBR)YesGraceful Restart (GR) HelperYesBidirectional Forwarding Detection (BFD)YesRIPv1YesRIPv2YesRIPngYesOSPFv2YesOSPFv3YesBGP4YesAnnounce on loopback interfaceYesL3 IP Multicast Entryup to 8K (refer to SRM)IGMPv1YesIGMPv2YesIGMPv3YesIGMP ProxyYesLimited IP Multicast (IGMP Filtering)YesMLDv1YesMLDv2YesMLD ProxyYesLimited IP Multicast (MLD Filtering)YesDVMRPv3YesPIM-DMYesPIM-DM v6YesPIM-SMYesPIM-SM v6YesPIM-SSMYesPIM Sparse-Dense Mode (PIM-SDM)YesMulticast Source Discovery Protocol (MSDP)YesVRF-LiteYesNumber of Queue8Class of Service (CoS)YesTwo Rate Three Color Marker (trTCM)YesSingle Rate Three Color Marker (srTCM)YesRate LimitingYesTime based QoSYes (based on ACL)Remark 802.1p priorityYesRemark ToS/DSCPYes (Support remark IP precedence/DSCP)Queue HandlingYesStrict Priority Queue (SPQ)YesWeighted Round Robin (WRR)YesWeighted Deficit Round Robin (WDRR)YesSPQ + WRRYesWeighted Random Early Detection (WRED)Yes802.1Qbb Priority-based Flow Control (PFC)Yes (only for 10G port)Port-based Bandwidth ControlYesFlow-based bandwidth ControlYesQueue-based Bandwidth ControlYesMAC Access ListYesIP Access ListYesIPv6 Access ListYesTime based ACLYesCPU Interface FilteringYesMax Access Control List (ACL) Entries3072SSHYesSSLYesPort SecurityYesTraffic SegmentationYesIP Source GuardYesDHCP SnoopingYesIPv6 SnoopingYesDHCPv6 GuardYesIPv6 ND InspectionYesD-Link Safeguard EngineYesL3 Control Packet FilteringYesDHCP Server ScreeningYesDHCP Client FilteringYesARP Spoofing PreventionYesBPDU Attack ProtectionYesDoS Attack PreventionYesBroadcast/Multicast/Unicast Storm ControlYesIP-MAC-Port Binding (IMPB)YesDynamic ARP Inspection (DAI)YesIPv6 Route Advertisement (RA) GuardYesDuplicate Address Detection (DAD)YesNetBIOS/NetBEUI filteringYesPort based WAC AuthenticationYesHost based WAC AuthenticationYesIdentity Driven WAC Policy AssignmentYesPort based MAC AuthenticationYesHost based MAC AuthenticationYesIdentity Driven MAC Policy AssignmentYesCompound AuthenticationYesGuest VLANYesAuthentication for Management AccessYesPrivilege Level for Management AccessYesRADIUSYesRADIUS AccountingYesAuthentication Database FailoverYesTrusted HostYes (via ACL)802.1XYesPort based 802.1X AuthenticationYesHost based 802.1X AuthenticationYesIdentity Driven 802.1X Policy AssignmentYesWeb-based Access Control (WAC)YesMAC-based Access Control (MAC)YesMicrosoft® NAP SupportYesTACACS+YesTACACS+ AccountingYesCable DiagnosticsYesDying GaspYes802.3ah Ethernet Link OAMYesD-link Unidirectional Link Detection (DULD)Yes802.1ag Connectivity Fault Management (CFM)YesY.1731 OAMYesOptical Transceiver Digital Diagnostic Monitoring (DDM)YesNetwork Time Protocol (NTP)YesPrecision Time Protocol (PTP)YesWeb-based GUIYesTelnet ServerYesTelnet ClientYesSNMPYesSNMP TrapYesTFTP ClientYesFTP ClientYesZModemYesSystem LogYes (RFC3164 only)
