UPS , Power Back up and accessories

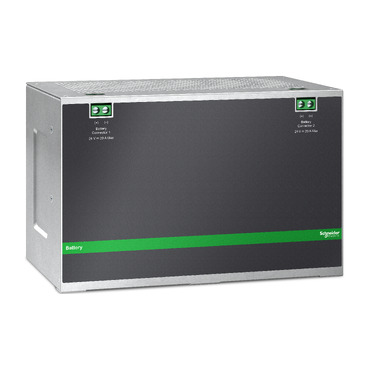

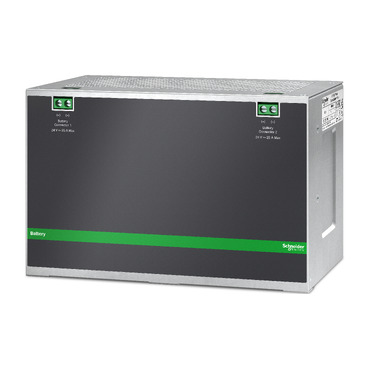

Easy UPS battery module, 24V DC-DC, DIN Rail, Industrial, 4.5Ah
- Connect up to 4 external battery packs
- Allows for additional runtime during extended power outages
- Compatible with Easy UPS BVS-PDR
AED999.00
The Industrial UPS 24V DC DIN Rail is a part of the Schneider Electric’s Easy UPS family. The XB005XPDR is an external battery pack designed for the BVS240XDPDR and BVS480XDPDR Industrial UPS models. It allows for daisy chaining of up to a total of 4 battery packs. It offers 10 mins of runtime at 10A of load and 5 mins of runtime at 20A load.
Product Overview
| Attribute | Value |
|---|---|
| Lead Time | |
| Usually in Stock | |
| Main | |
| Main Input Voltage | 24 V DC |
| Product or Component Type | Battery module |
| Main Output Voltage | 24 V DC |
| Battery Type | VRLA |
| Provided Equipment | User Manual |
Batteries & Runtime
| Attribute | Value |
|---|---|
| Battery Location | Battery Cabinet |
| Device Mounting | DIN rail |
| Battery Voltage | 24 V |
Physical Characteristics
| Attribute | Value |
|---|---|
| Color | Metal grey |
| Height | 5.08 in (129 mm) |
| Width | 7.6 in (192 mm) |
| Depth | 4.7 in (119 mm) |
| Product Weight | 9.9 lb (4.5 kg) |
| Mounting Preference | No preference |
| USB Compatible | No |
Output
| Attribute | Value |
|---|---|
| Battery Capacity | 4.5 Ah |
Conformance
| Attribute | Value |
|---|---|
| Standards | IEC 62368-1 |
| Product Certifications | CE, TÜV |
Environmental
| Attribute | Value |
|---|---|
| Ambient Air Temperature (Operation) | 5…122 °F (-15…50 °C) |
| Operating Altitude | 0…9842.52 ft (0…3000 m) |
| Relative Humidity (Operation) | 0…95 % |
| Ambient Air Temperature (Storage) | 5…158 °F (-15…70 °C) |
| Storage Altitude | 0…9842.5 ft (0…3000 m) |
| Storage Relative Humidity | 0…95 % |
