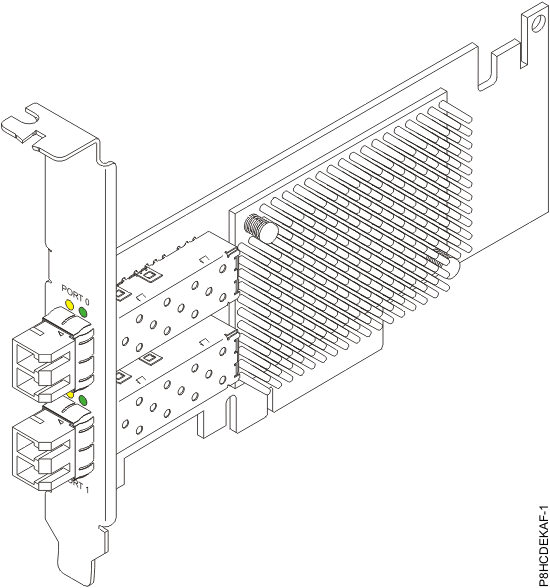

Emulex LPE16002B Dual-port 16 Gb Fibre Channel Card PCIe3.0 adapter

16gb Dual Port Pci Express 3.0 Fibre Channel Host Bus Adapter With Standard Bracket

Part Number : Lpe16002b-e
Manufacturer : Emulex

Technical Features :

General :

• Device Type : Host Bus Adapter
• Form Factor : Plug-in Card
• Interface (bus) Type : Pci Express 3.0 X8
• Pci Specification Revision : Pcie 3.0

Networking :
• Ports : 16gb Fibre Channel X 2
• Connectivity Technology : Wired
• Data Link Protocol : 16gb Fibre Channel (sw)
• Fibre Channel : Fc-al, Fc-al-2, Fc-da, Fc-fla, Fc-fs, Fc-gs-2, Fc-gs-3, Fc-gs-4, Fc-mi, Fc-ph, Fc-ph-2,
fc-ph-3, Fc-pi, Fc-plda, Fc-sb-2, Fc-tape, Fc-sp, Fcp-4, Fcp, Fcp-2, Fc-pi-2, Fc-fs-2, Fc-gs-5, Fc-pi-4,
fc-gs-6, Fc-hba, Fc-pi-5, Fc-ls-2, Fc-sp-2, Fc-mjs, Fc-sb-4, Rfc2625, Ssc-2, Sbc-2, Spc-3
• Data Transfer Rate : 14.025 Gbps
• Max Transfer Distance : 410 Ft
• Remote Management Protocol : Smi-s, Cli
• Features : Auto-negotiation, Manageable, Firmware Upgradable, Extended Message-signaled Interrupts (msi-x),
vengine, Greenstate, Blockguard, Vscale

Expansion / Connectivity :

• Expansion Slots : 2 (total) / 0 (free) X Sfp+
• Interfaces : 2 X 16gb Fibre Channel (short Wave) – Lc Multi-mode X 2

System Requirements :

Os Required : Sunsoft Solaris, Linux, Microsoft Windows Server

Dimensions :

• Depth : 6.6 In
• Height : 2.7 In
