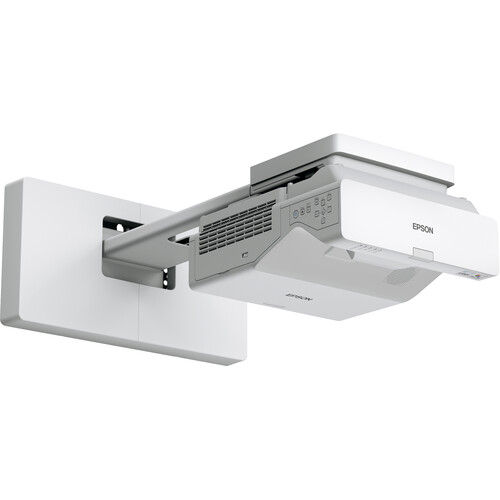

Epson BrightLink 760Wi 4100-Lumen WXGA Ultra-Short Throw Interactive Laser 3LCD Smart Projector

Add to Wishlist
Key Features
  • Color & White Brightness of 4100 Lumens
  • WXGA (1280 x 800) Native Resolution
  • 0.27 to 0.37:1 Throw Ratio
  • 8-User Dual-Pen Interactivity
  • Works with New & Existing Touch Modules
  • Up to 100″ Image Size
  • Miracast Screen Mirroring
  • Auto Image Alignment/Pen Calibration
  • Built-In 16W Mono Speaker
  • 2 x Pens & Remote Control Included

AED11,299.00

Add to Wishlist

Turn any classroom wall or whiteboard into an interactive display when using the Epson BrightLink 760Wi 4100-Lumen WXGA Ultra-Short Throw Interactive Laser 3LCD Smart Projector in conjunction with an optional touch module. The 760Wi supports existing modules for both the BrightLink 595Wi and 695Wi. When mounted above your whiteboard or wall, the 3-chip 3LCD technology uses laser light to project a bright 4100-lumen 16:10 image up to 100″ in size. The resulting image is large enough for up to 8 users to collaborate at once with dual pen-enabled interactivity. With automatic image alignment and pen calibration, you can be up and running in a new classroom quickly.

PC-Free Digital Whiteboard
Without a PC, you can view shared whiteboard content with other BrightLink 1480 Series displays, and you can draw, save, print, and email your own BrightLink 760Wi-created content.
Share Content Wirelessly
With support for Wi-Fi 5 (802.11ac) connectivity and Miracast technology, you can use the Epson iProjection software to wirelessly share content to and from up to 50 compatible connected devices.
Additional Features
  • 1-Year free trial of BrightLink GoBoard collaborative whiteboard software
  • Up to six points of finger touch
  • Wired PC connection
  • Automatic or manual calibration
  • Built-in 16W mono speaker
  • Up to 1.35x digital zoom
  • Supports Microsoft Office 365 and Google Workspace
SKU: V11HA80020 Category: Tag:
Display System
3-Chip LCD
Native Resolution
1280 x 800
Maximum Brightness
White: 4100 Lumens
Color: 4100 Lumens
Throw Ratio
0.27 to 0.37:1
Projection Size
68 to 100″ / 1.7 to 2.5 m
HDR Support
No,
Inputs/Outputs
3x HDMI Audio, Video Input
1x RCA (Composite) Video Input
3x 1/8″ / 3.5 mm Mini Audio Input
1x 1/8″ / 3.5 mm Mini Audio Output
1x 1/8″ / 3.5 mm Mini Microphone Input
1x USB-A Data
1x USB-A LAN
2x USB-B Data
1x DE-15/DB-15 (VGA) Video Input
1x DE-15/DB-15 (VGA) Video Output
1x RJ45 LAN
1x 1/8″ / 3.5 mm Mini Control Input
1x 1/8″ / 3.5 mm Mini Control Output
1x DE-9/DB-9 (RS-232) Control Input/Output
1x Proprietary Service
Light Source
Laser Phosphor
Image Display
Display System
3-Chip LCD
Native Resolution
1280 x 800
Maximum Brightness
White: 4100 Lumens
Color: 4100 Lumens
Aspect Ratio
Native: 16:10
Supported: 16:9
Supported: 4:3
Dynamic Contrast Ratio
2,500,000:1
Color Depth
10-Bit (1.07 Billion Colors)
Lens
Includes Lens
Yes
Focus
Manual
Aperture
f/1.6
Focal Length
3.7mm
Throw Distance
15.4 – 23.6″ / 39.1 – 59.9 cm
Throw Ratio
0.27 to 0.37:1
Projection Size
68 to 100″ / 1.7 to 2.5 m
Features
Keystone Correction
Manual to Vertical: ± 3°
Manual to Horizontal: ± 3°
HDR Support
No,
Digital Zoom
1.35x
Multi-Input Support (PIP/PBP)
Not Specified by Manufacturer
Built-In Speaker
Yes (Mono)
Speaker Power
16 W
Input/Output Connectors
Inputs/Outputs
3x HDMI Audio, Video Input
1x RCA (Composite) Video Input
3x 1/8″ / 3.5 mm Mini Audio Input
1x 1/8″ / 3.5 mm Mini Audio Output
1x 1/8″ / 3.5 mm Mini Microphone Input
1x USB-A Data
1x USB-A LAN
2x USB-B Data
1x DE-15/DB-15 (VGA) Video Input
1x DE-15/DB-15 (VGA) Video Output
1x RJ45 LAN
1x 1/8″ / 3.5 mm Mini Control Input
1x 1/8″ / 3.5 mm Mini Control Output
1x DE-9/DB-9 (RS-232) Control Input/Output
1x Proprietary Service
HDCP Support
Not Specified by Manufacturer
Hardware
Mobile App Compatible
No
Wireless LAN / Wi-Fi
Yes, Built-in
Bluetooth
Yes
General
Light Source
Laser Phosphor
Expected Lamp Life
Full Brightness: 20,000 Hours
Fan Noise
Low Brightness: 27 dB
Medium Brightness: 37 dB
Security
Cable Lock Slot
Password Protection
Security Bar
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Full Brightness: 277 W
Low Brightness: 214 W
Standby Mode (Lamp Off): 0.5 W
Certifications
RoHS
Operating Temperature
41 to 104°F / 5 to 40°C
Dimensions (W x H x D)
14.1 x 5.3 x 15.6″ / 35.8 x 13.5 x 39.6 cm (Excluding Feet)
Weight
13.2 lb / 6 kg
Packaging Info
Package Weight
19.37 lb
Box Dimensions (LxWxH)
19.1 x 18.8 x 12.4″
